P1665

CIRCUIT DESCRIPTION
The fuel level sensor changes resistance based on fuel level. The PCM monitors the signal circuit of the fuel level sensor in order to determine fuel level. When the fuel tank is full, the sensor resistance is high and the PCM senses a high signal voltage. When the fuel tank is empty, the sensor resistance is low and the PCM senses a low signal voltage. The PCM uses the signal circuit of the fuel level sensor in order to calculate the total remaining fuel percentage in the tank. The PCM sends the fuel level percentage via the fuel level signal circuit to the instrument cluster in order to control the fuel gage.

The PCM sets this DTC if the fuel level signal circuit to the IPC becomes open or shorted to ground.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC
The PCM detects that the signal circuit is low for more than 5 seconds.

ACTION TAKEN WHEN THE DTC SETS
The PCM records the operating conditions at the time the diagnostic fails. The PCM stores the failure information in the Failure Records on the scan tool.

CONDITIONS FOR CLEARING THE DTC
^ The DTC becomes history when the conditions for setting the DTC are no longer present.
^ The history DTC clears after 40 malfunction free warm-up cycles.
^ The PCM receives the clear code command from the scan tool.

DIAGNOSTIC AIDS
Use the Freeze Frame and/or Failure Records data in order to locate an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data may aid in determining the number of miles since the DTC set. The Fail Counter and Pass Counter can also aid in determining the number of ignition cycles that the diagnostic reported a pass and/or fail. Operate the vehicle within the same freeze frame conditions (RPM, engine load, vehicle speed, temperature, etc.). This will isolate when the DTC failed.

Refer to Testing for Intermittent and Poor Connections in Diagrams.

TEST

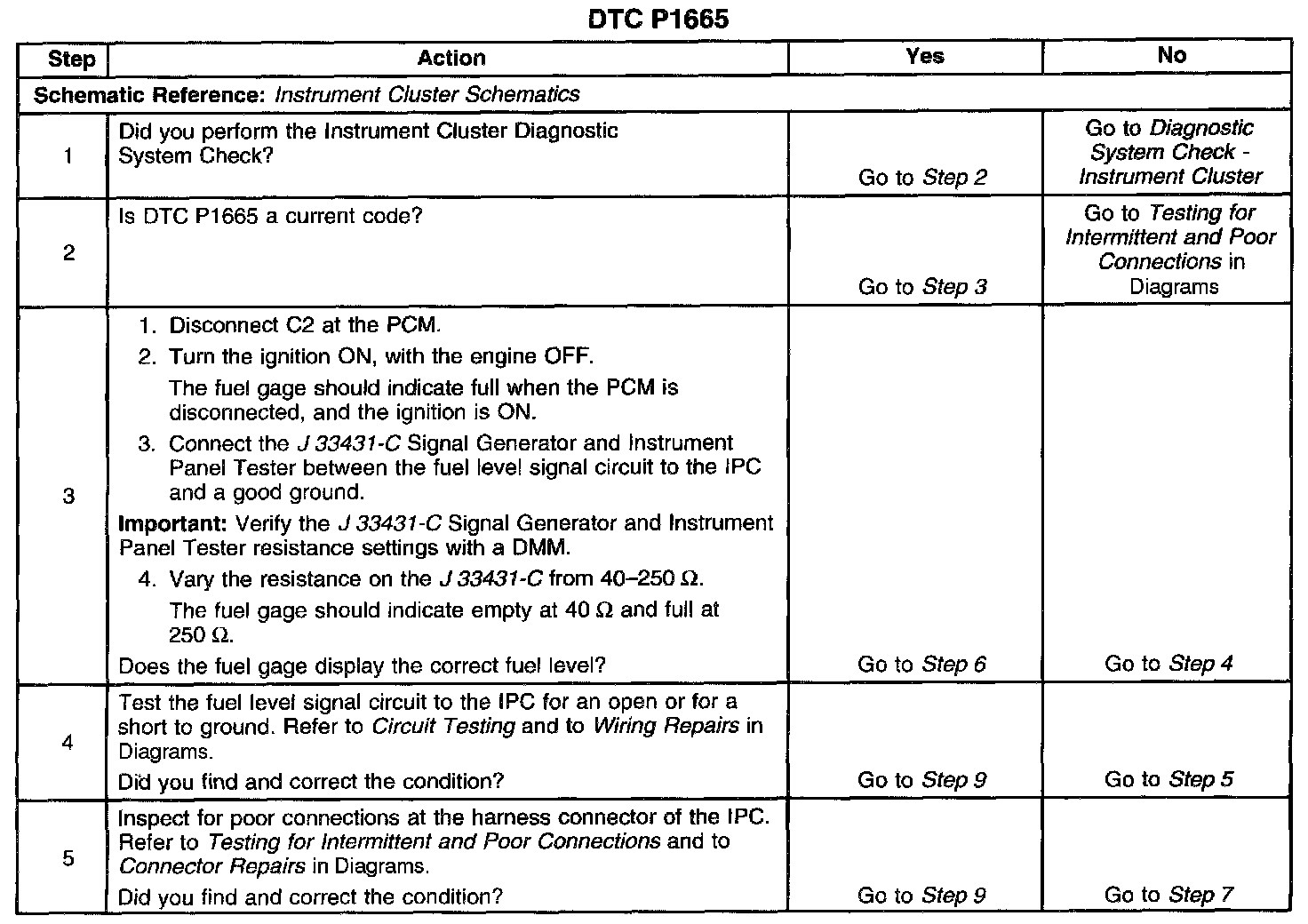

Steps 1-5:

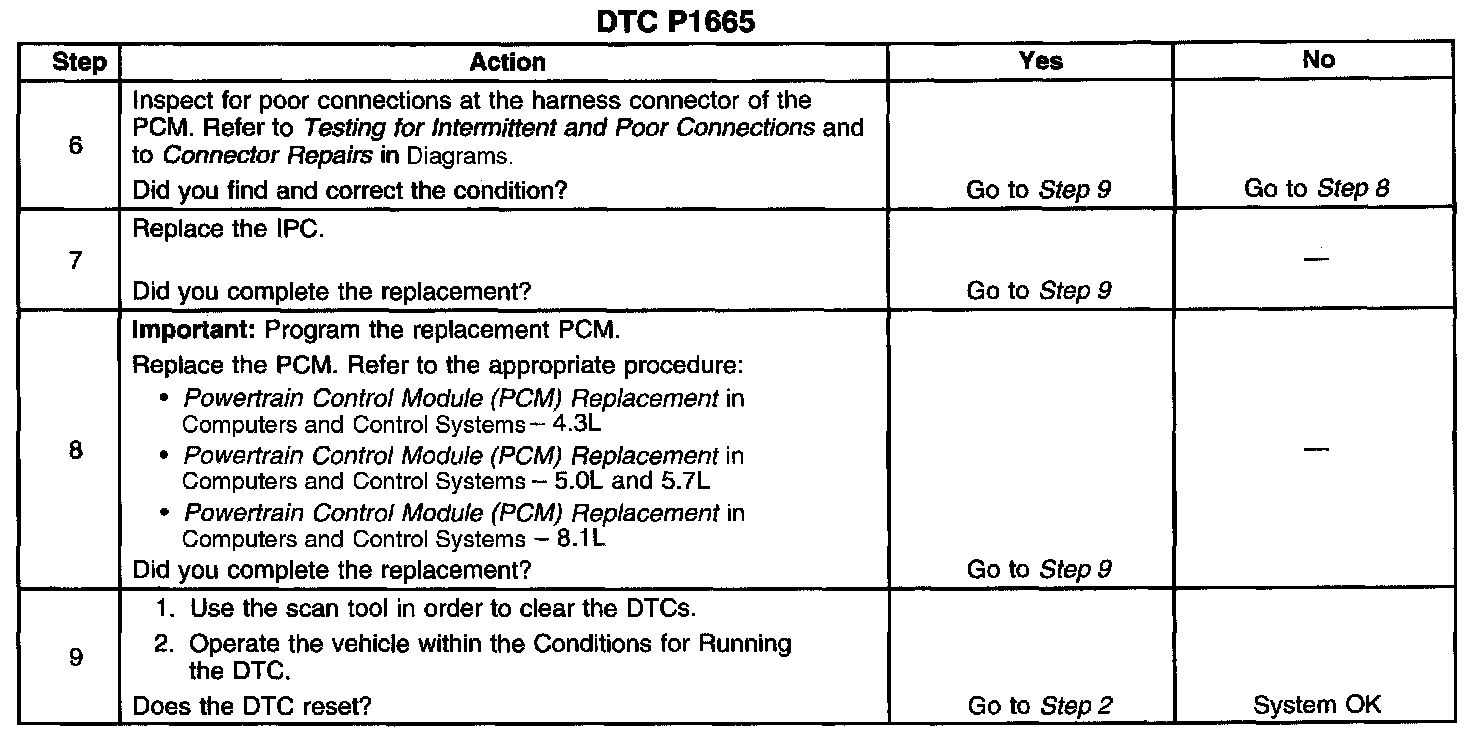

Steps 6-9:
