P0446

DESCRIPTION
A restricted or blocked Evaporative Emission (EVAP) vent path is detected by the control module commanding the purge valve ON (open) and the vent valve ON (closed) allowing a vacuum to be applied to the EVAP system. Once a calibrated vacuum level has been reached, the control module commands the purge valve OFF (closed) and the vent valve OFF (open) while monitoring the Fuel Tank Pressure (FTP) sensor for a decrease in vacuum. If the vacuum does not decrease to near 0 inches H2O in a calibrated time, DTC P0446 will set.

CONDITIONS FOR RUNNING THE DTC
^ DTCs P0107, P0108, P0112, P0113, P0117, P0118, P0121, P0122, P0123, P0125, P0440, P0442, P0443, P0449, P0452, P0453, P1111, P1112, P1114, P1115, P1121, or P1122 are not set.
^ The system voltage is between 10-18 volts.
^ The startup Engine Coolant Temperature (ECT) is between 4-30°C (39-86°F).
^ The startup Intake Air Temperature (IAT) is between 4-30°C (39-86°F).
^ The start up ECT and IAT are within 9°C (16°F) of each other.
^ The fuel tank level is between 30-85 percent.
^ The Barometric Pressure (BARO) is more than 75 kPa.
^ The Vehicle Speed Sensor (VSS) is less than 121 km/h (75 mph).

CONDITIONS FOR SETTING THE DTC
^ Fuel tank pressure is less than -10 in. H2O.
^ The condition is present for 30 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame/Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the Malfunction Indicator Lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Use a scan tool in order to clear the MIL and the DTC.

DIAGNOSTIC AIDS
An intermittent condition could be caused by a damaged EVAP vent housing, a temporary blockage at the EVAP vent valve inlet or a pinched vent hose. A blockage in the vent system will also cause a poor fuel fill problem.

TEST DESCRIPTION

Steps 1-9:

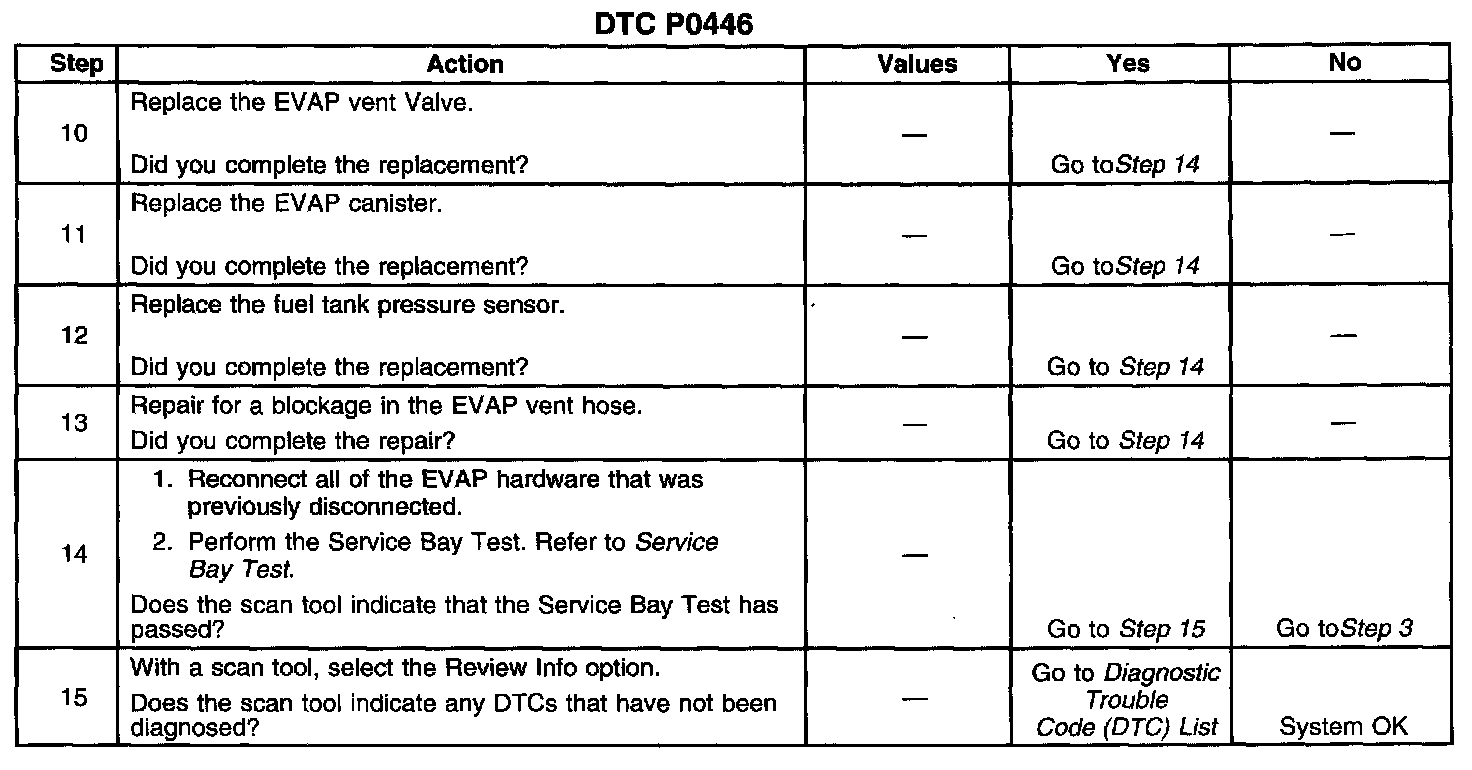

Steps 10-15:

The number below refers to the step number on the diagnostic table.
4. This test determines if the failure is present or intermittent.
