C0559

CIRCUIT DESCRIPTION
This DTC indicates a PASSLOCK(TM) Module internal memory failure.

CONDITIONS FOR SETTING THE DTC
All of the following conditions must be met:
^ The ignition switch is ON.
^ An internal error detection diagnostic found a failure in the module memory.

DIAGNOSTIC AIDS
The memory portion of the PASSLOCK(TM) Module is not replaceable. If DTC C0559 is set, the PASSLOCK(TM) Module must be replaced.

TEST

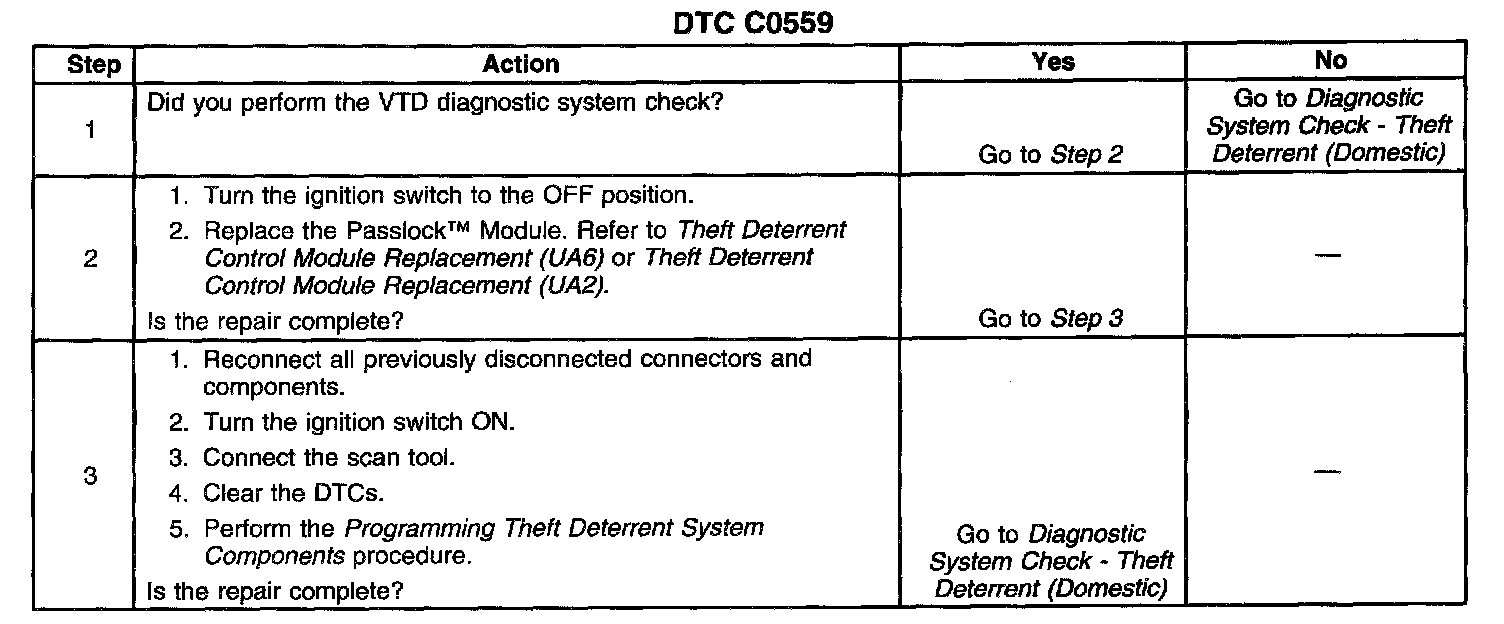

Steps 1-3:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
