B2948

CIRCUIT DESCRIPTION
The PASSLOCK system is provided in order to prevent vehicle theft if the ignition lock cylinder is forced to rotate or the ignition switch is operated while separated from the ignition lock cylinder case. The PASSLOCK module provides security system sensor power and low reference for the PASSLOCK sensor, the PASSLOCK module also measures the security system sensor voltage. When the correct key is used to start the vehicle, a magnet on the lock cylinder passes close to the PASSLOCK sensor within the ignition lock cylinder case. The magnet activates the security hall effect sensor in the PASSLOCK sensor which completes a circuit from the security sensor signal circuit through a resistor to the security sensor low reference circuit. The resistance value will vary from vehicle to vehicle. The PASSLOCK module will measure the voltage on the security sensor signal circuit and compare this voltage to a previously learned voltage. If the voltage measured is within the valid range, the PASSLOCK module will send a class 2 message to the Powertrain Control Module (PCM) to enable vehicle starting. If the voltage measured is not within the valid range, a class 2 message will be sent to the PCM to disable starting of the vehicle.

CONDITIONS FOR SETTING THE DTC
^ The ignition switch is in the OFF position.
^ The PASSLOCK module turns the sensor power OFF when the ignition switch is turned OFF.
^ During the 0.1 second shut down of voltage, if the PASSLOCK module senses battery voltage the DTC will set.

ACTION TAKEN WHEN THE DTC SETS
^ The vehicle will continue to start and run with the security indicator ON.
^ The PASSLOCK module stores DTC B2948 in memory.
The vehicle will continue to start and run with the security indicator ON.

CONDITIONS FOR CLEARING THE DTC
^ The DTC changes from current to history once an ignition cycle occurs without the fault recurring.
^ The PASSLOCK module history codes will clear after 100 concurrent ignition cycles occur without the fault recurring.
^ Use a scan tool in order to clear history and current DTCs.

DIAGNOSTIC AIDS
^ Use a scan tool in order to inspect the PASSLOCK(TM) module data voltage and the PASSLOCK(TM) module code.
^ Inspect the PASSLOCK module sensor harness for an intermittent or a short to battery. Refer to Testing for Intermittent and Poor Connections in Diagrams.

TEST DESCRIPTION

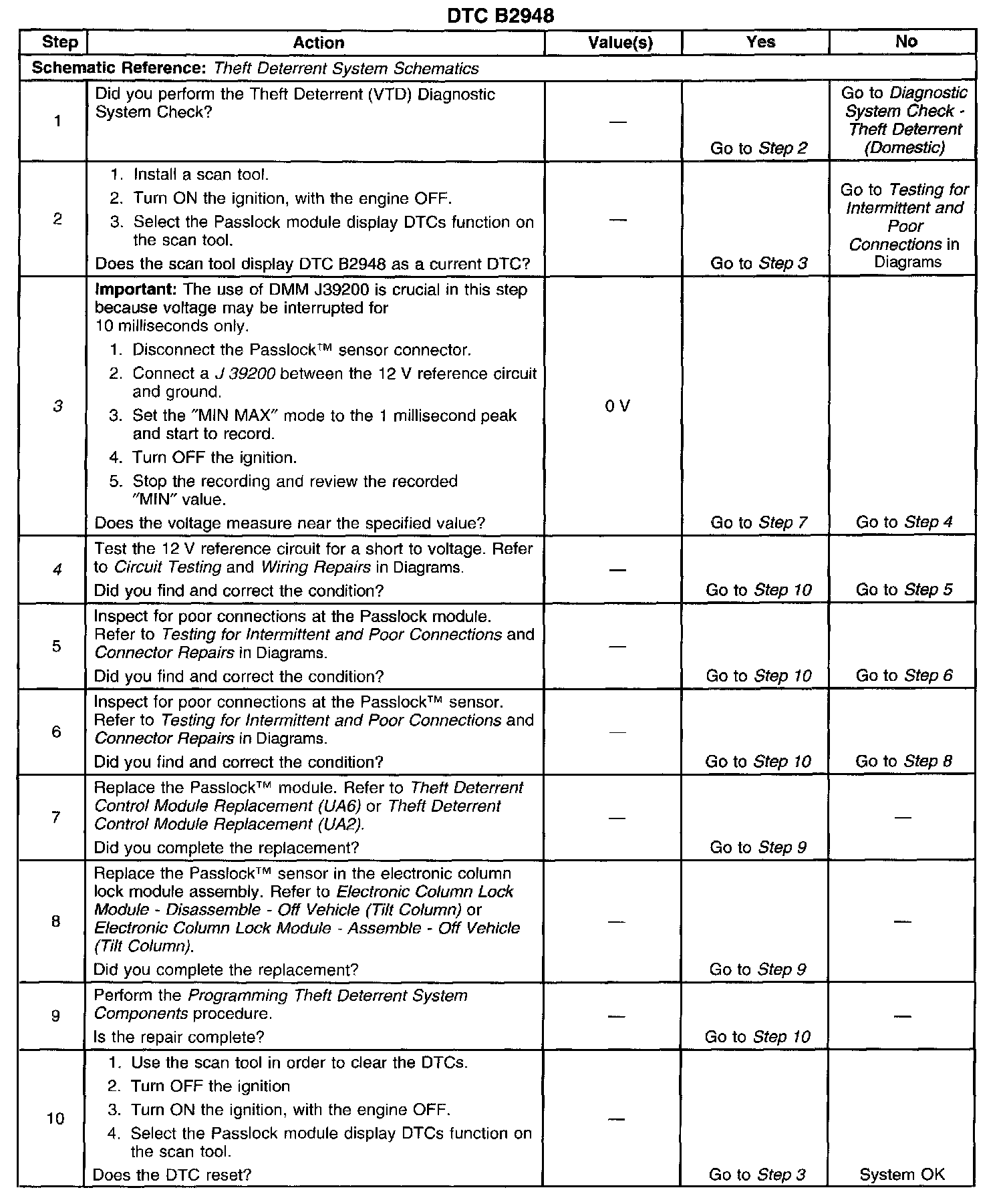

Steps 1-10:

The numbers below refer to the step numbers on the diagnostic table.
3. Tests for the proper operation of the PASSLOCK battery voltage circuit.
4. Tests for a short to voltage in the PASSLOCK battery voltage circuit.
