Home >> Chevy Truck >> 2001 >> Express 1/2 Ton Van V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

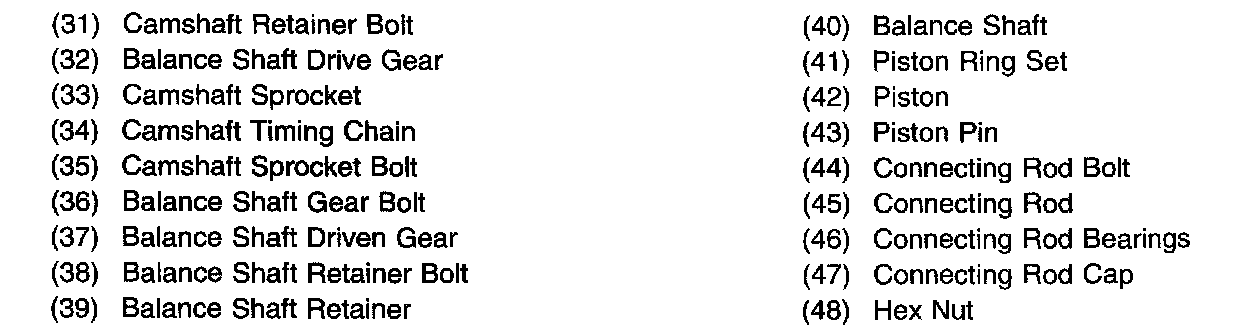

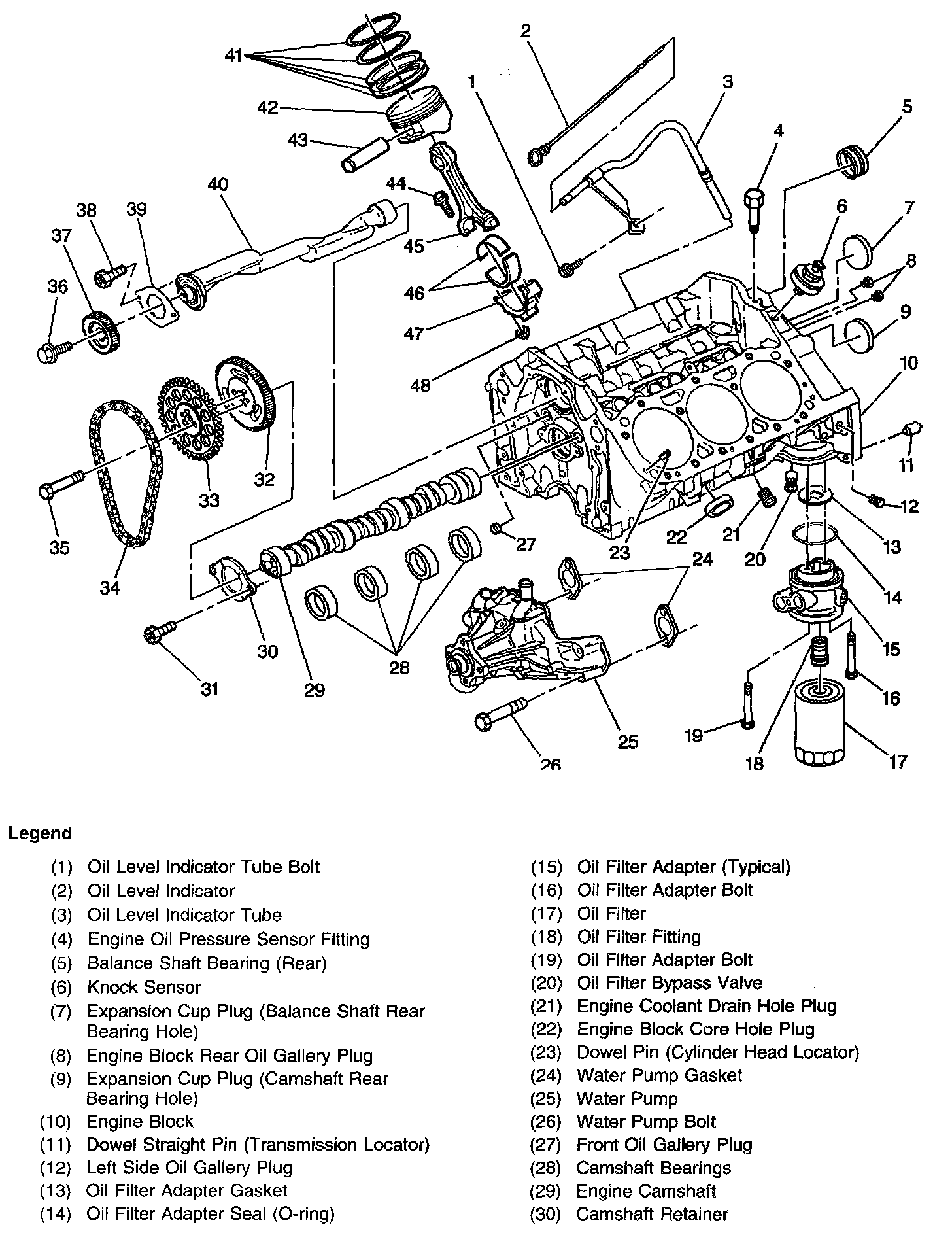

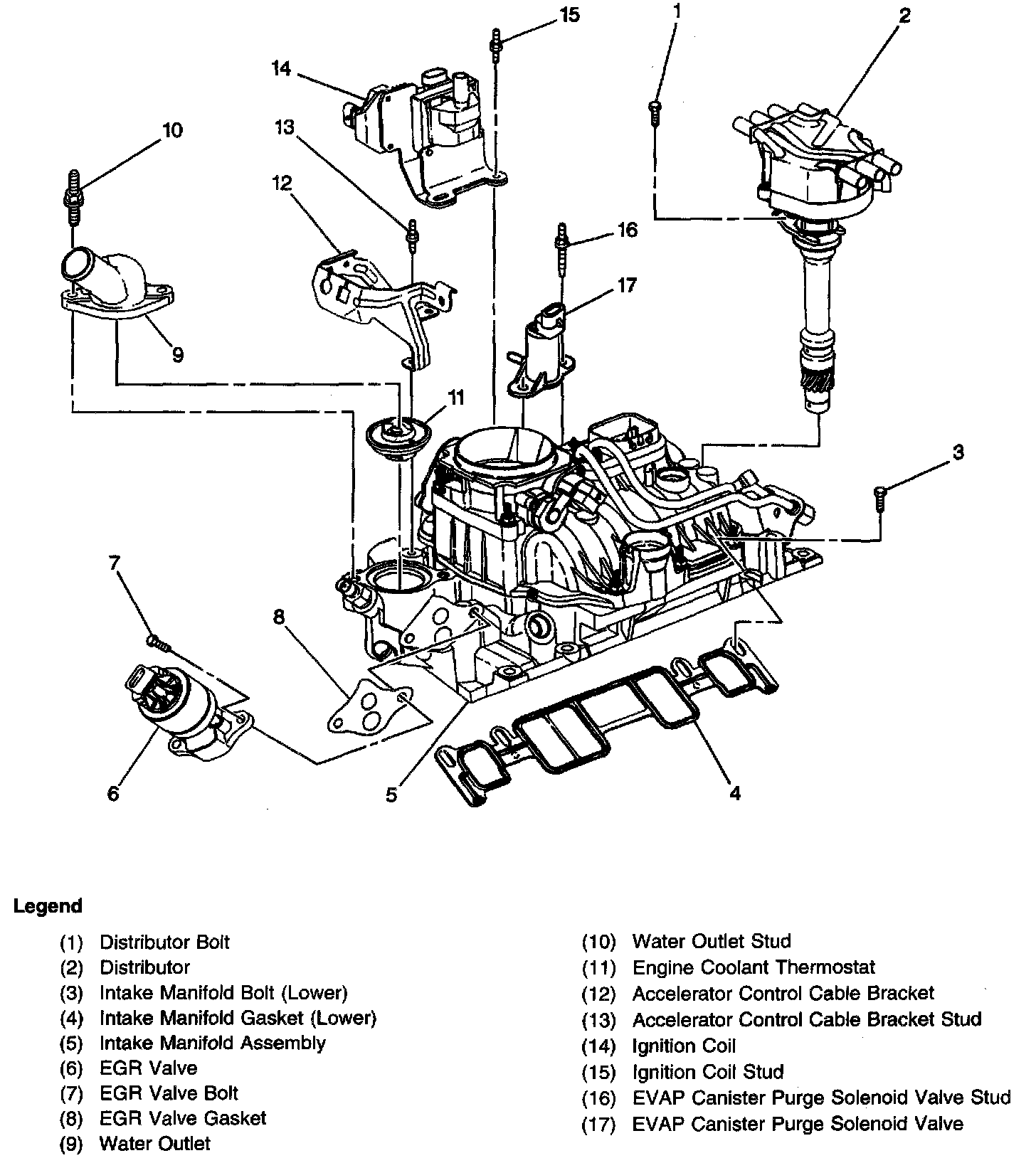

Upper Engine View 1

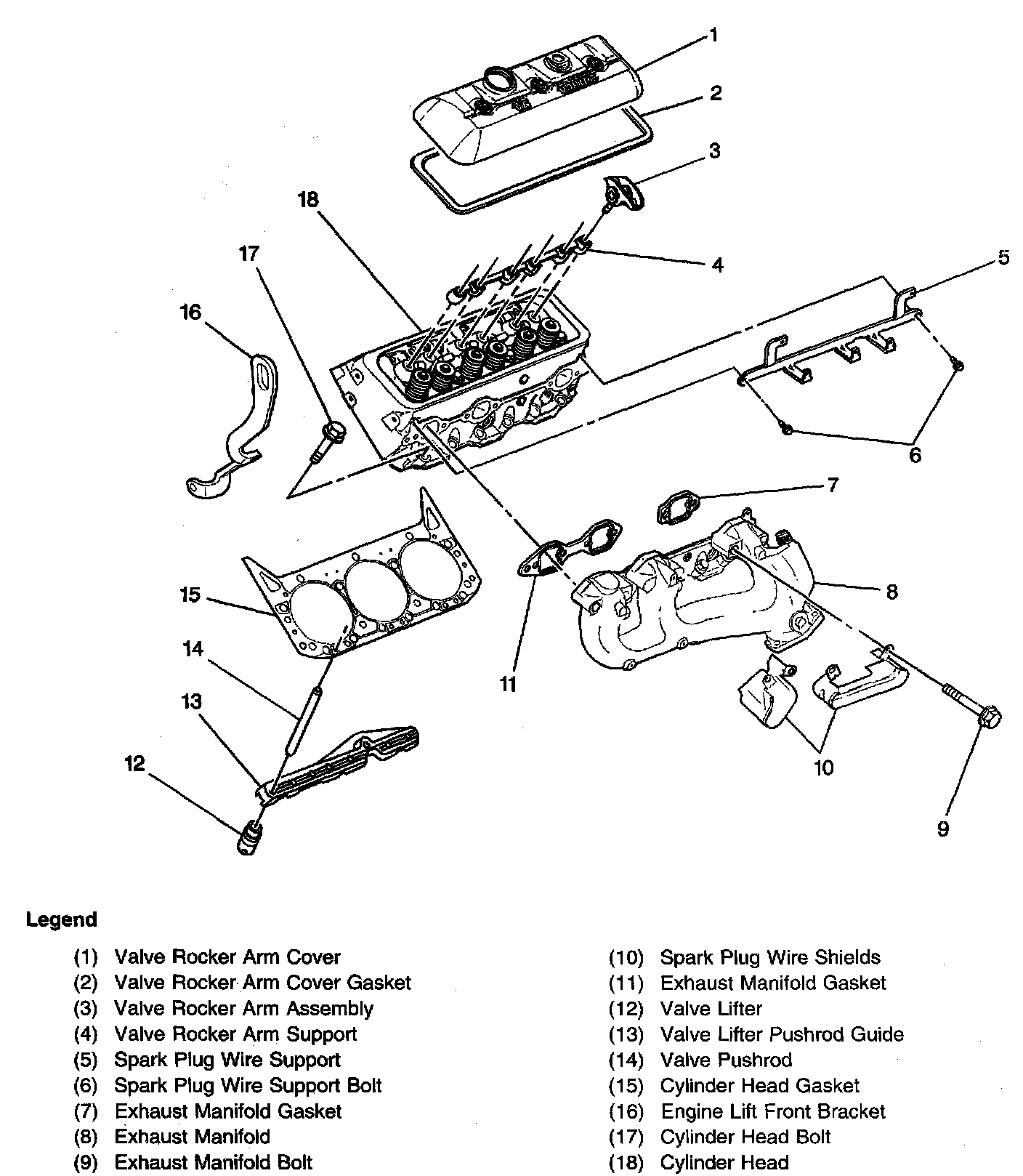

Upper Engine View 2

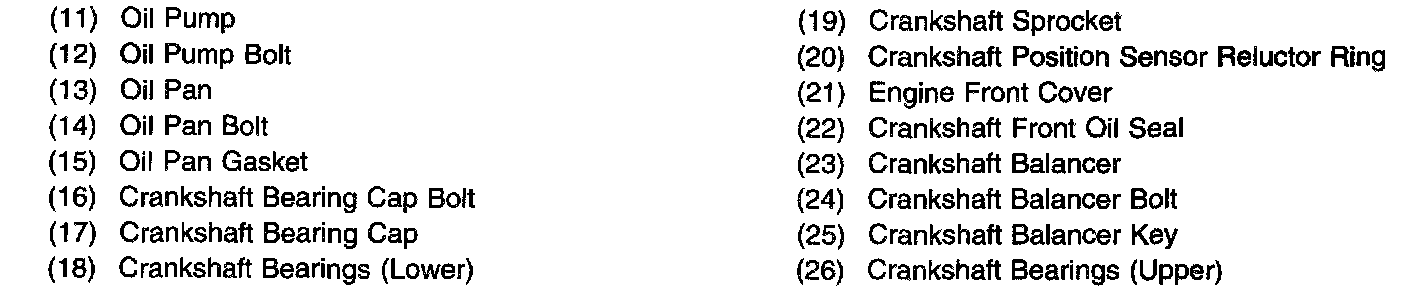

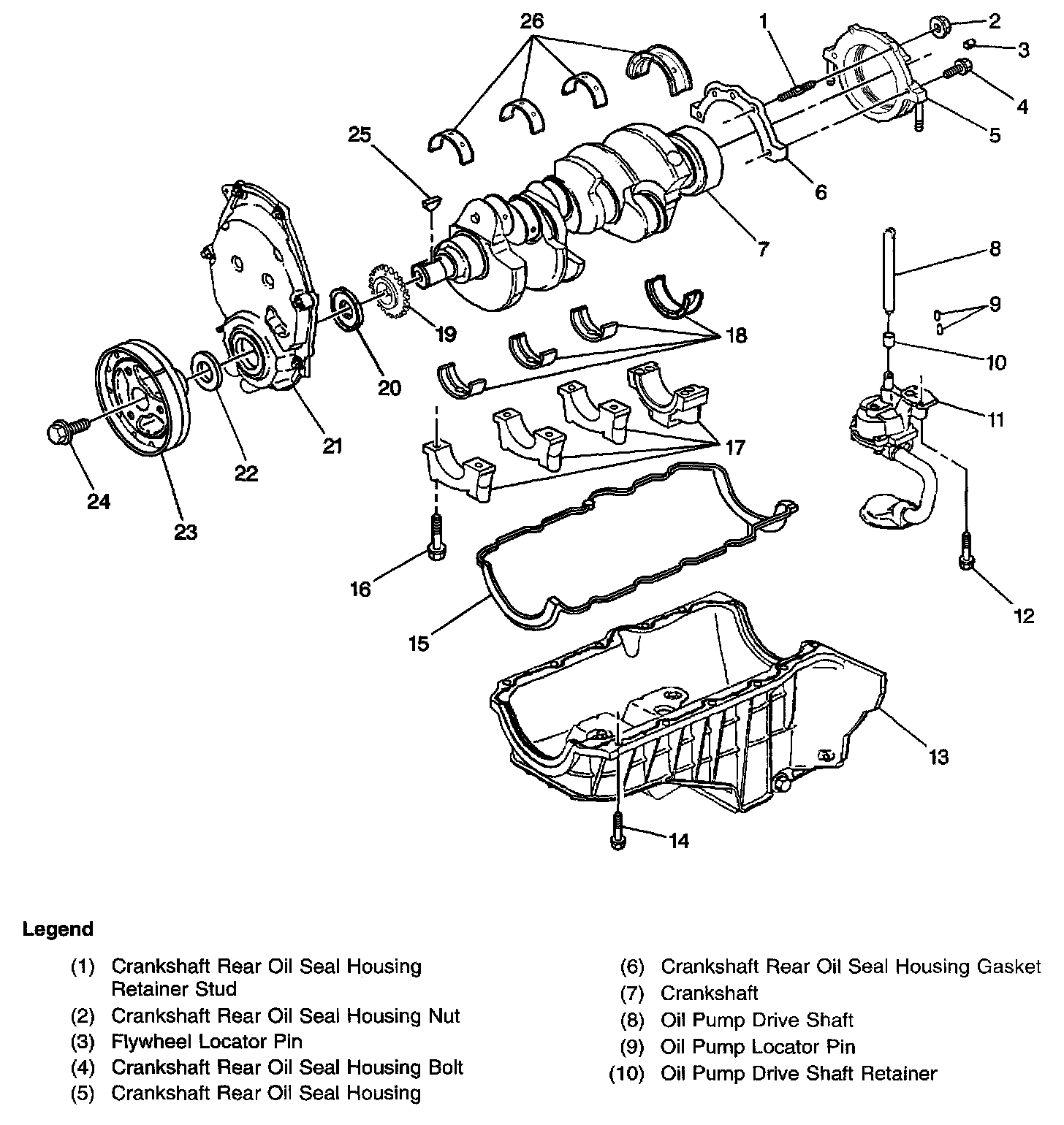

Lower Engine View 1








Lower Engine View 2
