Door Switch: Diagrams

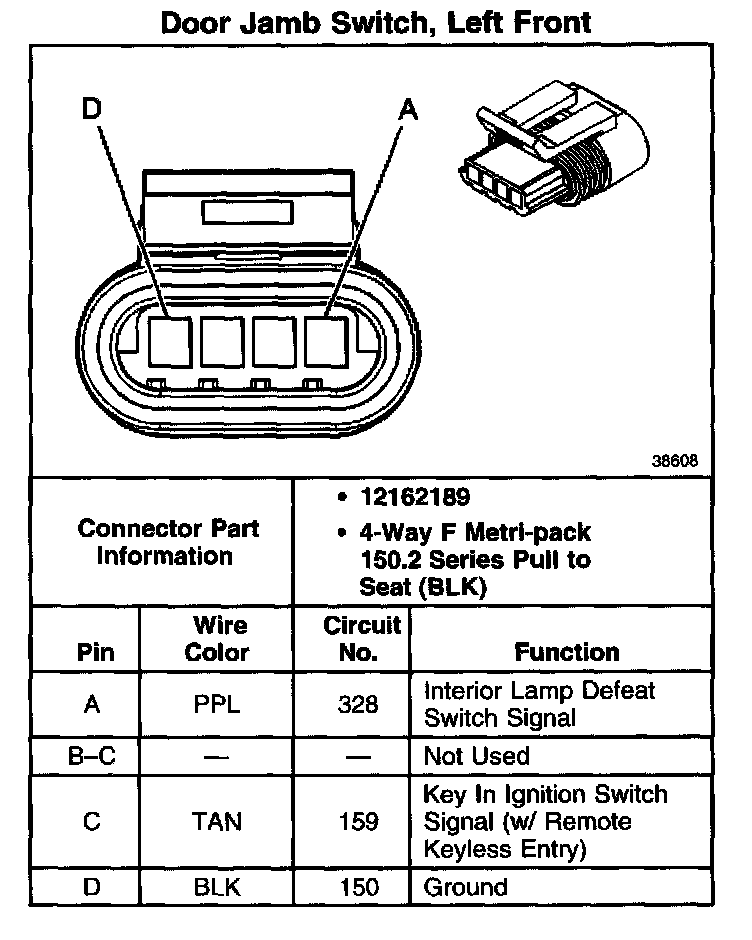

Door Jamb Switch, Left Front:

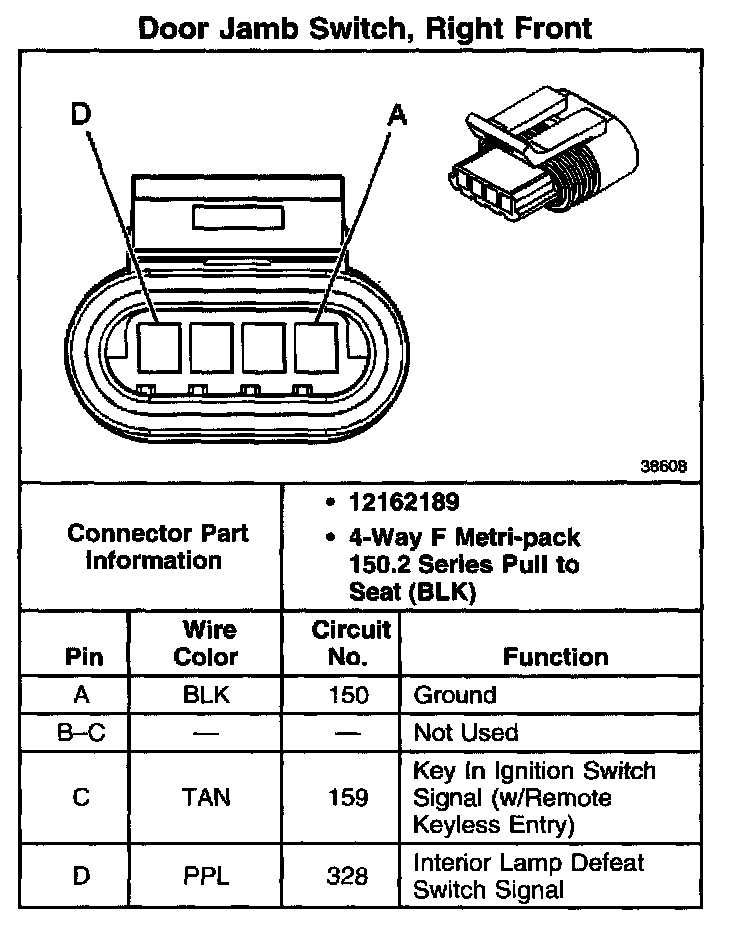

Door Jamb Switch, Right Front:

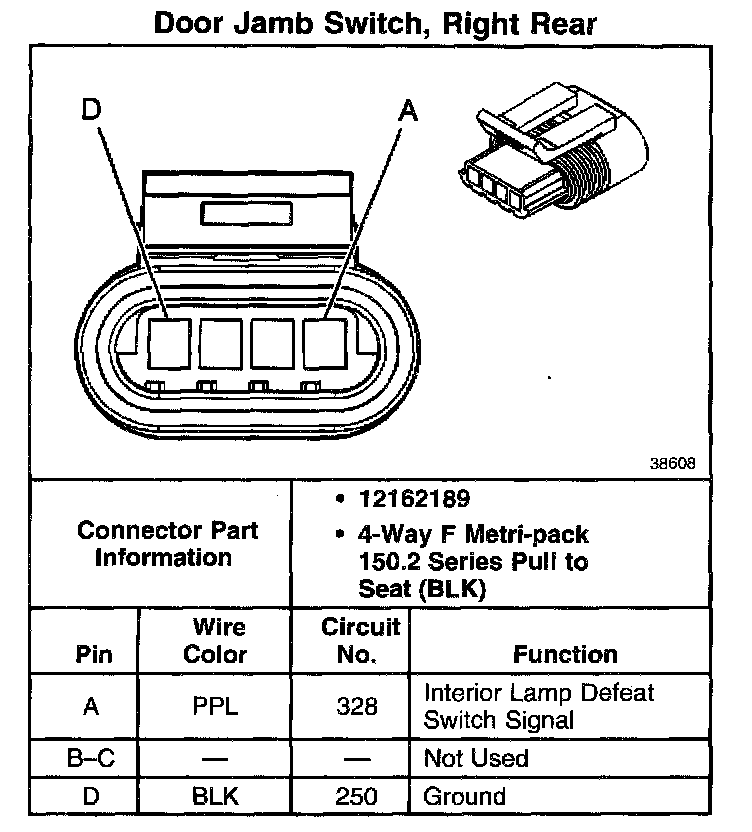

Door Jamb Switch, Right Rear:

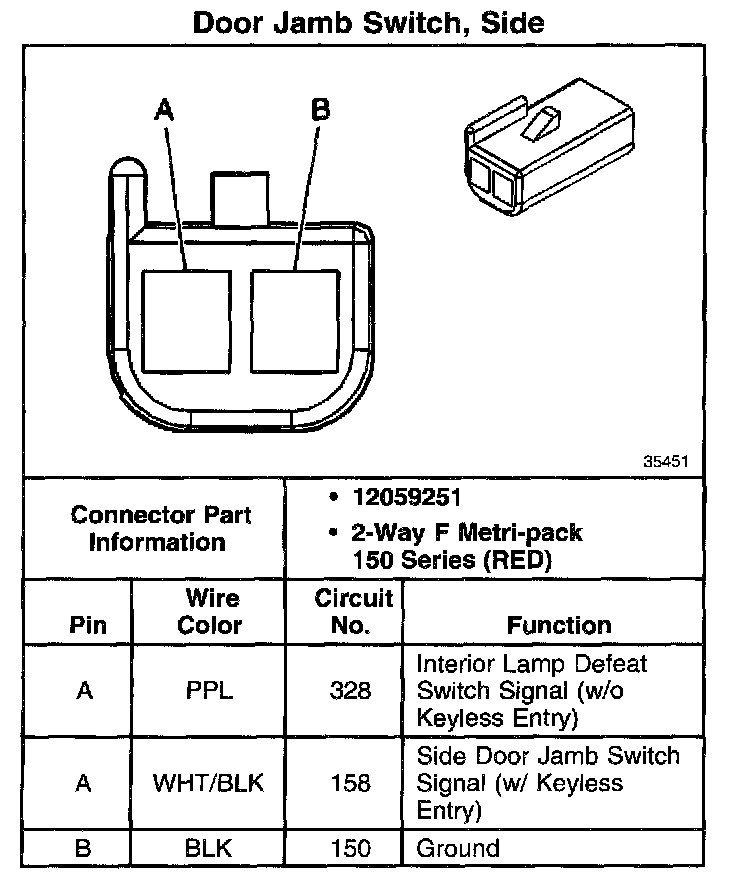

Door Jamb Switch, Side:

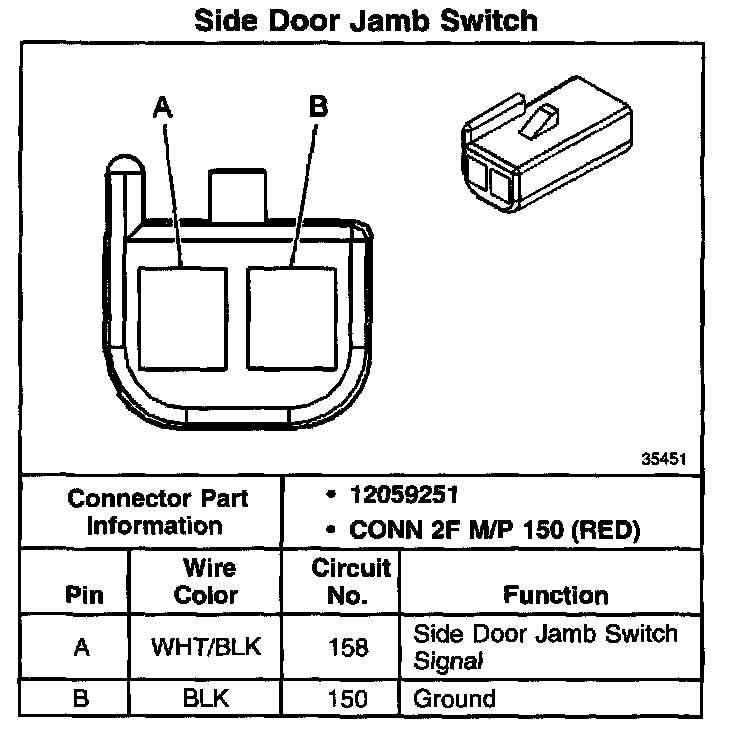

Side Door Jamb Switch:
