Engine

REMOVAL PROCEDURE

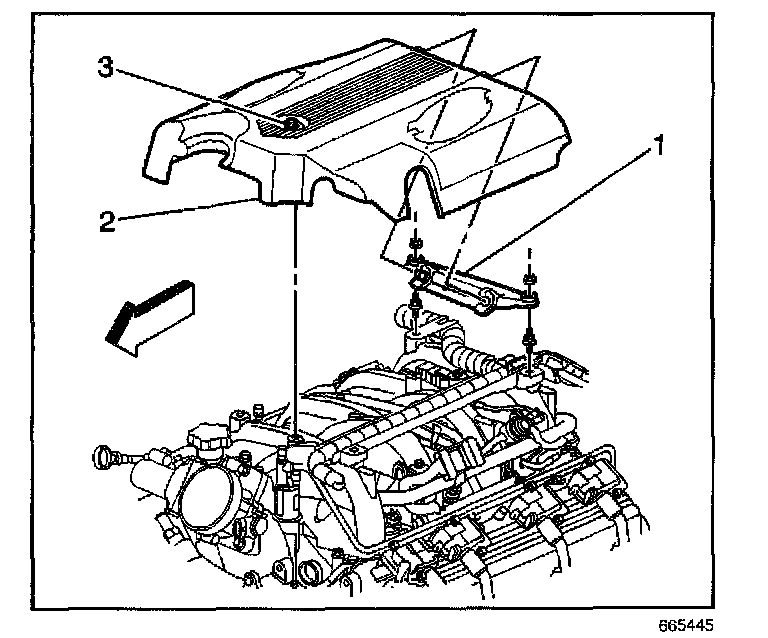

1. Remove the fuel injection sight shield retaining bolt (3).
2. Remove the fuel injection sight shield (2).

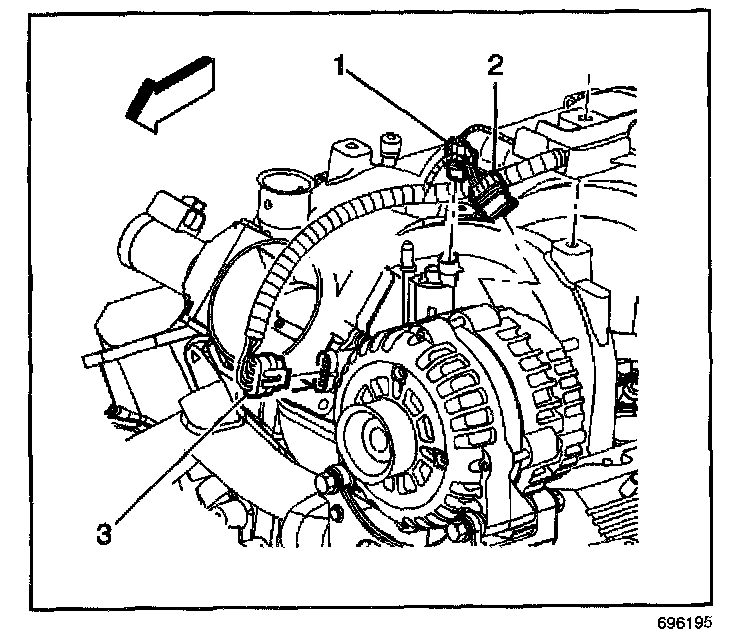

3. Disconnect the generator harness connector (2).
4. Disconnect the Throttle Position (TP) sensor harness connector (3).
5. Disconnect the fuel injection harness multi-way connector.

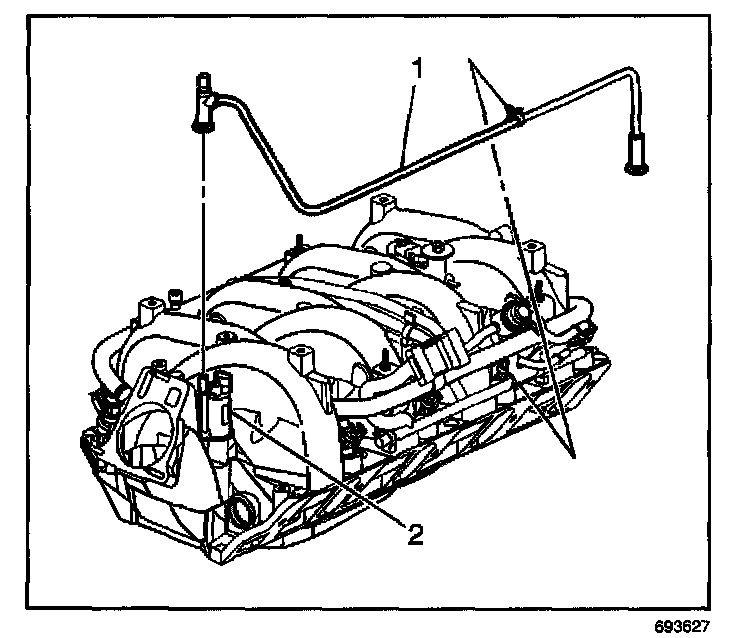

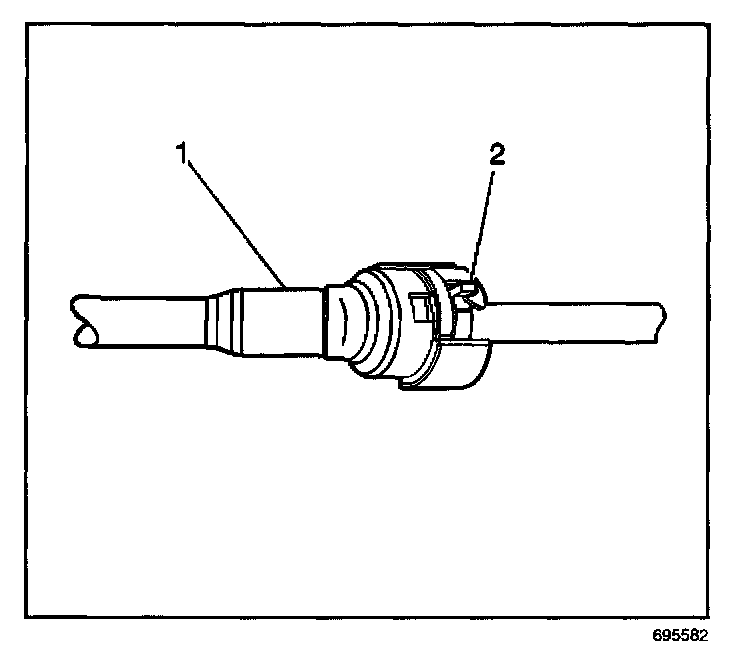

6. To disconnect the EVAP purge pipe connector (1), slide the retaining tab (2) to the release position and separate the connection.
^ Disconnect the engine purge pipe from the EVAP canister purge valve.
^ Disconnect the engine purge pipe from the chassis purge pipe.




7. Release the purge pipe retaining clip from the fuel rail mounting bracket.
8. Remove the EVAP engine purge pipe from the vehicle.

INSTALLATION PROCEDURE

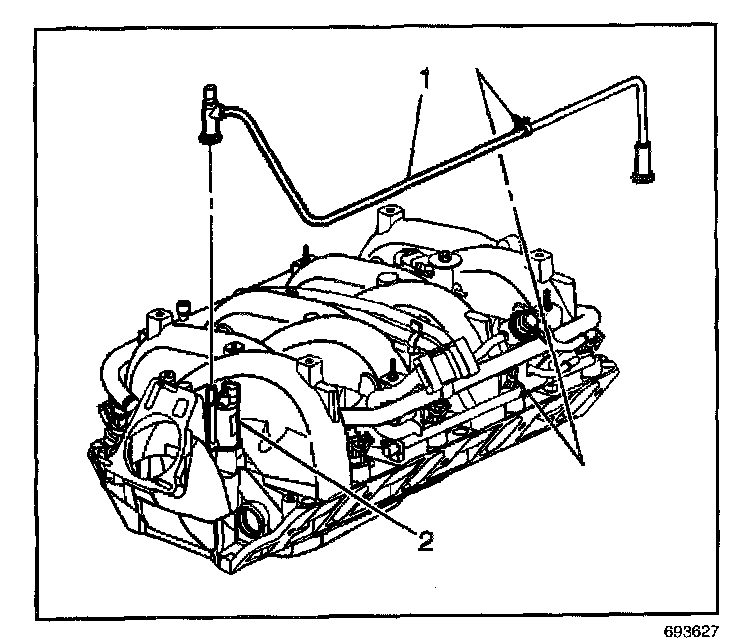

1. Position the EVAP engine purge pipe (1) to the engine.
2. Insert the purge pipe retaining clip into the fuel rail mounting bracket.
^ Connect the EVAP purge pipe (1) to the chassis purge pipe.
^ Connect the EVAP purge pipe (1) to the EVAP canister purge valve (2).

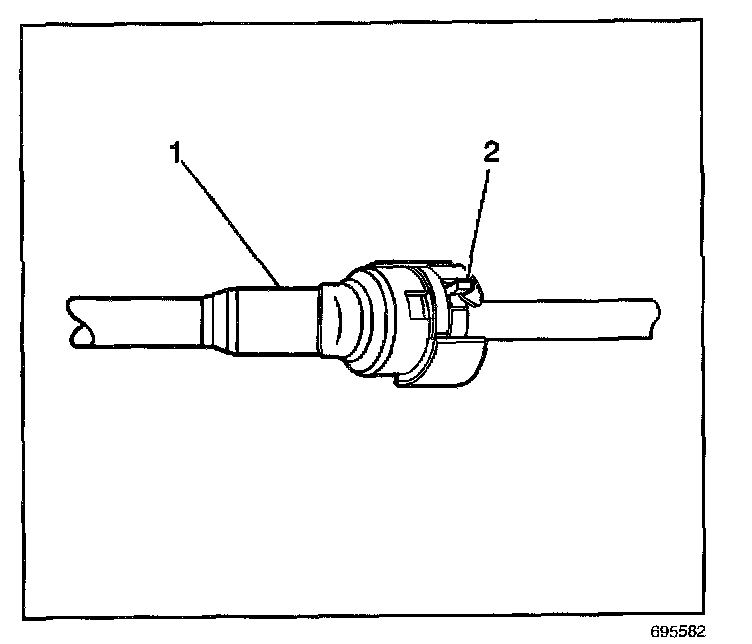

3. To connect the purge pipe connector (1), press the components together in order to snap the tab (2) in place.

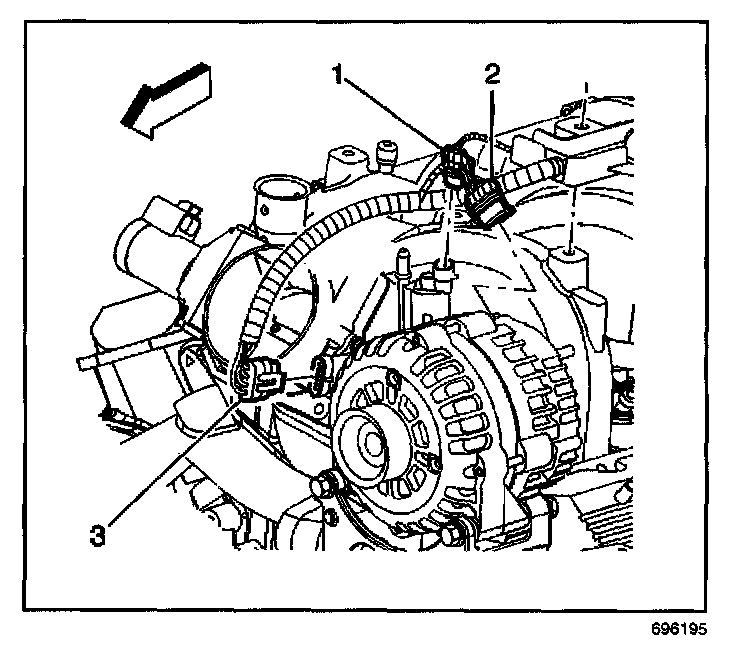

4. Connect the generator harness connector (2).
5. Connect the TP sensor harness connector (3).
6. Connect the fuel injector harness multi-way connector.

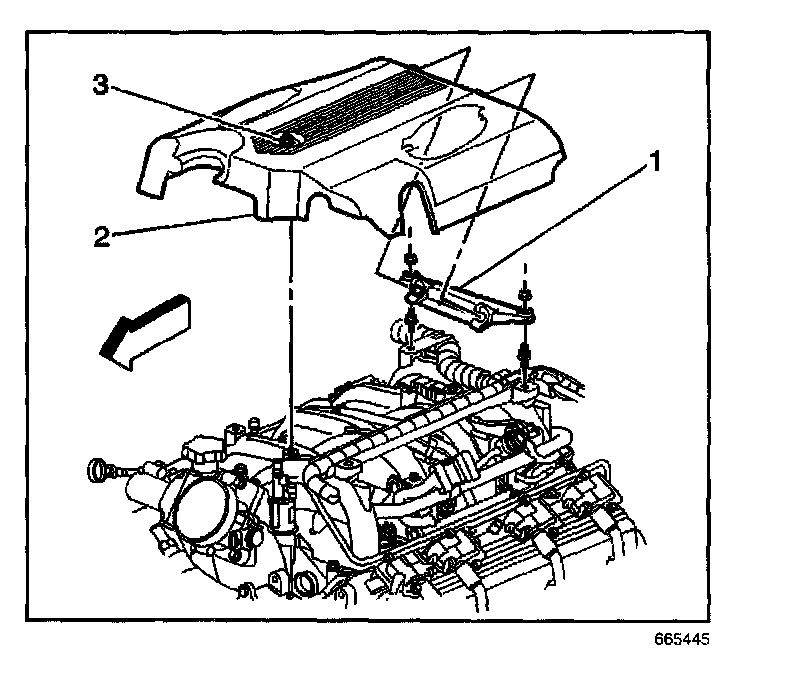

7. Install the fuel injection sight shield (2).

NOTE: Refer to Fastener Notice in Service Precautions.

8. Install the fuel injection sight shield retaining bolt (3).

Tighten
Tighten the fuel injection sight shield to 10 N.m (89 lb in).
