Canister Vent Valve: Service and Repair
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENTREMOVAL PROCEDURE

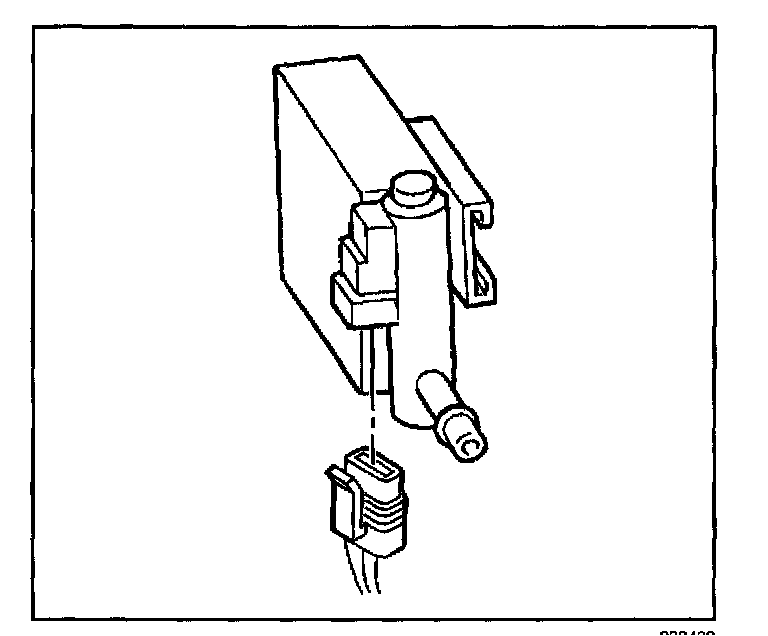

1. Disconnect the EVAP canister vent valve harness connector.
2. Disconnect the canister vent hose.

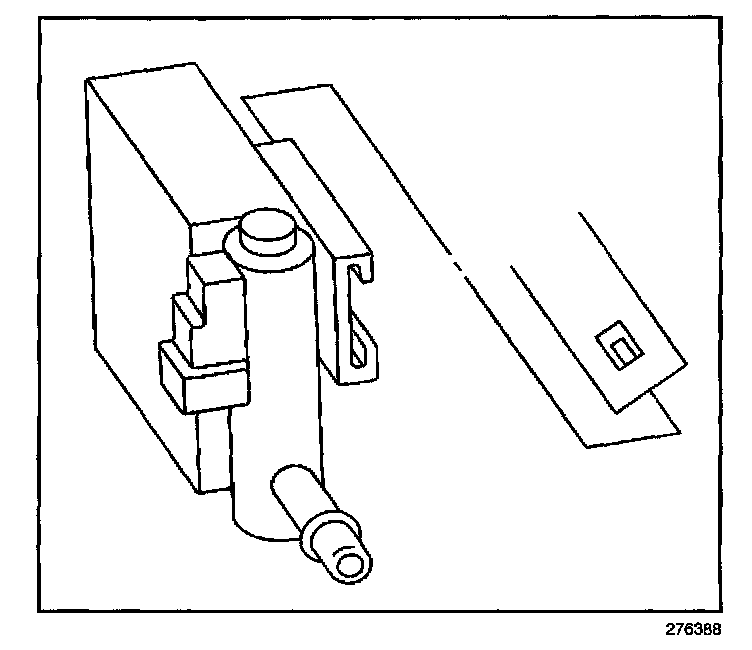

3. Bend back the tang on the bracket.
4. Slide the vent valve off the bracket.
INSTALLATION PROCEDURE
1. Slide the vent valve onto the bracket.
2. Connect the canister vent hose.

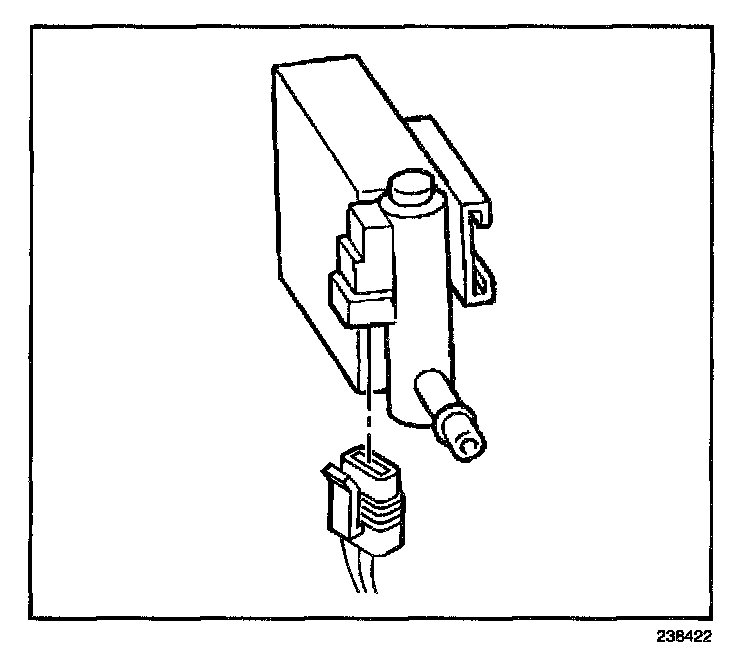

3. Connect the EVAP canister harness connector.
