HVAC Control Assembly Replacement - Rear Auxiliary

REMOVAL PROCEDURE

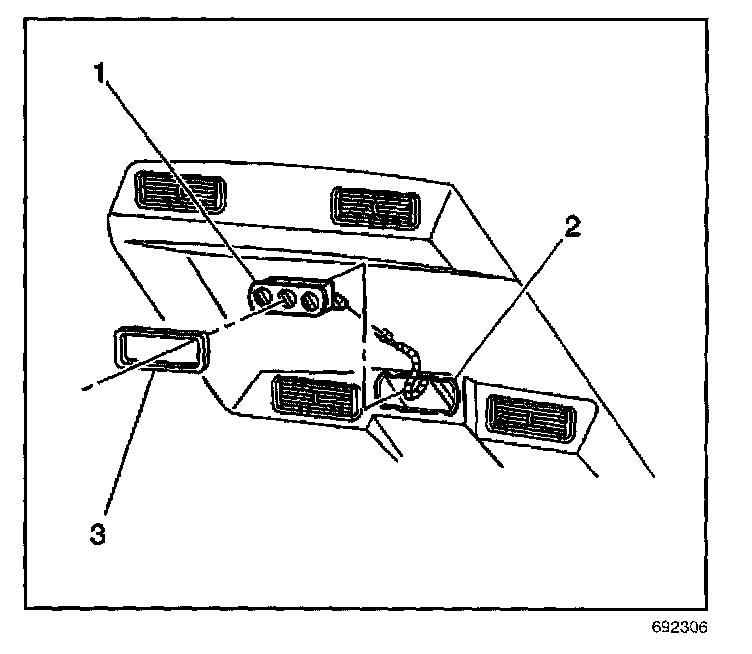

1. Remove the HVAC control assembly bezel (3) from the headliner (2).
2. Lower the front headliner to access the rear of the HVAC control assembly (1).
3. Disconnect the electrical connectors.
4. Remove the HVAC control assembly from the front headliner.

INSTALLATION PROCEDURE




1. Install the HVAC control assembly (1) in the front headliner and attach the bezel (3).
2. Connect the electrical connectors.
3. Install the front headliner (2).
