Air Cleaner Resonator Outlet Duct Replacement

REMOVAL PROCEDURE




1. Remove the air cleaner assembly.
2. Loosen the duct clamp at the throttle body.

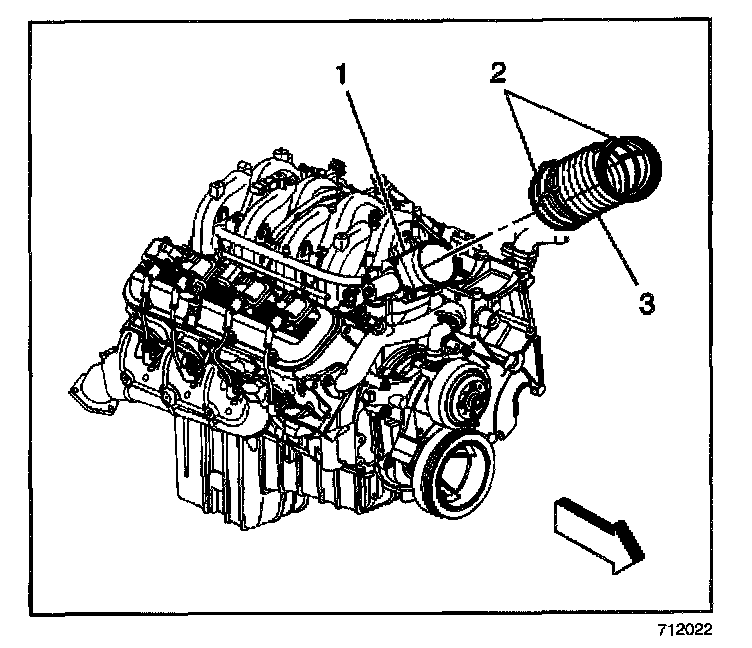

3. Remove the air cleaner resonator outlet duct (3).

INSTALLATION PROCEDURE




1. Install the air cleaner resonator outlet duct (3).
2. Tighten the duct clamp at the throttle body.
3. Install the air cleaner assembly.
