30. Piston and Connecting Rod Disassemble

Piston and Connecting Rod Disassemble





Important: The piston and connecting rod are only serviced as an assembly. If a new piston or connecting rod is required, a complete piston/connecting rod assembly must be used.

Important: New connecting rod nuts must be used when the pistons are reinstalled in the engine.

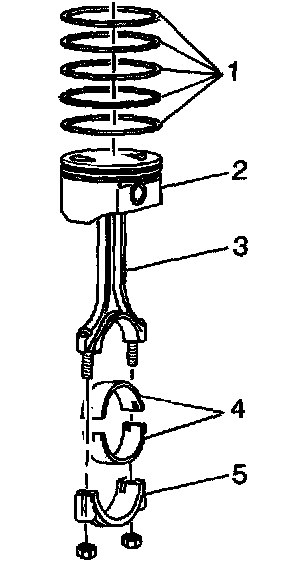

Remove the piston rings (1) from the piston (2).
