2. Crankshaft Balancer Removal

Crankshaft Balancer Removal (C/K/G/C350OHD)

^ Tools Required
- J 38416-B Three Jaw Puller
- J 42846 Crankshaft Protector Button
- J 42847 Flywheel Holding Tool

Notice: Refer to Fastener Notice in Service Precautions.

Important: Make sure the teeth of the flywheel holding tool engage the engine flywheel teeth.





1. Install the J 42847 to the starter bolt holes.
^ Tighten the J 42847 bolts to 50 Nm (37 ft. lbs.).
2. Remove the crankshaft balancer bolt and washer.





3. Install the J 42846 onto the end of the crankshaft.

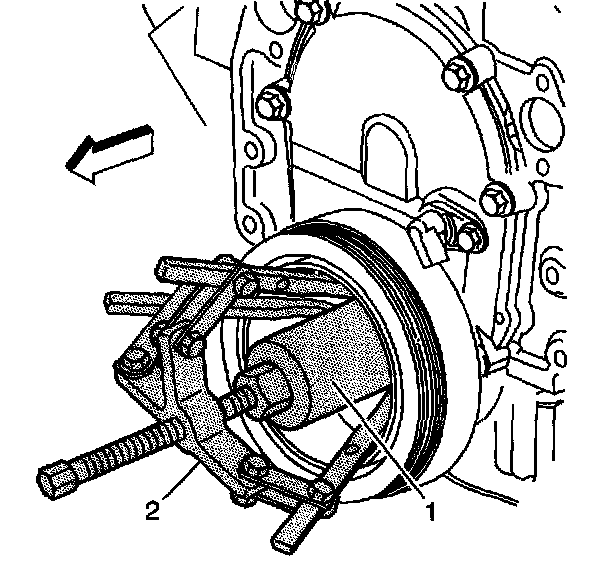

4. Install the J 38416-B (2) in order to remove the crankshaft balancer. Place the legs of the J 38416-B into the recesses cast into the backside of the balancer inner hub.
5. Tighten the center screw of the J 38416-B until the crankshaft balancer is clear of the crankshaft nose.





6. Remove the J 38416-B.

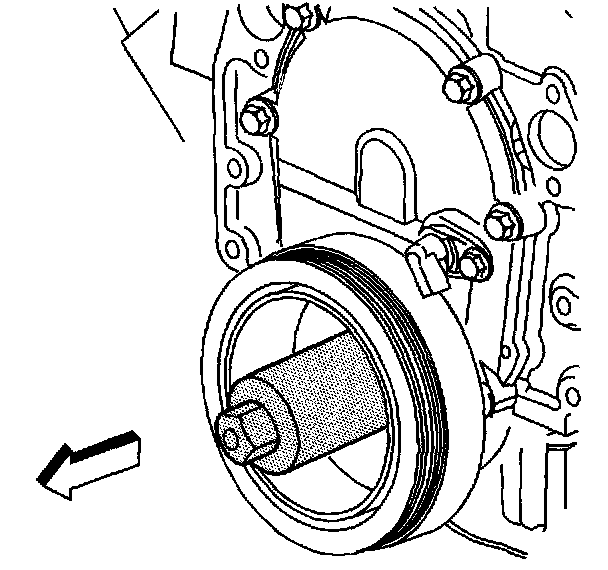

7. Remove the crankshaft balancer.
8. Remove the J 42846 from the end of the crankshaft.
9. Remove the J 42847.
