Engine Mount Replacement (Left)

Engine Mount Replacement - Left
Removal Procedure

Notice: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.





1. Raise and suitably support the vehicle with safety stands. Refer to Vehicle Lifting.

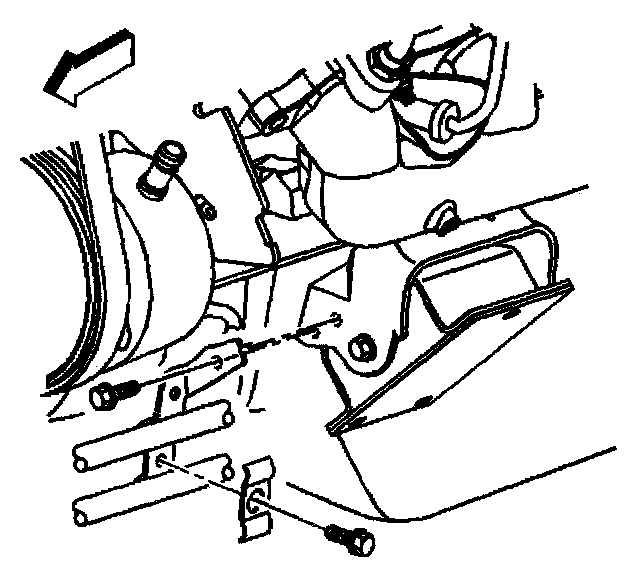

2. Remove the oil cooler line bracket bolt from the engine mount bracket.
3. Remove the bracket from the engine mount bracket.





4. Support the engine with a suitable jack. Do not load the engine mounts.

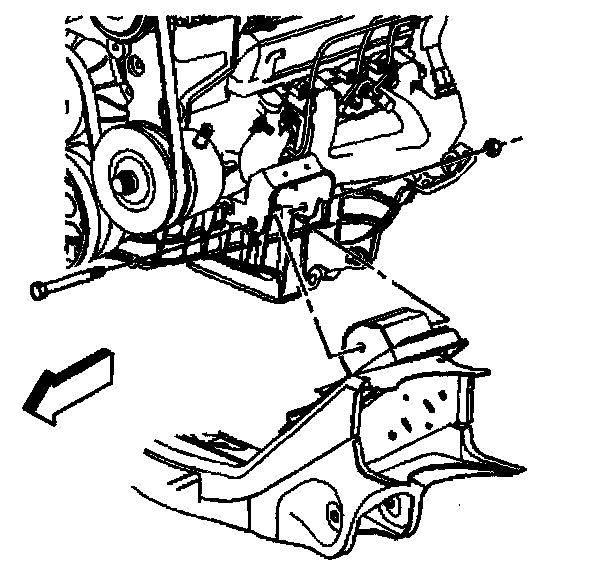

5. Remove the engine mount through bolt and nut.
6. Raise the engine only enough to permit removal of the engine mount.

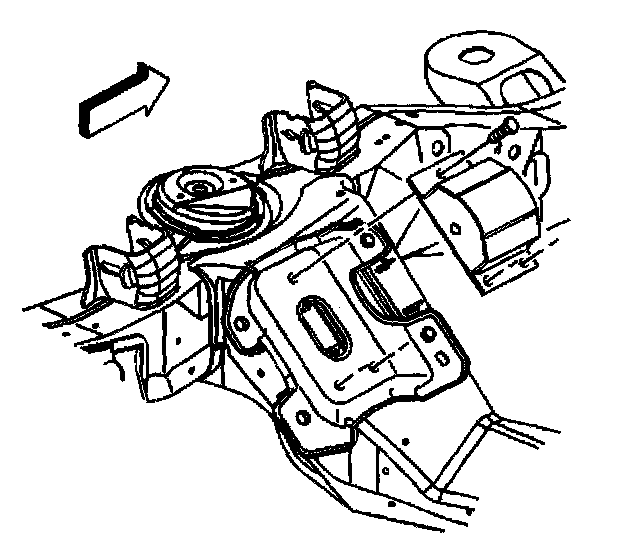

7. Remove the engine mount bolts.
8. Remove the engine mount.

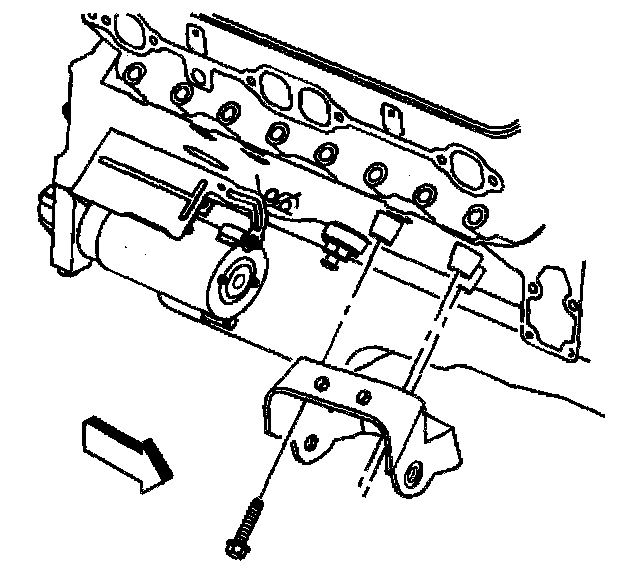

9. If required, remove the engine mount bracket-to-engine bolts (right side shown, left side similar).
10. Remove the engine mount bracket.

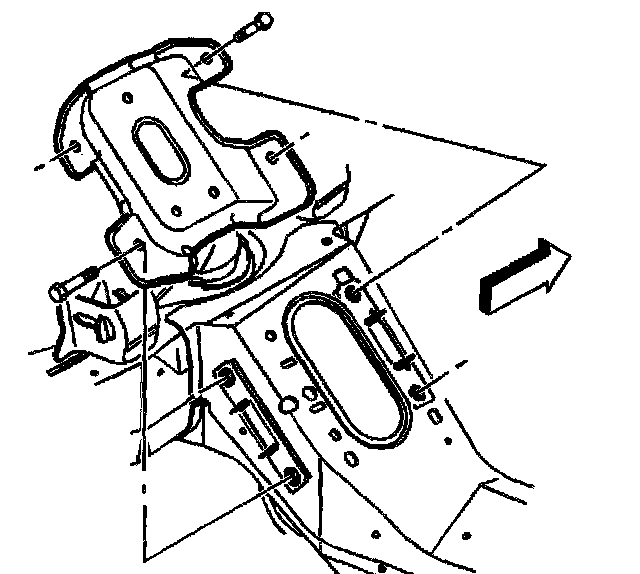

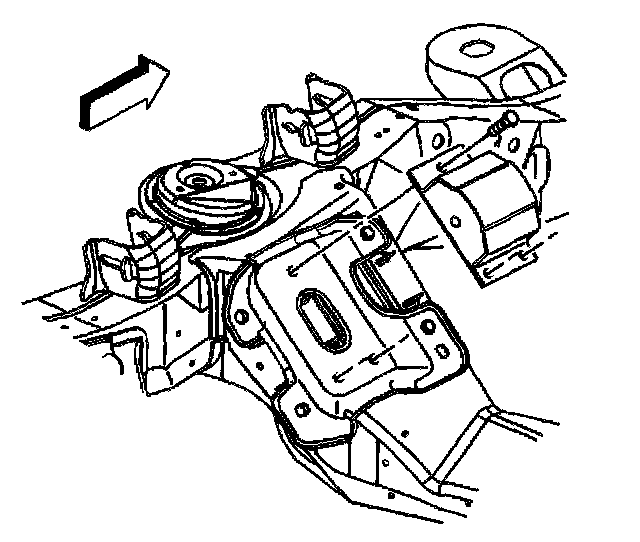

11. If required, remove the engine mount bracket-to-frame bolts.
12. Remove the engine mount bracket.

Installation Procedure





1. If required, install the engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount bracket-to-frame bolts.
^ Tighten the engine mount bracket-to-frame bolts to 45 Nm (33 ft. lbs.).

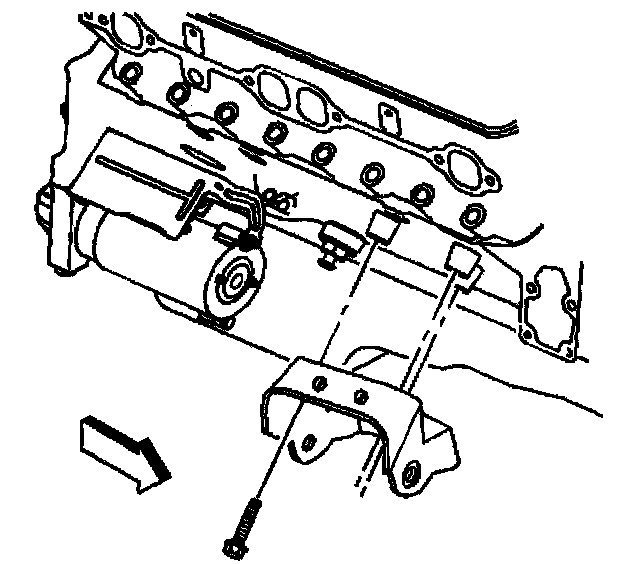

3. If required, install the engine mount bracket (right side shown, left side similar).
4. Install the engine mount bracket-to-engine bolts.
^ Tighten the engine mount bracket-to-engine bolts to 54 Nm (40 ft. lbs.).





5. Install the engine mount.
6. Install the engine mount bolts.
^ Tighten the engine mount bolts to 58 Nm (43 ft. lbs.).

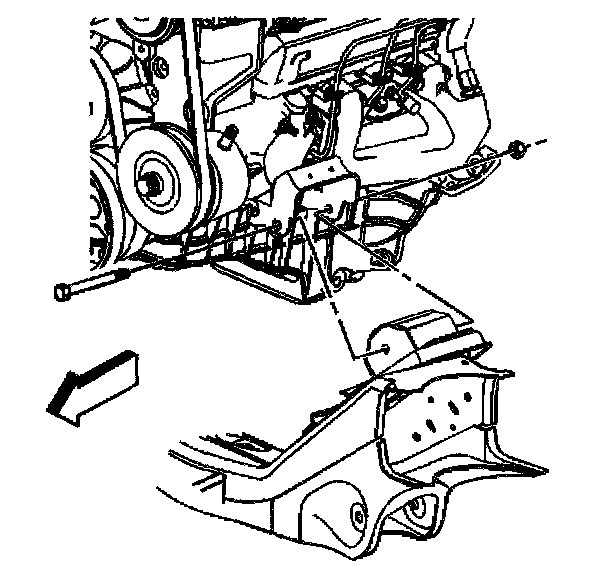

7. Lower the engine until the engine mount through bolt can be inserted.
8. Install the engine mount through bolt and nut.
^ Tighten the engine mount through bolt to 95 Nm (70 ft. lbs.).
9. Remove the engine support.

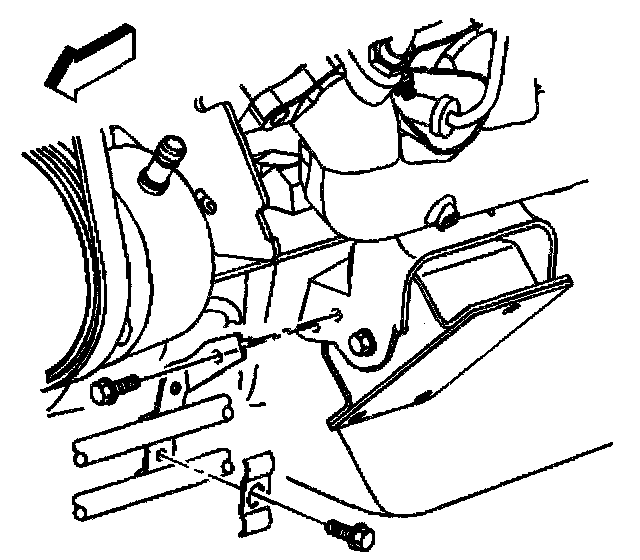

10. Install the oil cooler line bracket to the engine mount bracket.
11. Install the bracket bolt to the engine mount bracket.
^ Tighten the oil cooler line bracket bolt to 12 Nm (106 inch lbs.).
12. Lower the vehicle.
