EVAP Hose/Pipe Routing W/Dual Tanks and Two Fill Necks
EVAP Hose/Pipe Routing W/Dual Tanks and Two Fill Necks

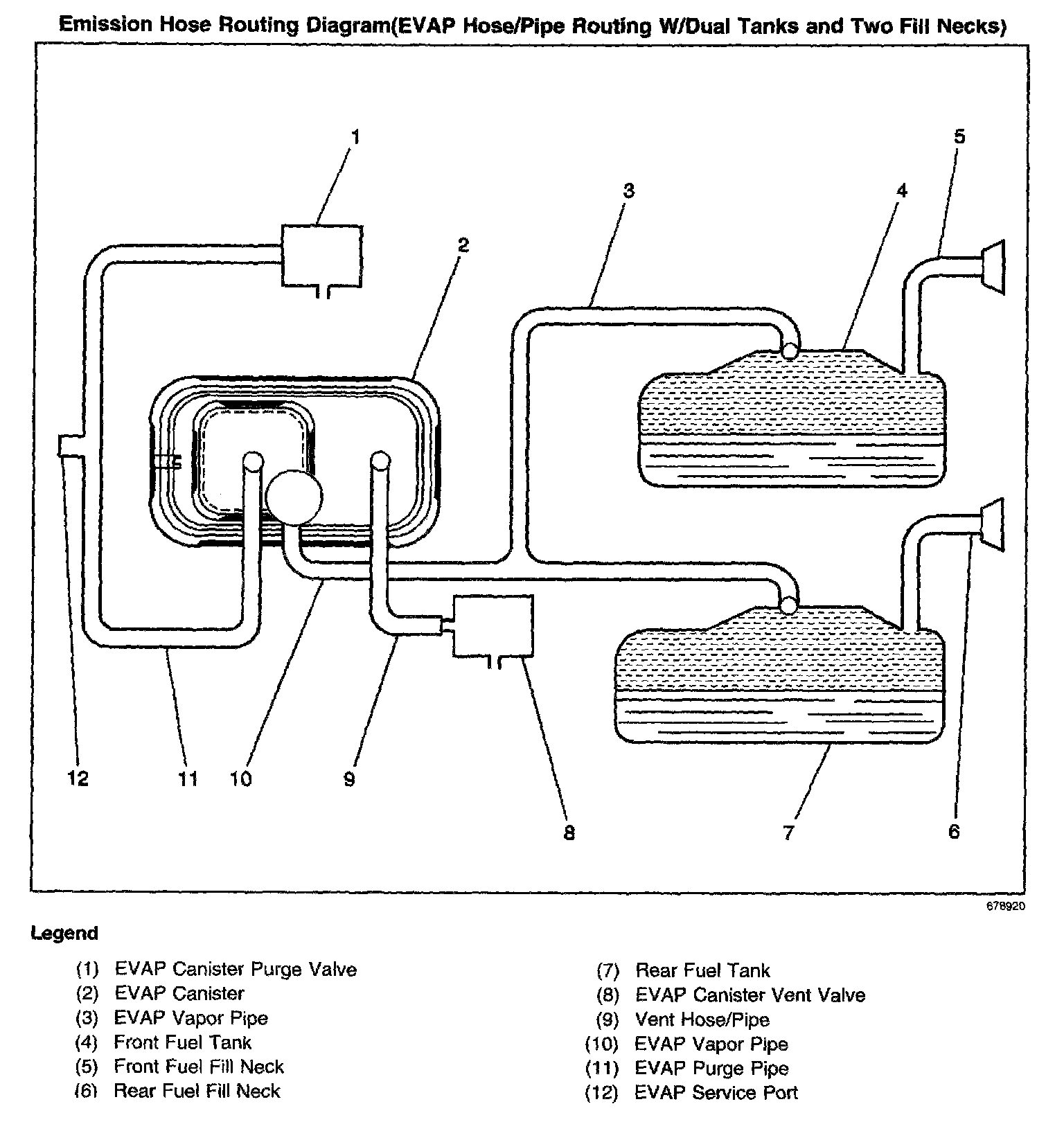

Emission Hose Routing Diagram (EVAP Hose/Pipe Routing W/Dual Tanks And Two Fill Necks):
