Rear Channel Audio Inputs and Output

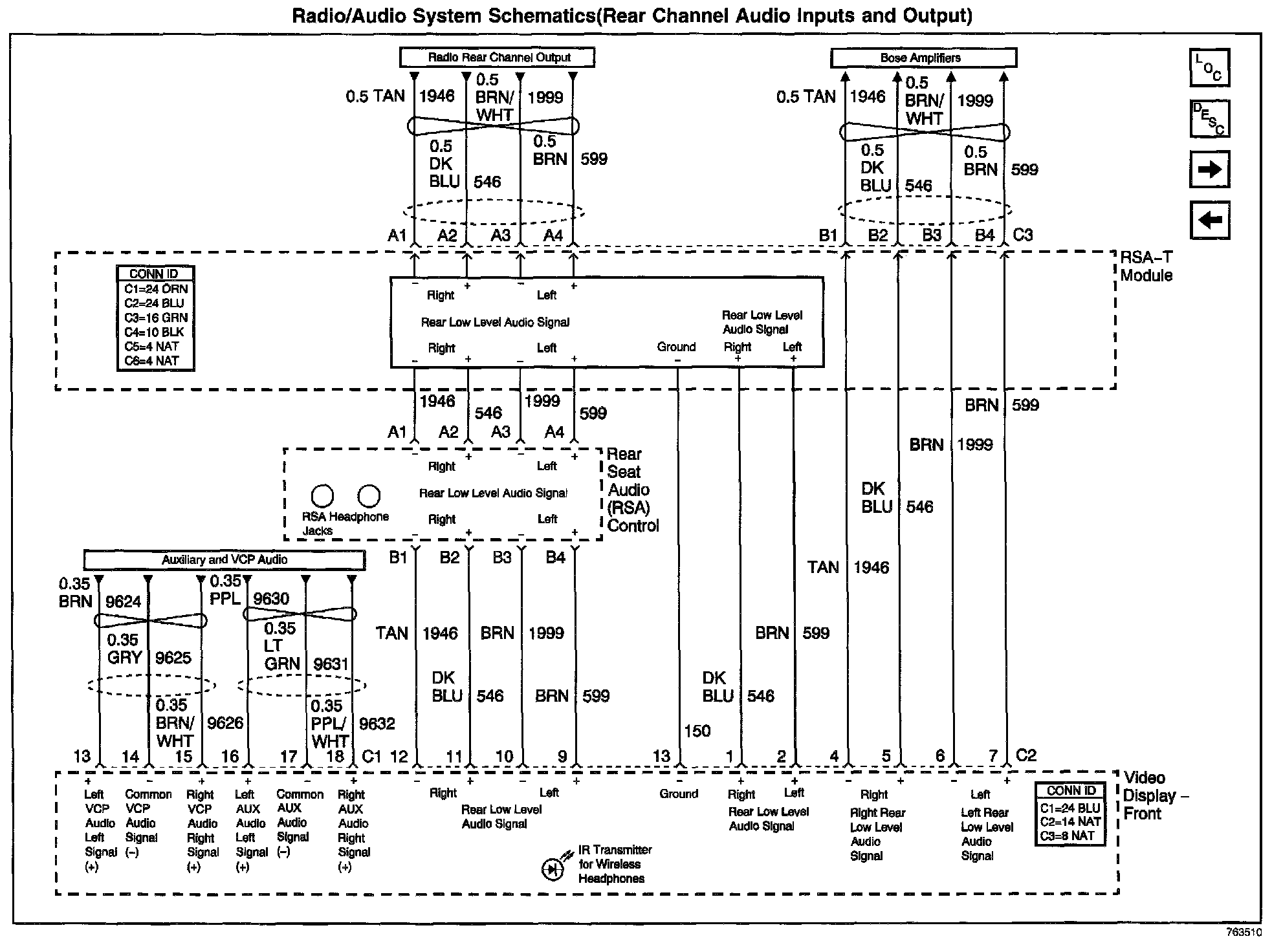

Radio/Audio System Schematics: Rear Channel Audio Inputs And Output:
