Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Standard Models (Non-Alternative Fuels) >> TAC, APP and TP Sensor

TAC, APP and TP Sensor

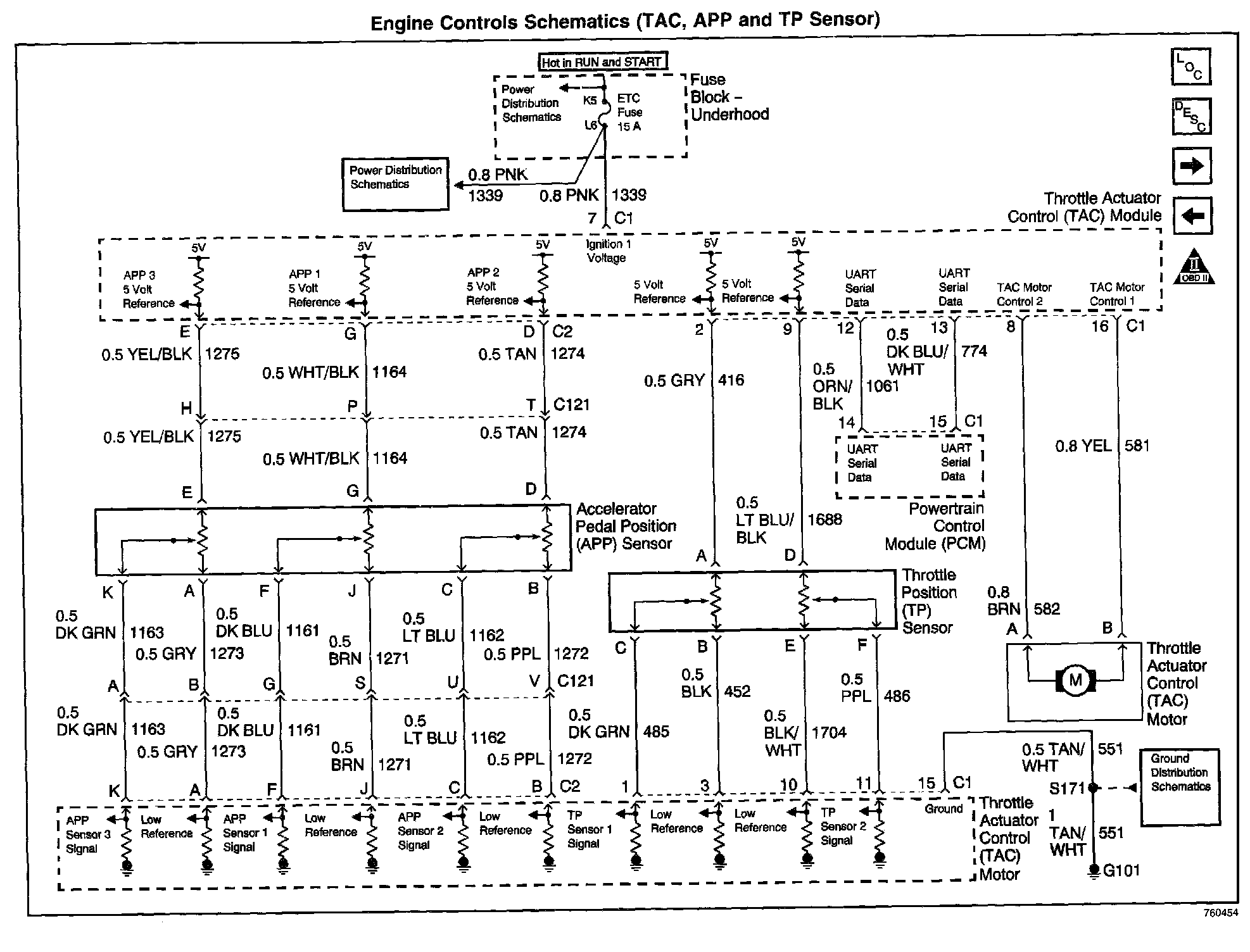

Engine Controls Schematics: TAC, APP And TP Sensor:
