Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Standard Models (Non-Alternative Fuels) >> Sensor Controls: MAF and EVAP

Sensor Controls: MAF and EVAP

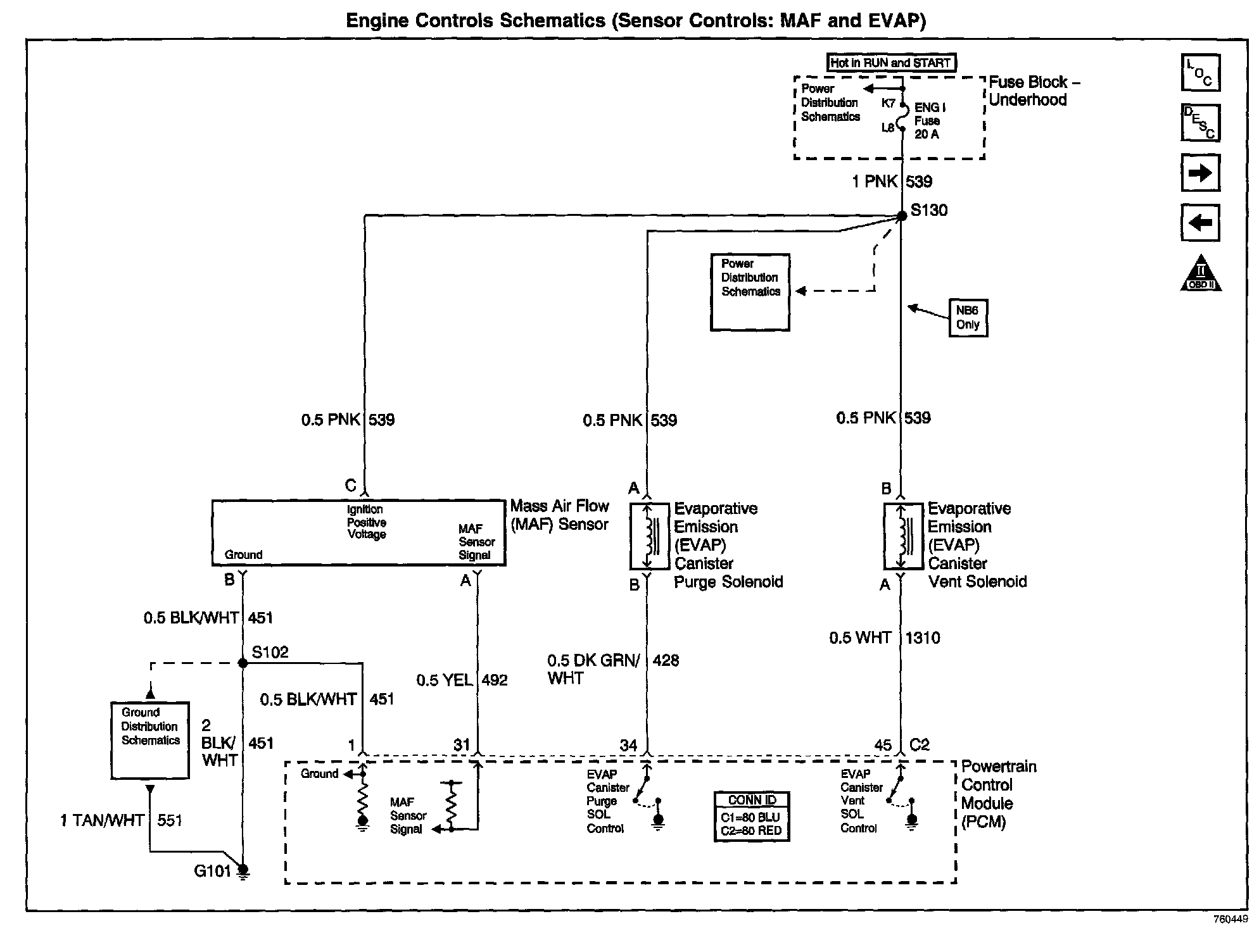

Engine Controls Schematics: Sensor Controls: MAF And EVAP:
