Ignition Controls: Odd Ignition Coil

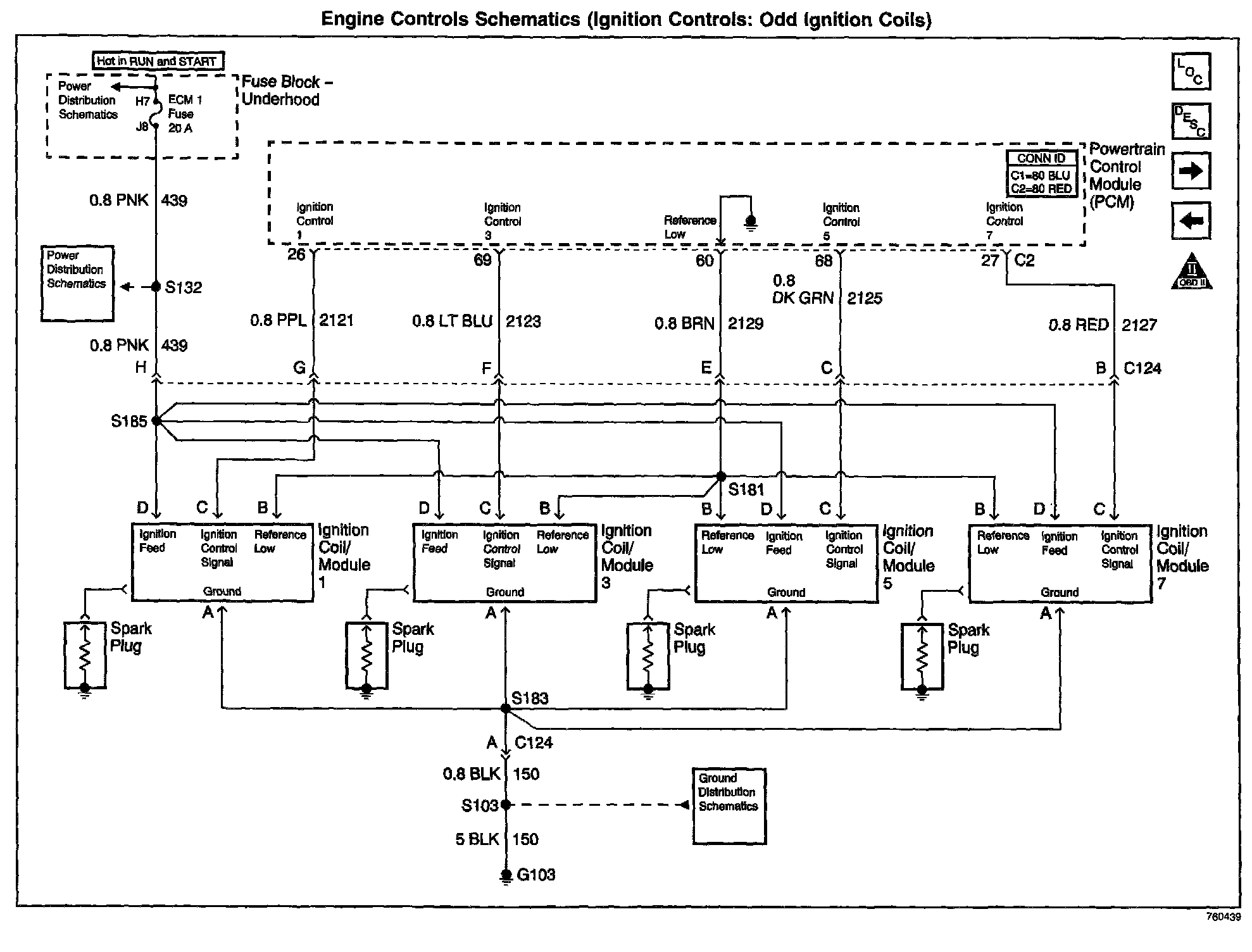

Engine Controls Schematics: Ignition Controls: Odd Ignition Coils:
