Ignition Controls: Even Ignition Coil

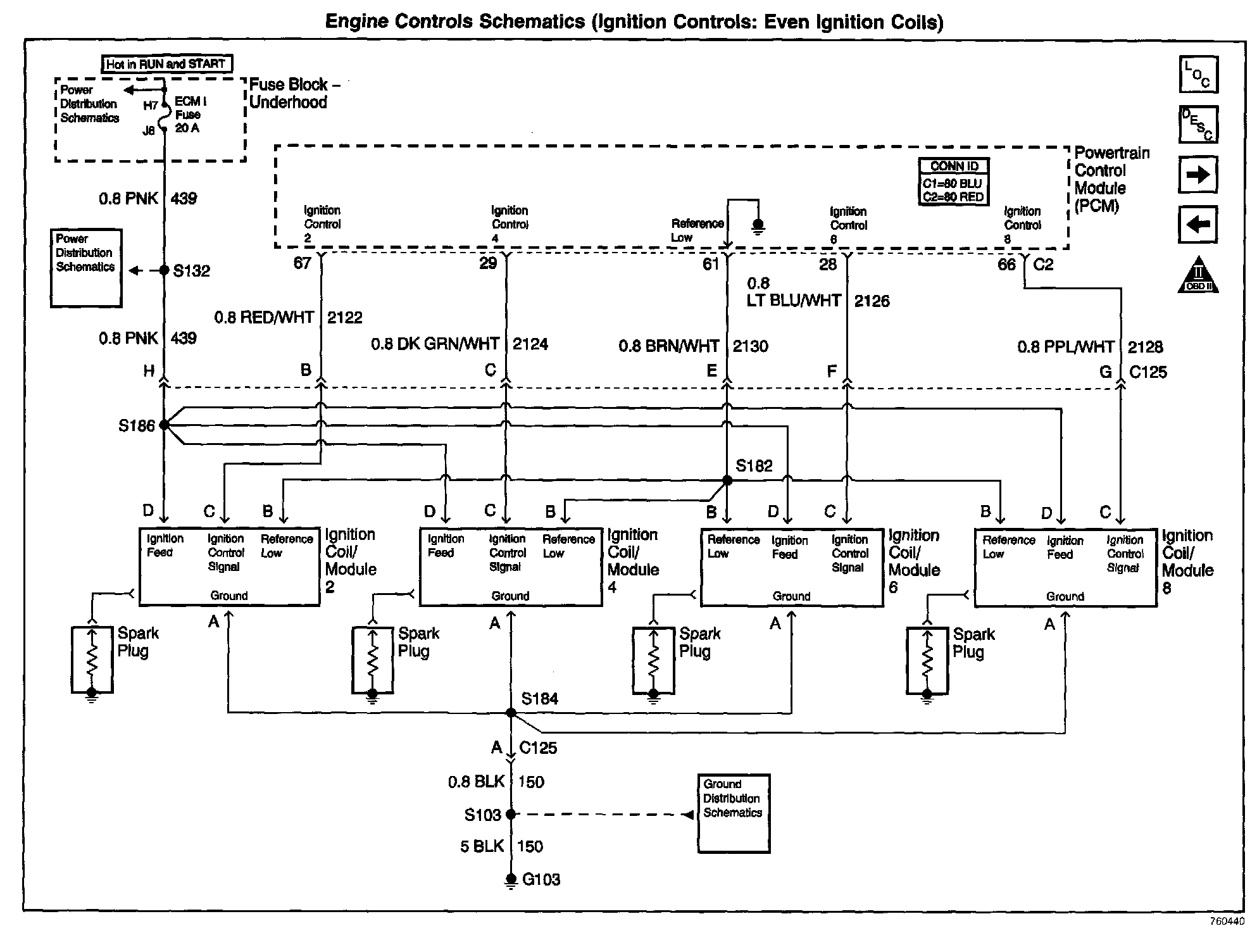

Engine Controls Schematics: Ignition Controls: Even Ignition Coils:
