Hydraulic Assist System Diagnosis

Brake Assist System Diagnosis (Hydraulic Assist)

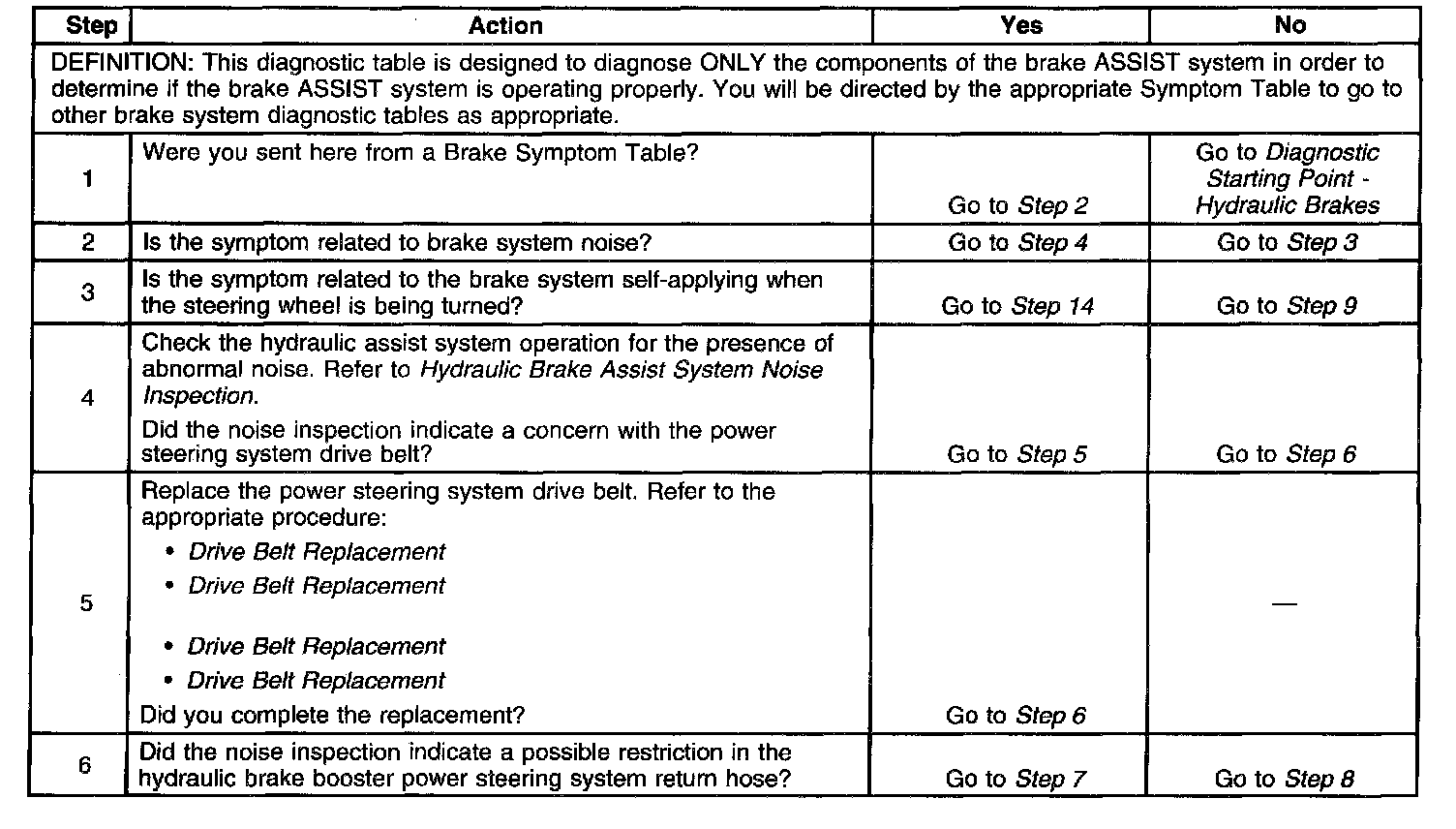

Test 1-6

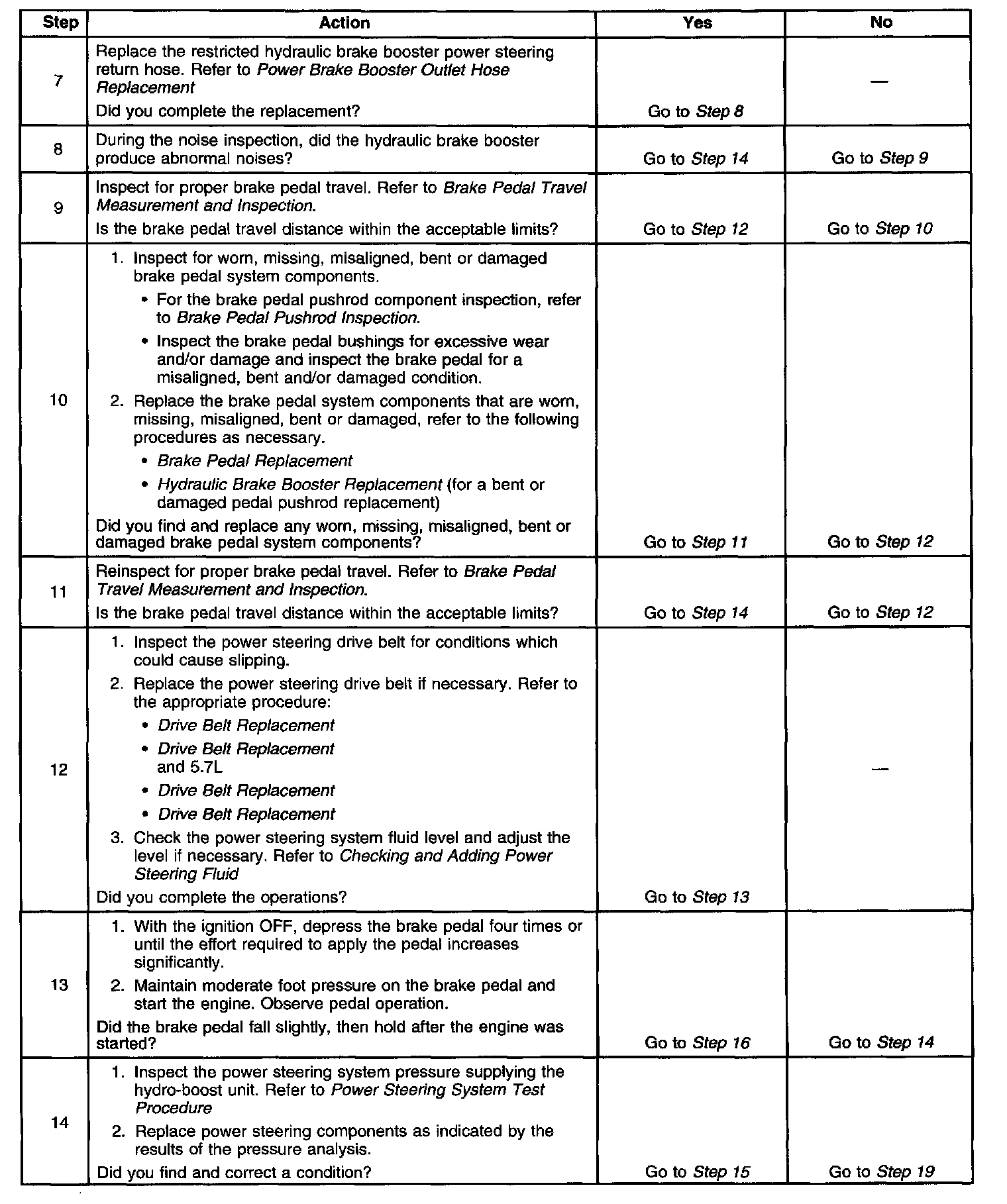

Test 7-14

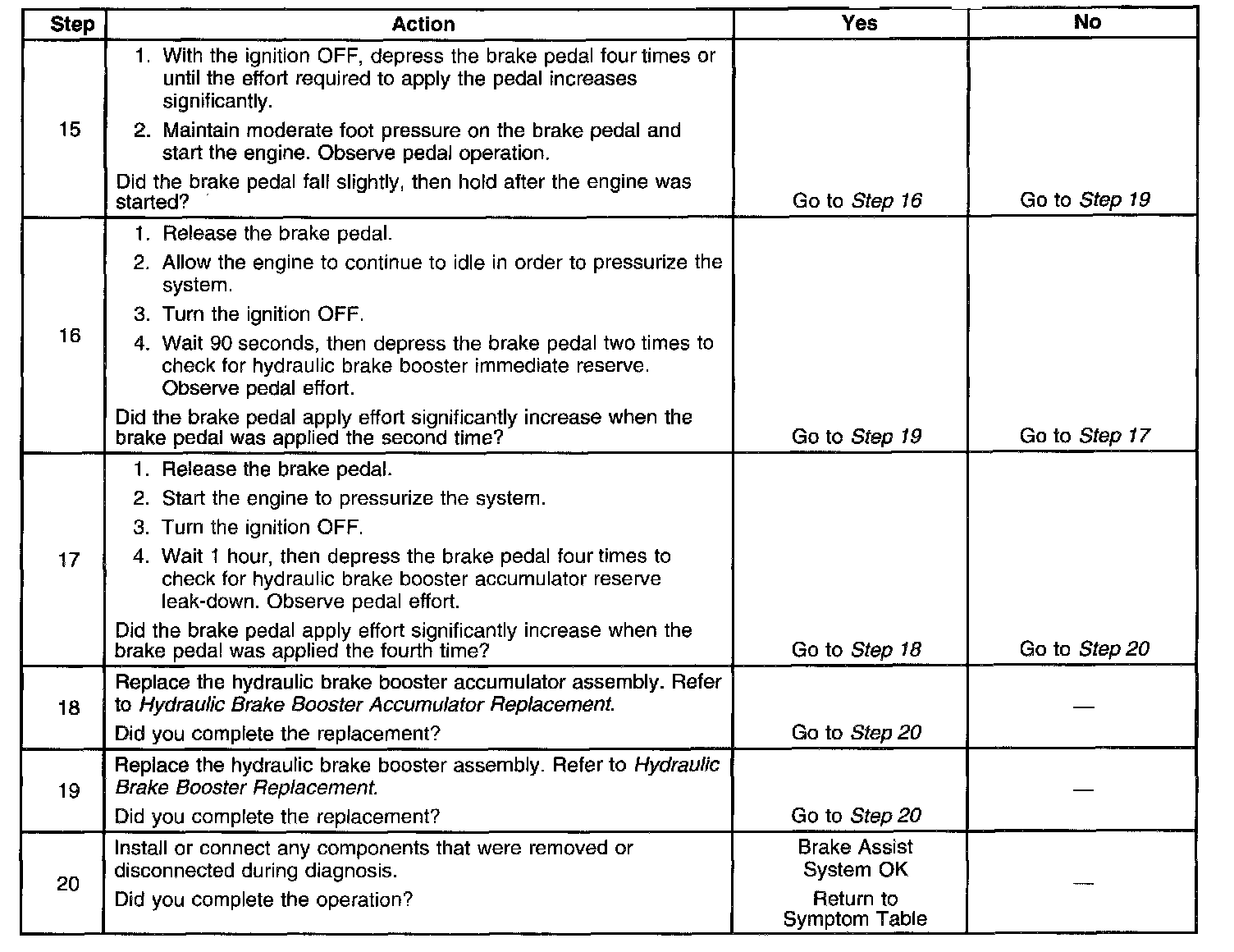

Test 15-20
