Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Auxiliary Video Display Is Poor or Blank (Both Displays)

Auxiliary Video Display Is Poor or Blank (Both Displays)

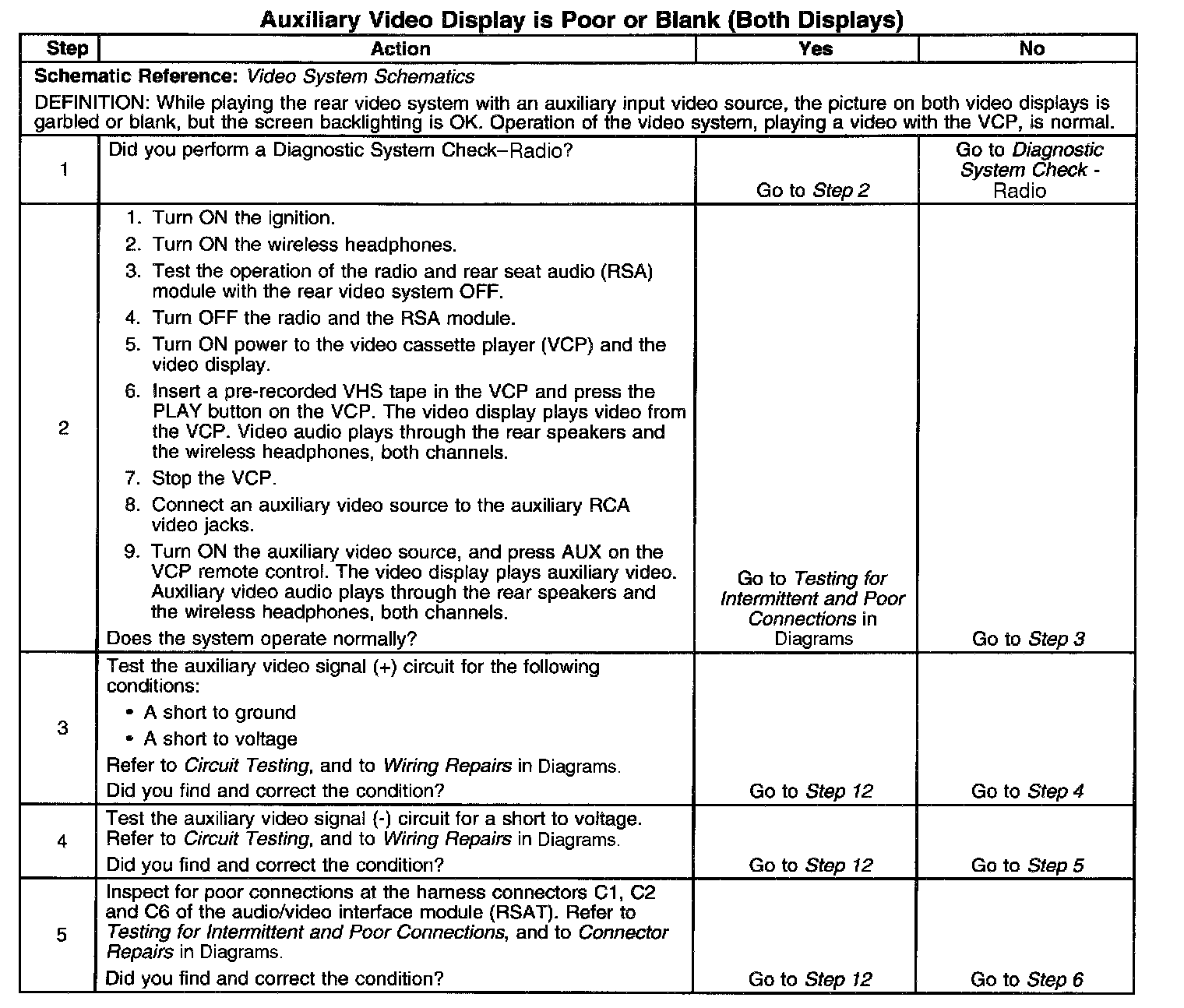

Steps 1-5:



Steps 6-12:
