P0336

CIRCUIT DESCRIPTION
The Crankshaft Position (CKP) sensor signal indicates the crankshaft speed and position. The CKP sensor is connected directly to the Powertrain Control (PCM) Module, and consists of the following circuits:
^ The 12 volt reference circuit
^ The low reference circuit
^ The CKP sensor signal circuit

CONDITIONS FOR RUNNING THE DTC
The engine is cranking or running.

CONDITIONS FOR SETTING THE DTC
The PCM determines that the CKP sensor signal is out of range for more than 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the Malfunction Indicator Lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Use a scan tool in order to clear the MIL and the DTC.

DIAGNOSTIC AIDS
^ The following conditions may cause this DTC to set:
- Poor connections-Refer to Connector Repairs in Diagrams.
- Crankshaft reluctor wheel damage or improper installation
- The sensor coming in contact with the reluctor wheel
- The engine running out of fuel
- The crankshaft rotates backwards-This condition is only with vehicles equipped with a manual transmission. This condition occurs when a vehicle is on an incline and the clutch is released and an engine stall occurs.
- Foreign material passing between the sensor and the reluctor wheel
^ Excess crankshaft end play will cause the CKP sensor reluctor wheel to move out of alignment with the CKP sensor. This could result in any one of the following conditions:
- The engine does not start
- A start and stall
- Erratic performance
^ An improperly installed crankshaft could cause excess crankshaft end play.
^ For an intermittent, refer to Intermittent Conditions. Intermittent Conditions

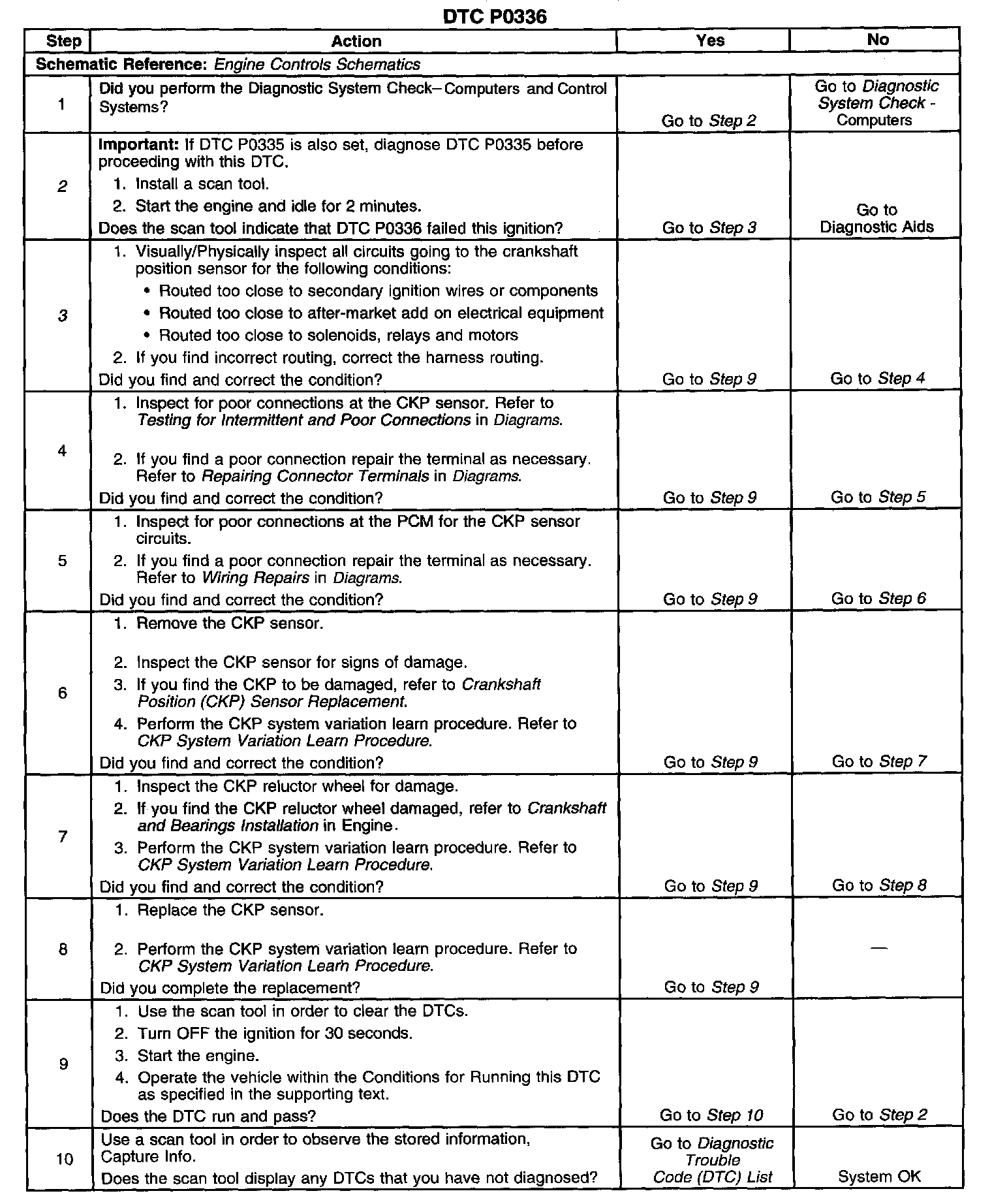

TEST DESCRIPTION

Steps 1-10:

The numbers below refer to the step numbers on the diagnostic table.
2. This step verifies that the malfunction is present.
3. This step tests for electromagnetic interference (EMI) on the CKP sensor circuits.
