FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Specifications >> Electrical Specifications >> Standard Models (Non-Alternative Fuels) >> Engine Speed Vs Hertz Hz >> RPM Vs Hertz (Hz) for High Resolution Signal

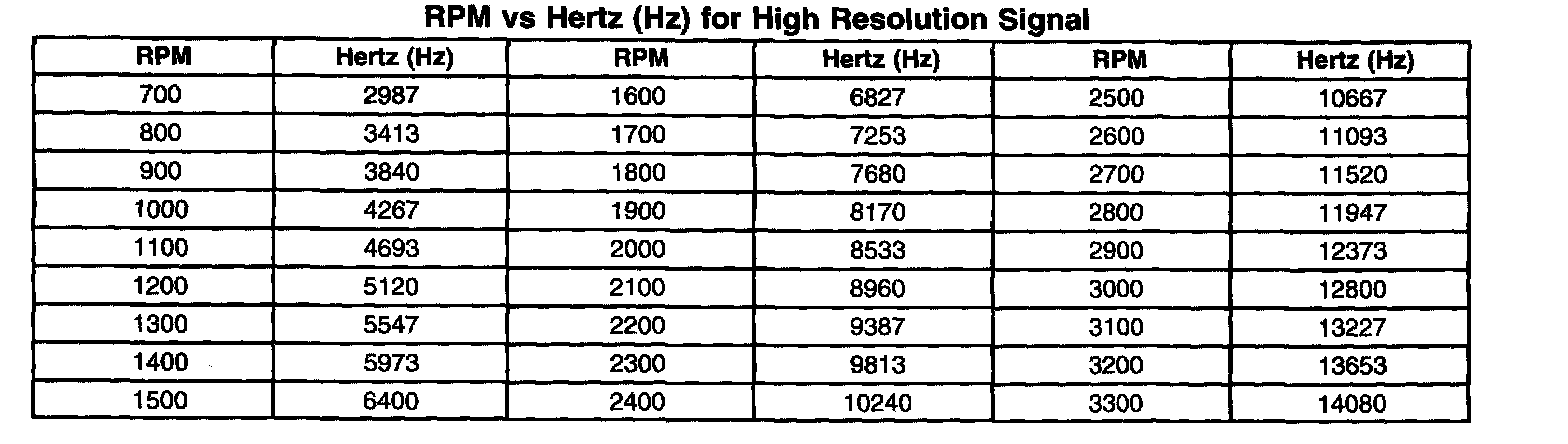

RPM Vs Hertz (Hz) for High Resolution Signal

RPM Vs Hertz (Hz) For High Resolution Signal:
