Fuel Gage Inaccurate or Inoperative - Standard Models (Non Alternative Fuels)

DIAGNOSTIC AIDS
^ Verify that the fuel level is in the same range as the customer concern.
^ For intermittent diagnosis, refer to Testing for Intermittent and Poor Connections in Diagrams.
^ Refer to Fuel Level Specifications in order to verify the correct readings for the fuel level sensor.

TEST

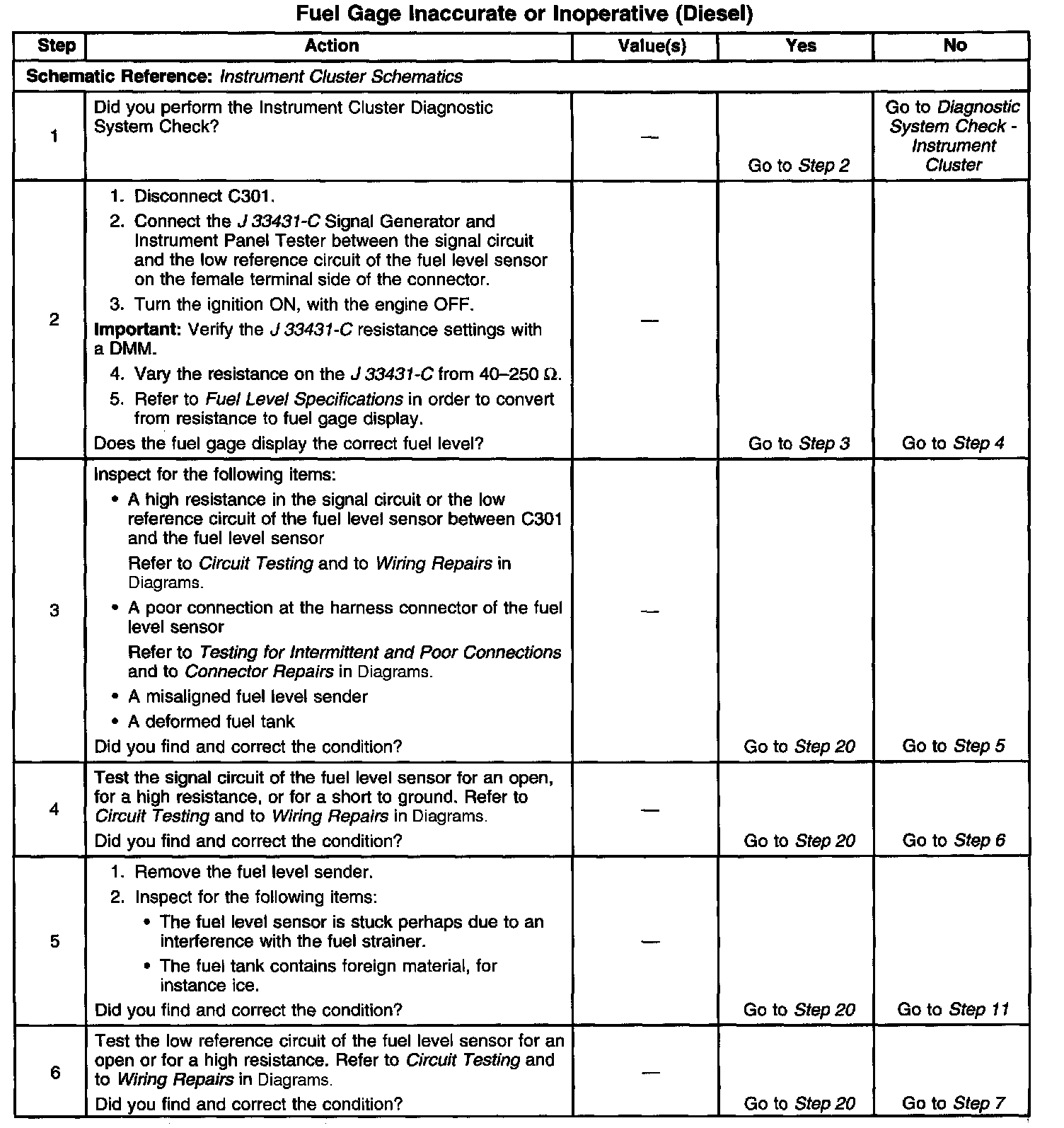

Steps 1-6:

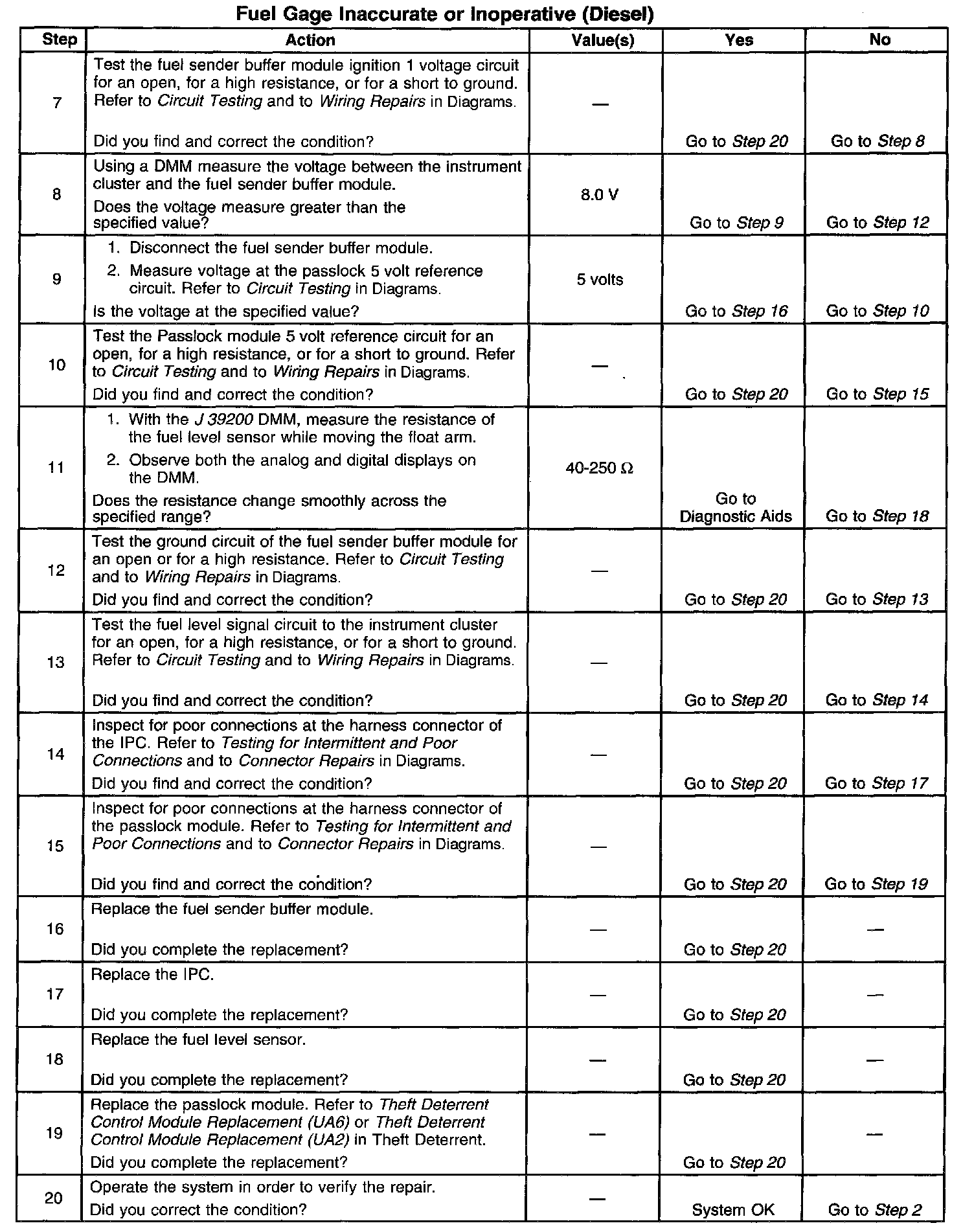

Steps 7-20:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
