92. Oil Filler Tube Installation

Oil Fill Tube Installation

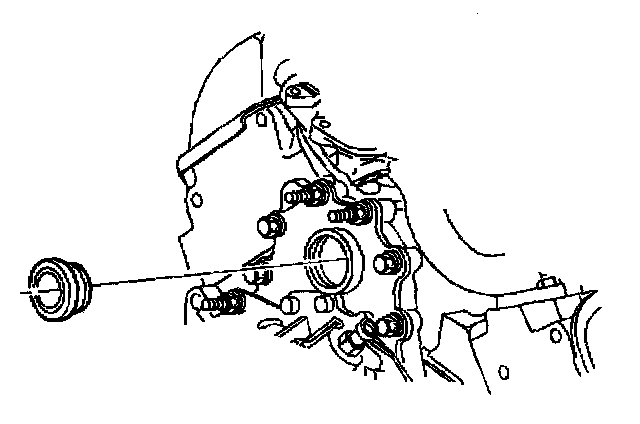

1. Install the oil fill tube grommet to the front cover.





2. Install the oil fill tube to the front cover.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the oil fill tube retaining nuts to the front cover.
^ Tighten the nuts to 23 Nm (17 ft. lbs.).
