64. Piston Oil Cooling Nozzle Installation

Piston Oil Cooling Nozzle Installation

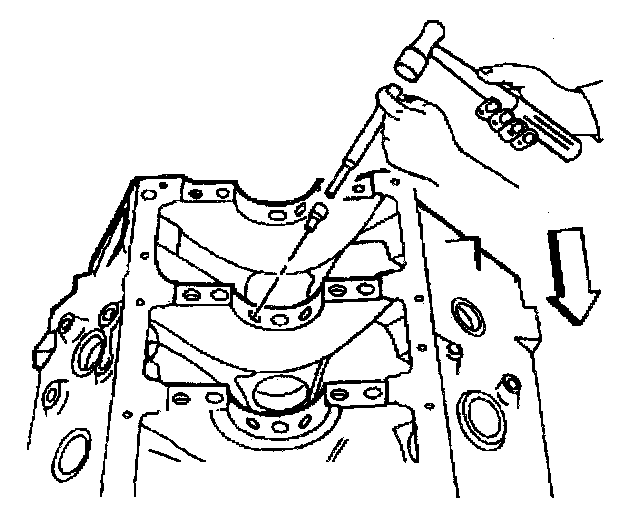

Important: Excessive force can crush the piston oil nozzle. Do not damage the piston oil nozzle bore. Do not damage the crankshaft bearing bore. Using a brass drive pin, install the piston oil nozzles. Use a brass drive pin that has the same OD as the piston oil nozzles. Gently tap the piston oil nozzles into their bores. Ensure the piston oil nozzles are fully seated in their bores.
