Engine

Disassembled Views (G)

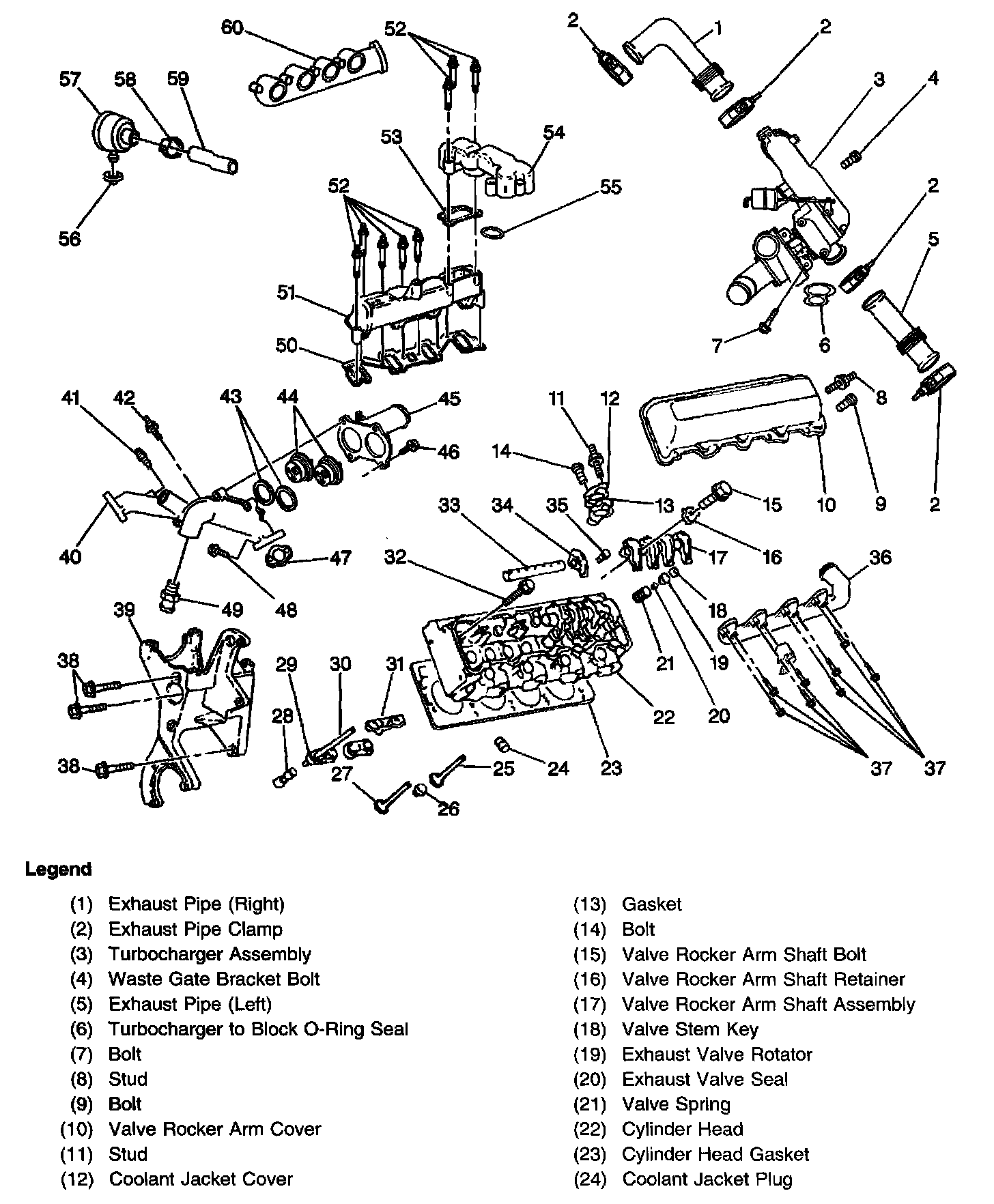

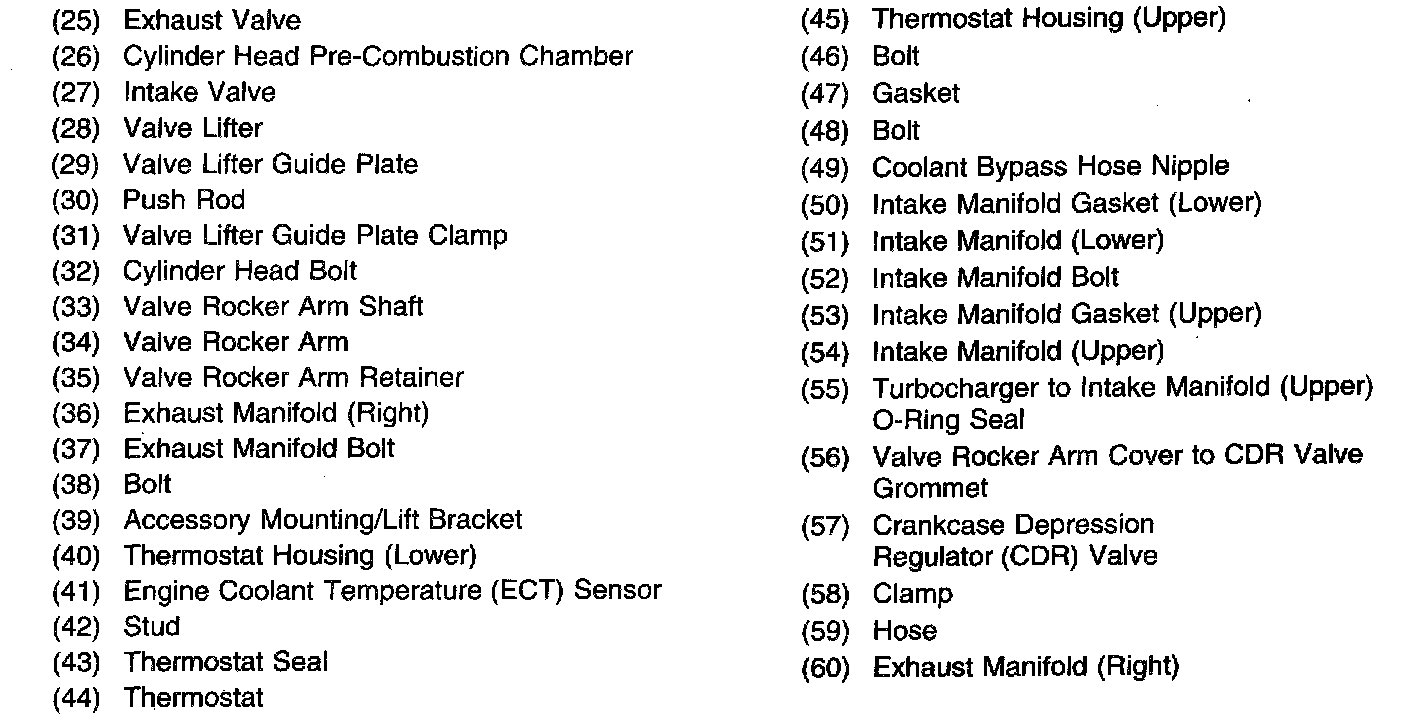

Cylinder Head and Components

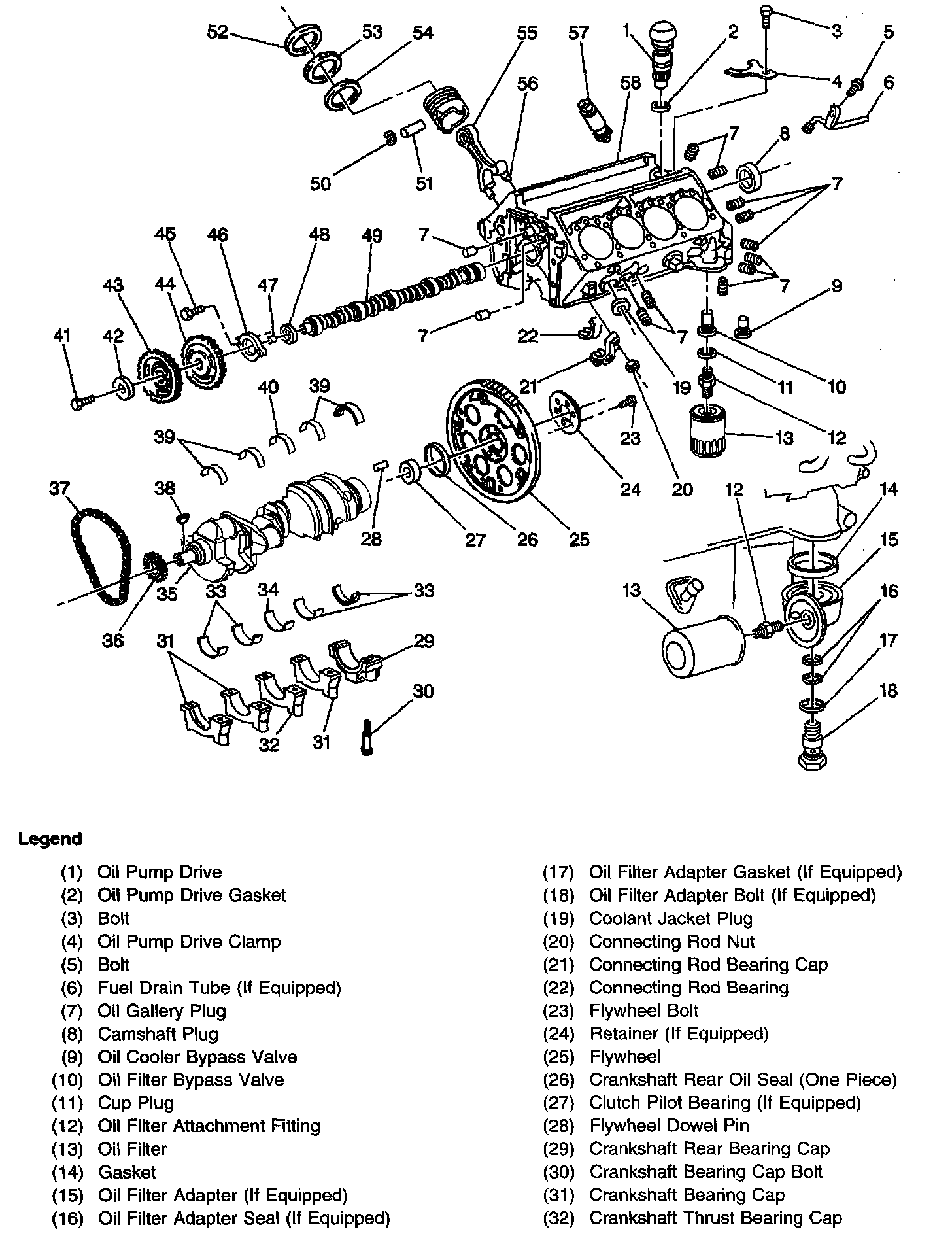

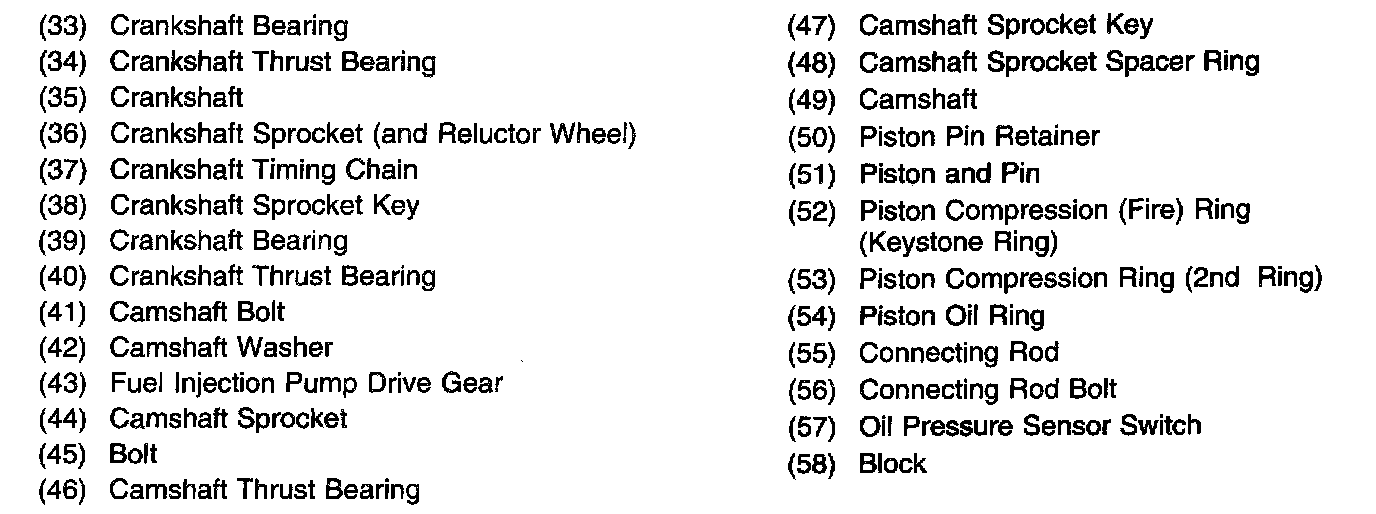

Cylinder Block and Components

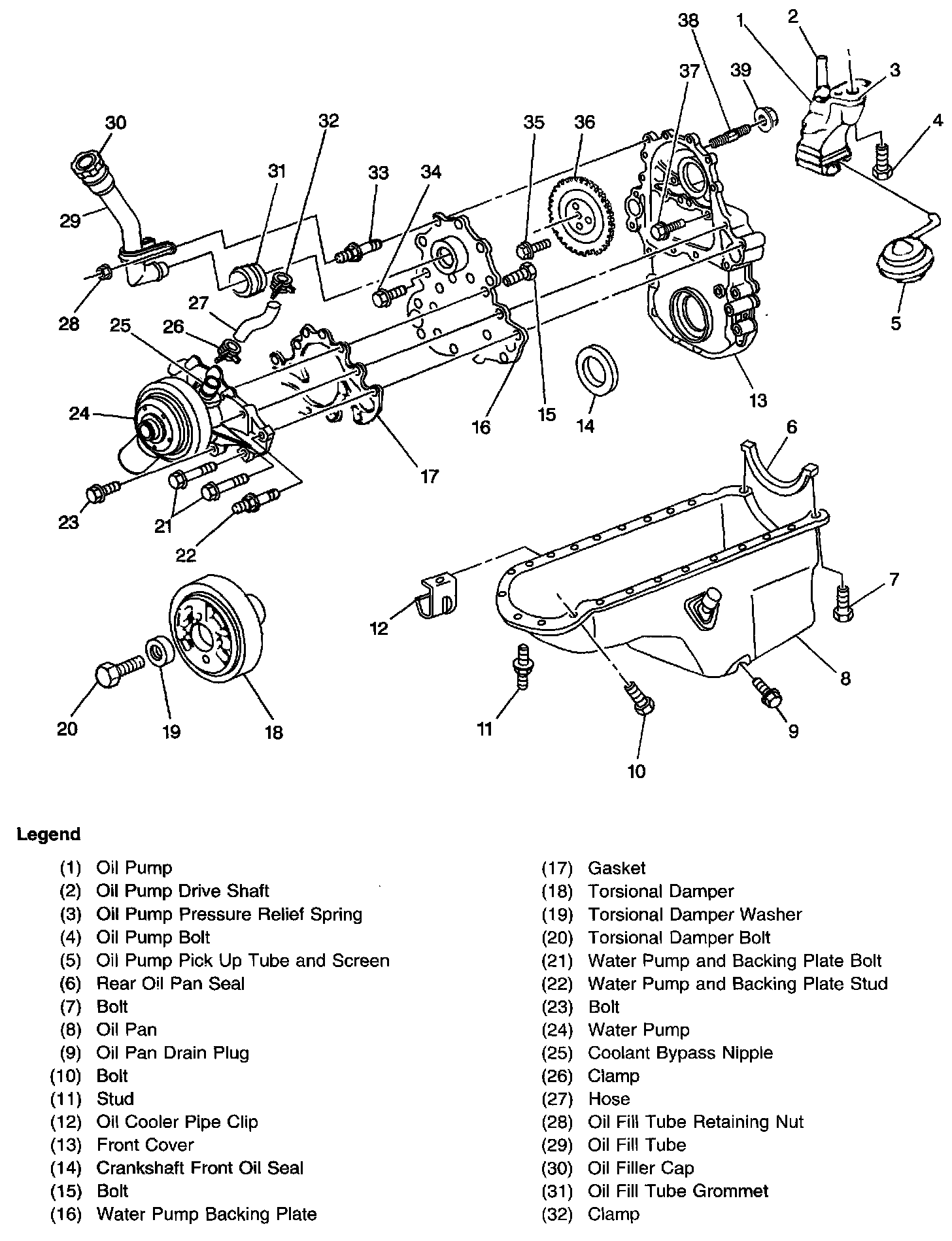

Front Cover, Oil Pan, and Components

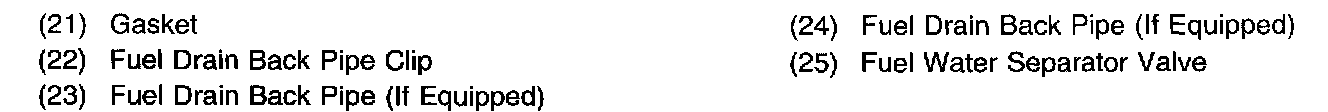

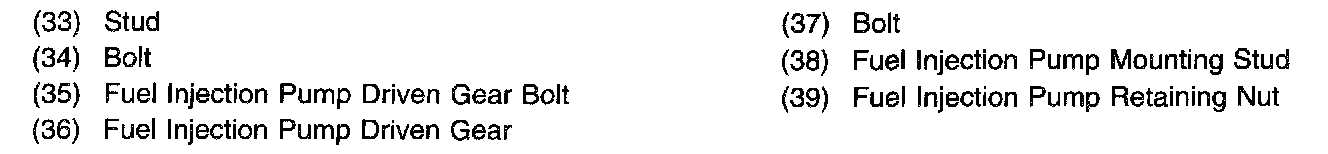

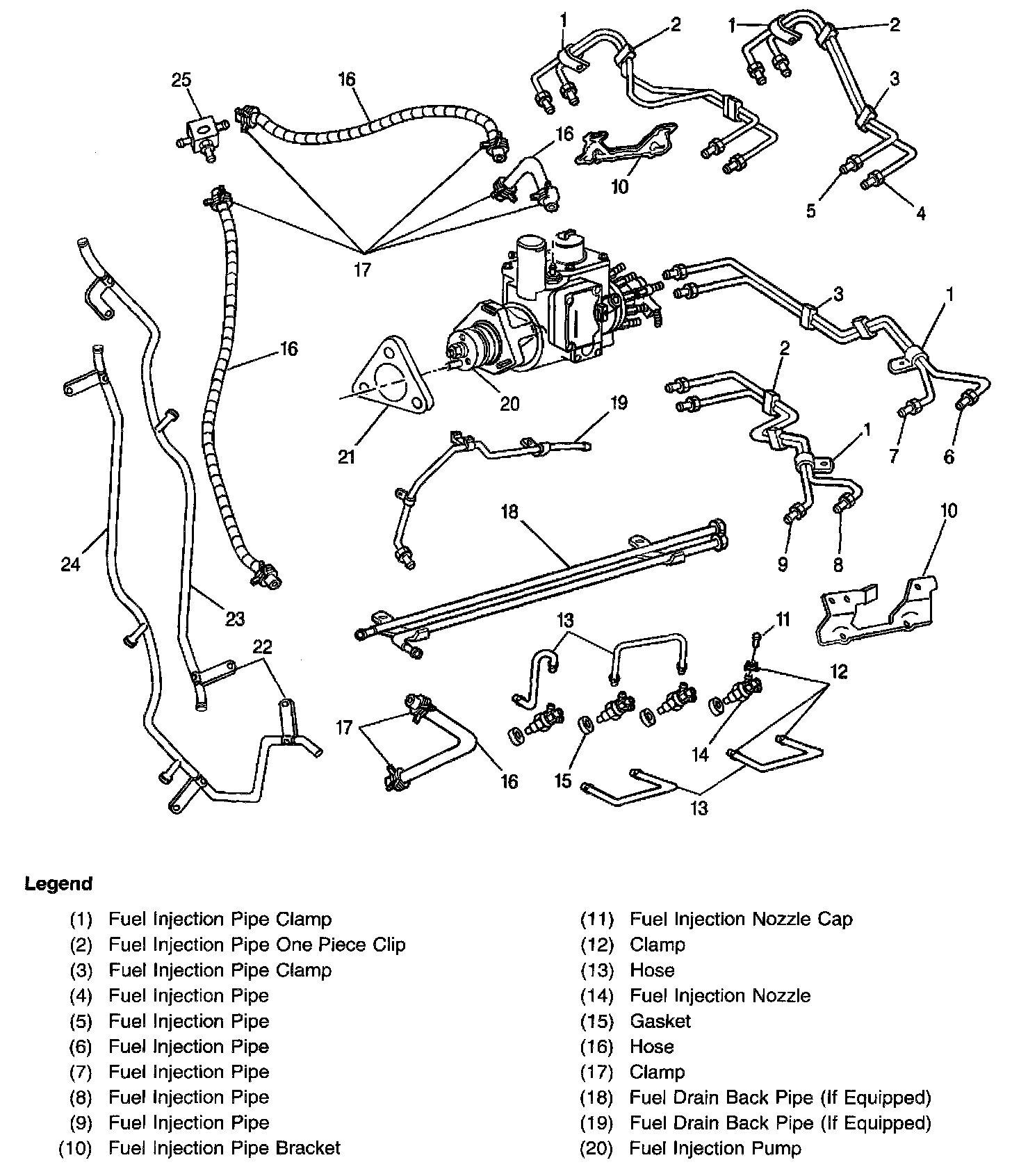

Fuel Systems Components
