Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
A/C COMPRESSOR
A/C COMPRESSOR
Power Distribution Schematics: Battery, Auxiliary Battery And Underhood Fuse/Relay Center:

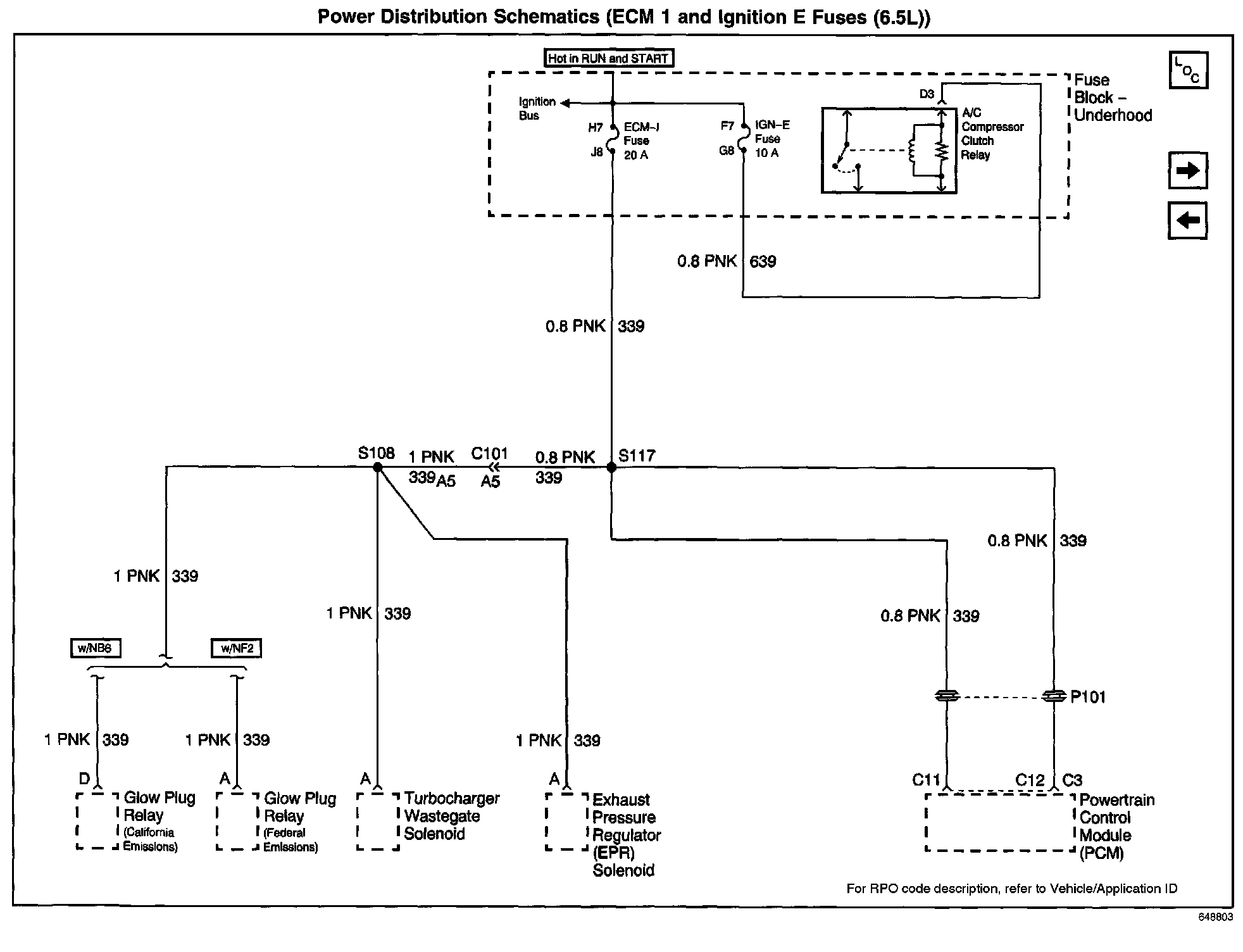

Power Distribution Schematics: ECM 1 And Ignition E Fuses (6.5L):
