Glow Plug Controls - Federal Emissions

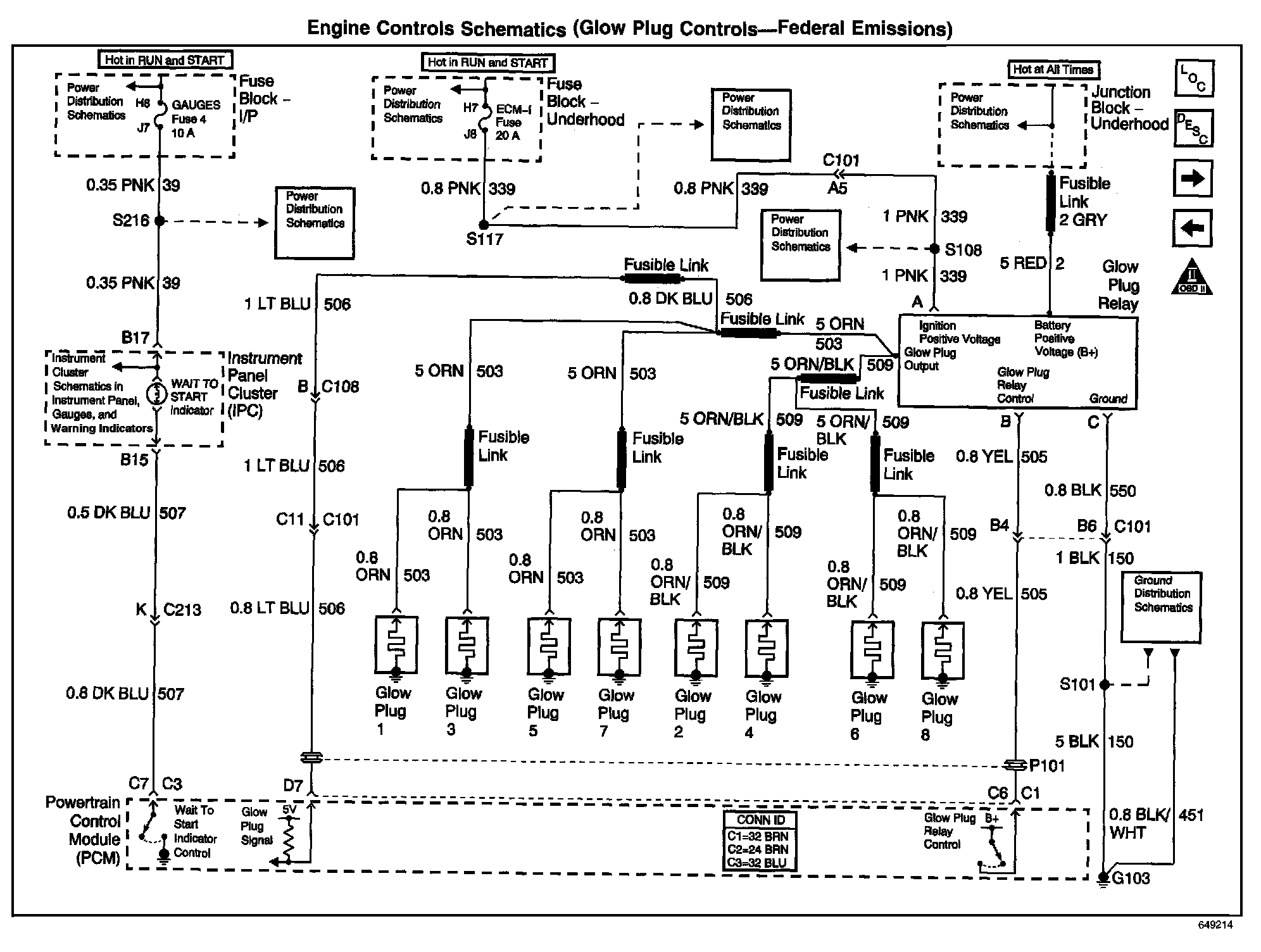

Engine Controls Schematics: Glow Plug Controls-Federal Emissions:
