Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Standard Models (Non-Alternative Fuels) >> Fuel Temperature Controls, ITS Motor

Fuel Temperature Controls, ITS Motor

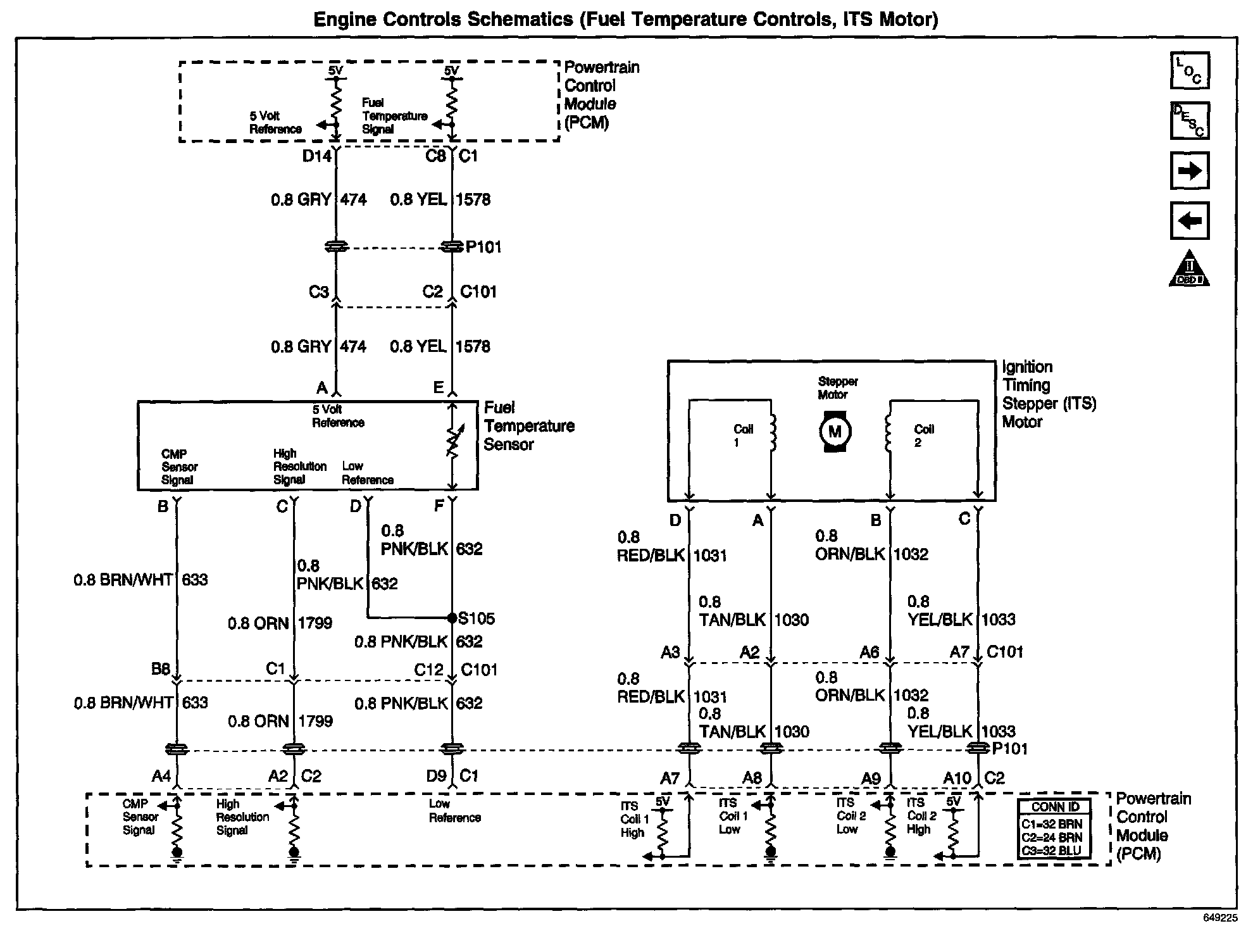

Engine Controls Schematics: Fuel Temperature Controls, ITS Motor:
