Cruise Control, Charging System and HVAC References

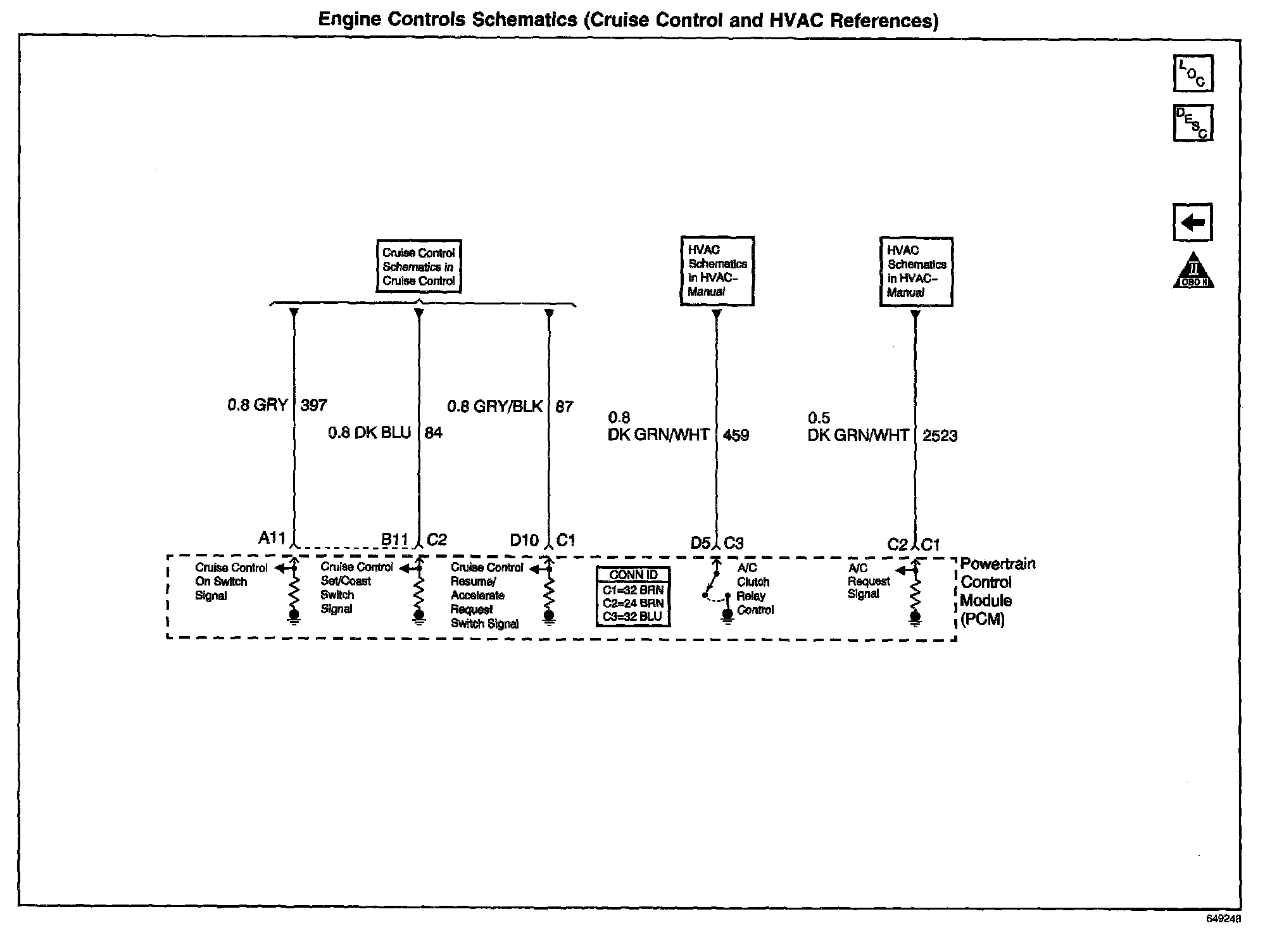

Engine Controls Schematics: Cruise Control And HVAC References:
