Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Schematics >> Indicators 1 of 2

Indicators 1 of 2

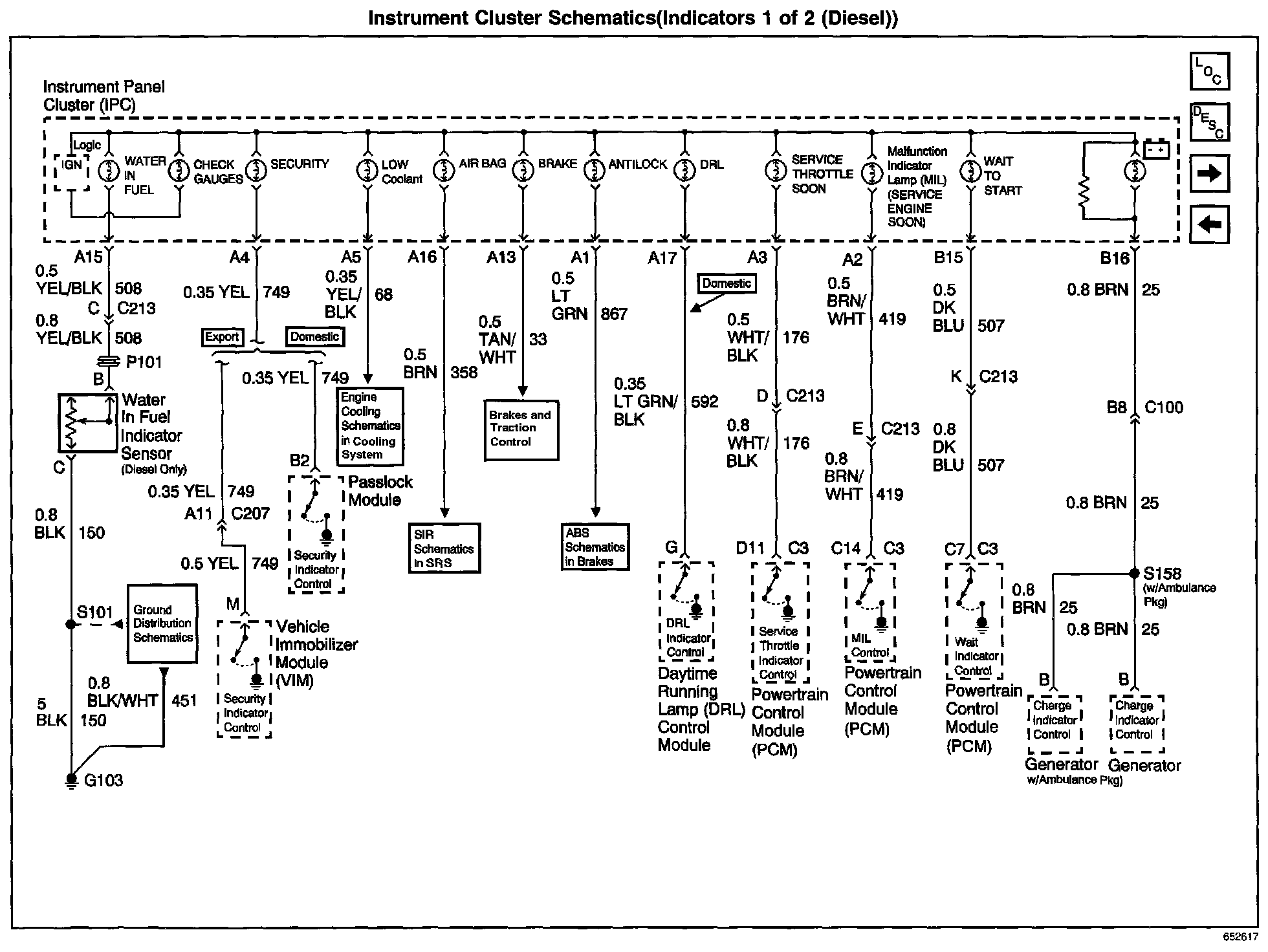

Instrument Cluster Schematics: Indicators 1 Of 2:
