Fuel Sender Buffer Module

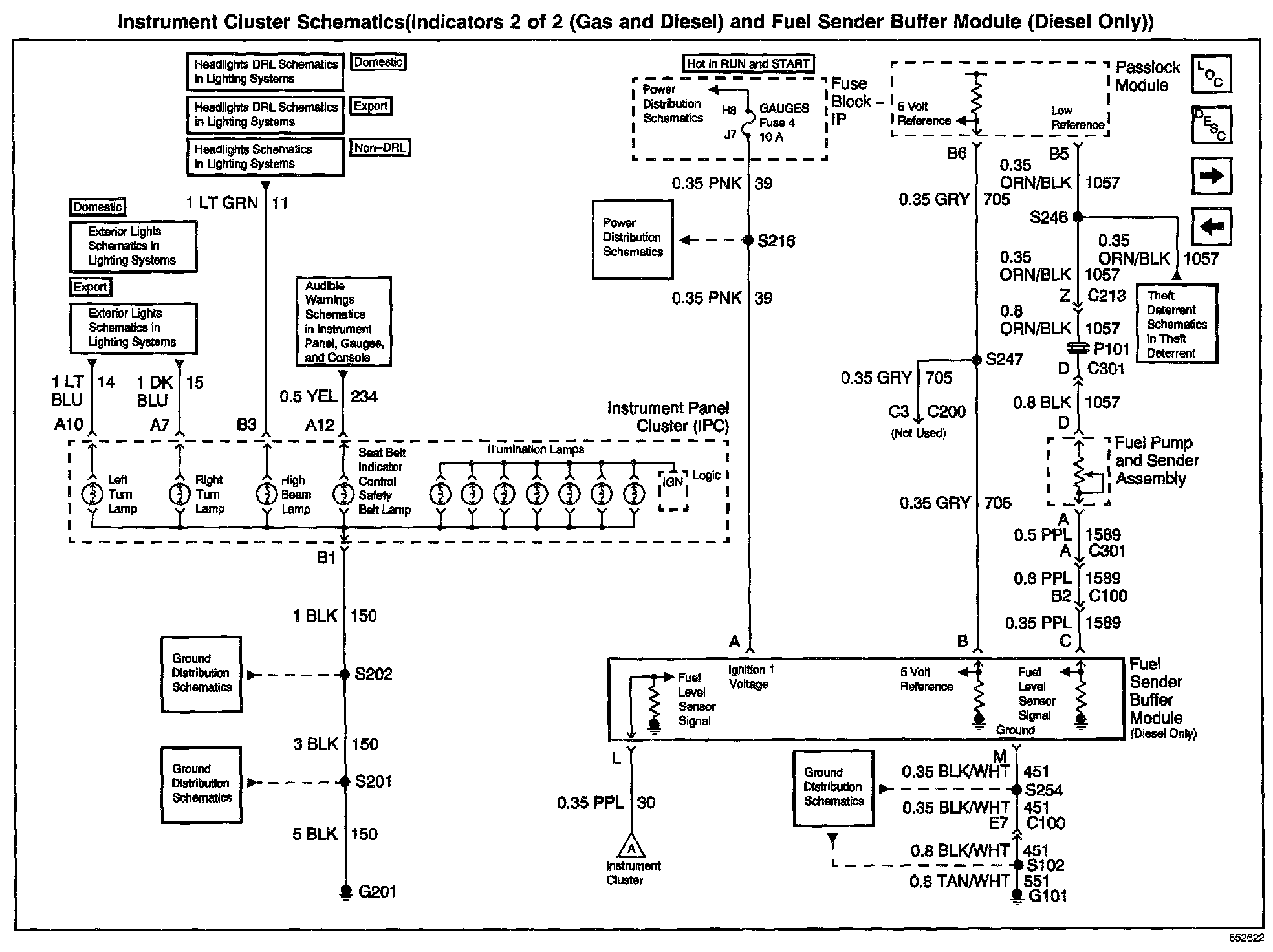

Instrument Cluster Schematics: Indicators 2 Of 2 And Fuel Sender Buffer Module:
