Express 1 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Compressor Controls
>>
A/C Fuses; ECM-B IGN-E Compressor Clutch G101, G103
A/C Fuses; ECM-B IGN-E Compressor Clutch G101, G103

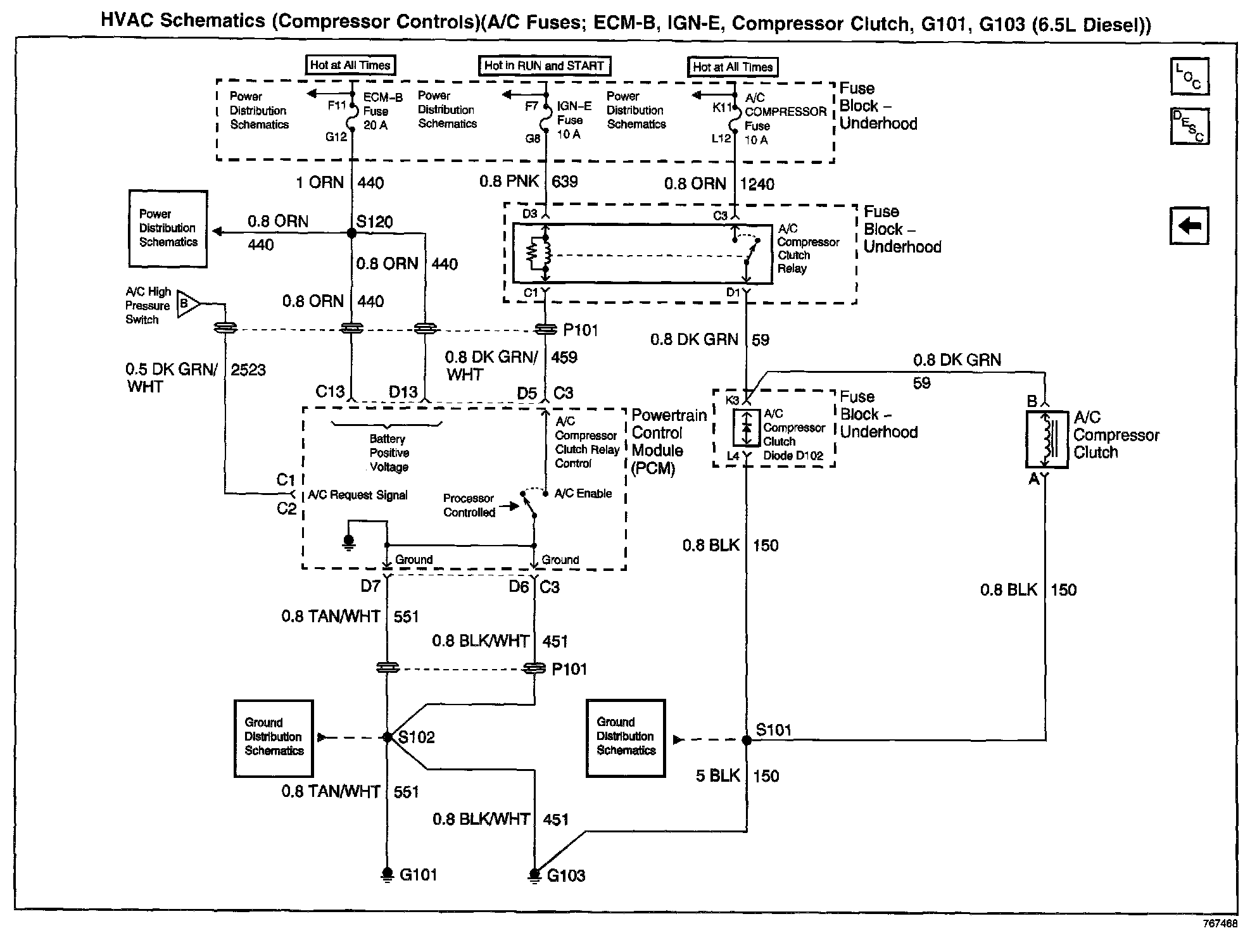

HVAC Schematics: Compressor Controls (A/C Fuses; ECM-B, IGN-E, Compressor Clutch, G101, G103):
