Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuel Filter/Manager (Filter Inside)

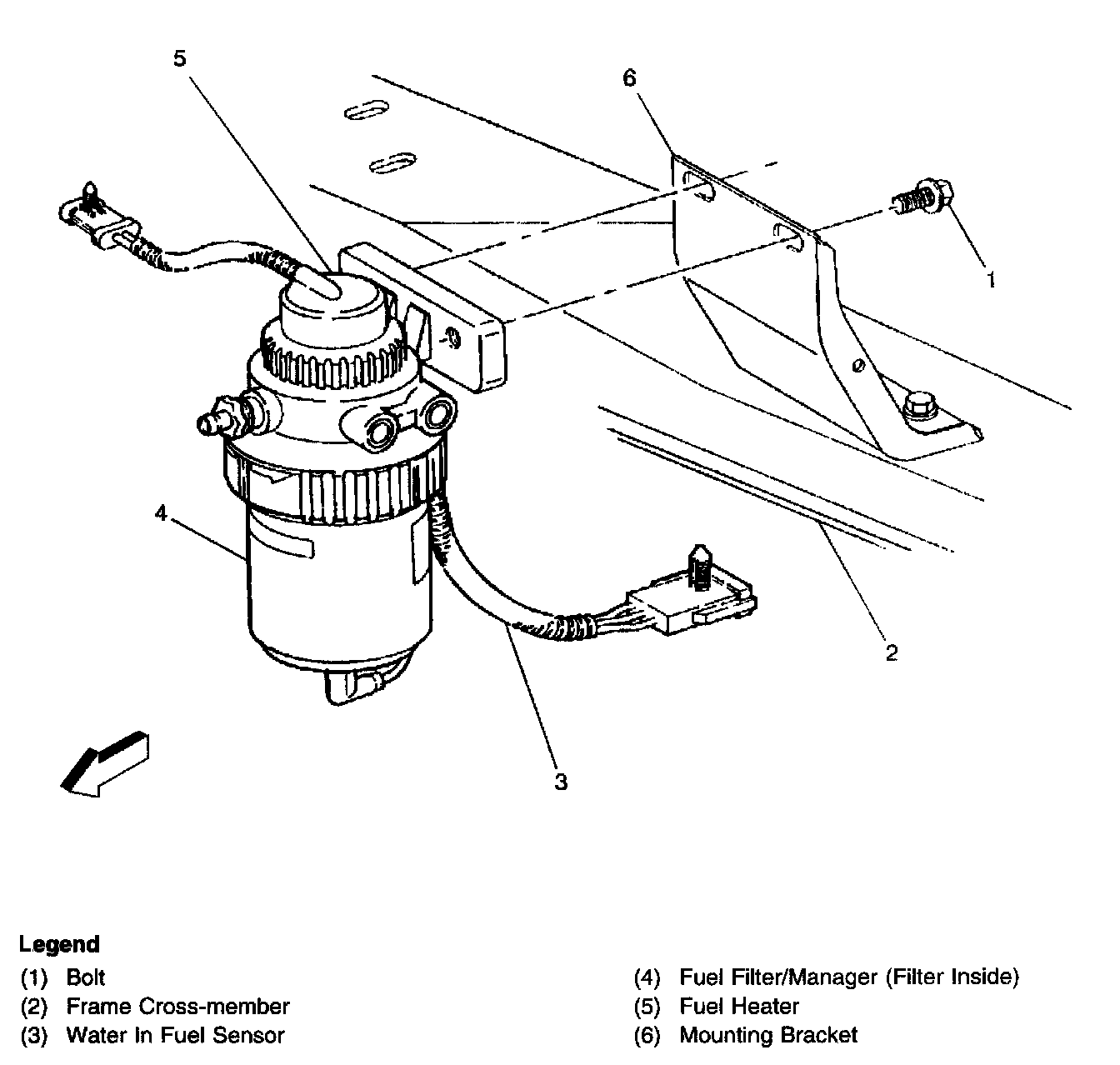

Fuel Filter/Manager (Filter Inside)

Locations View:
