Not Using J 42958 Cruise Control Tester

DIAGNOSTIC AIDS

IMPORTANT: Perform the following in order to avoid misdiagnosis.
^ Inspect for proper operation of brake lamps and clutch switch, if equipped.
^ EM on the speed sensor signal circuit may cause erratic cruise control operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
The vehicle speed is greater than 40 km/h (25 mph).

TEST DESCRIPTION

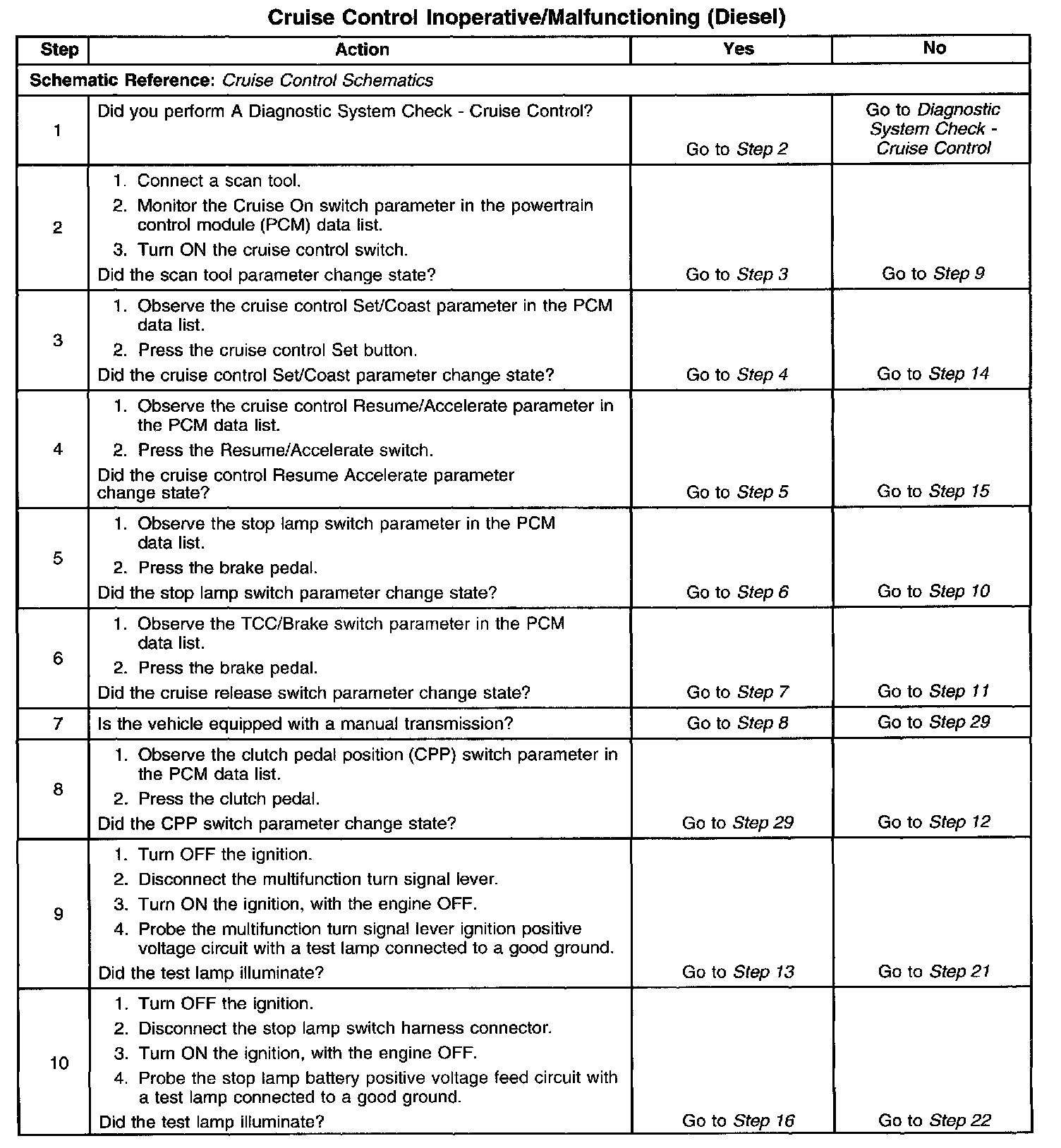

Steps 1-10:




Steps 11-24:

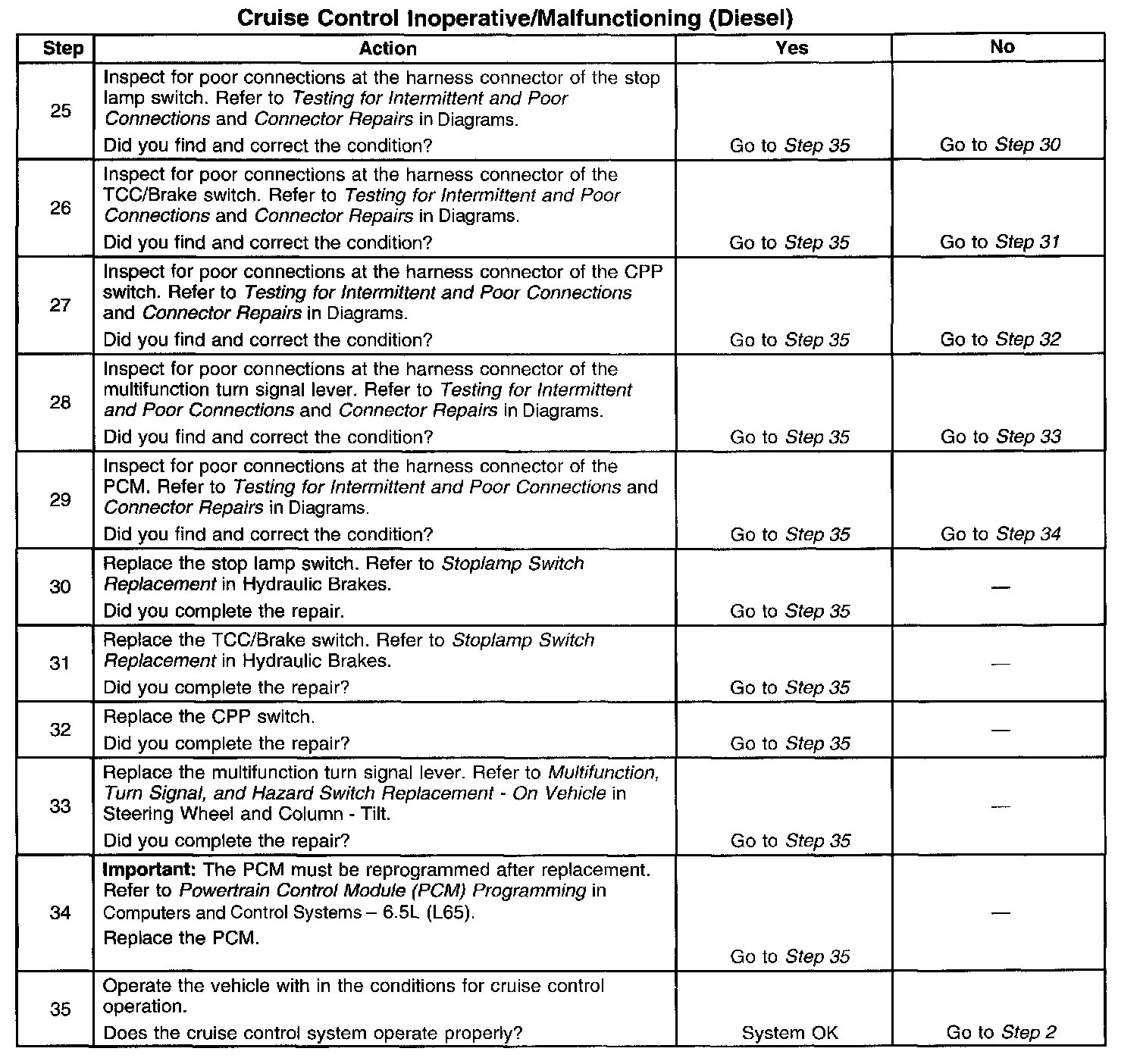

Steps 25-35:
