P1217
CIRCUIT DESCRIPTIONThe injection pump delivers fuel to the individual cylinders by opening and closing a solenoid control fuel valve. The Powertrain Control Module (PCM) monitors the amount of time the fuel solenoid valve takes to physically close after commanded to close. Any closure time that is out of range is seen as a fault. This response time is measured in milliseconds.
CONDITION FOR RUNNING THE DTC
^ The battery voltage is more than 10 volts and less than 16 volts.
^ The Engine Coolant Temperature (ECT) is more than -1°C (34°F).
^ The engine speed is more than 506 RPM.
^ The requested fuel rate is more than 0 mm.
CONDITIONS FOR SETTING THE DTC
The closure time is more than 2.5 milliseconds.
ACTION TAKEN WHEN THE DTC SETS
^ The control module stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
^ The driver information center, if equipped, may display a message.
CONDITIONS FOR CLEARING THE DTC
^ A current DTC Last Test Failed clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ Use a scan tool in order to clear the DTC.
DIAGNOSTIC AIDS
A weak (mechanical failure) fuel solenoid will result in a DTC P1217. If DTC P1217 is set with any other DTCs, diagnose them first. If the vehicle is running close to the DTC setting closure time, the vehicle should be checked during cold start ups and during hot conditions.
Poor performance and starting conditions will exist.
TEST DESCRIPTION

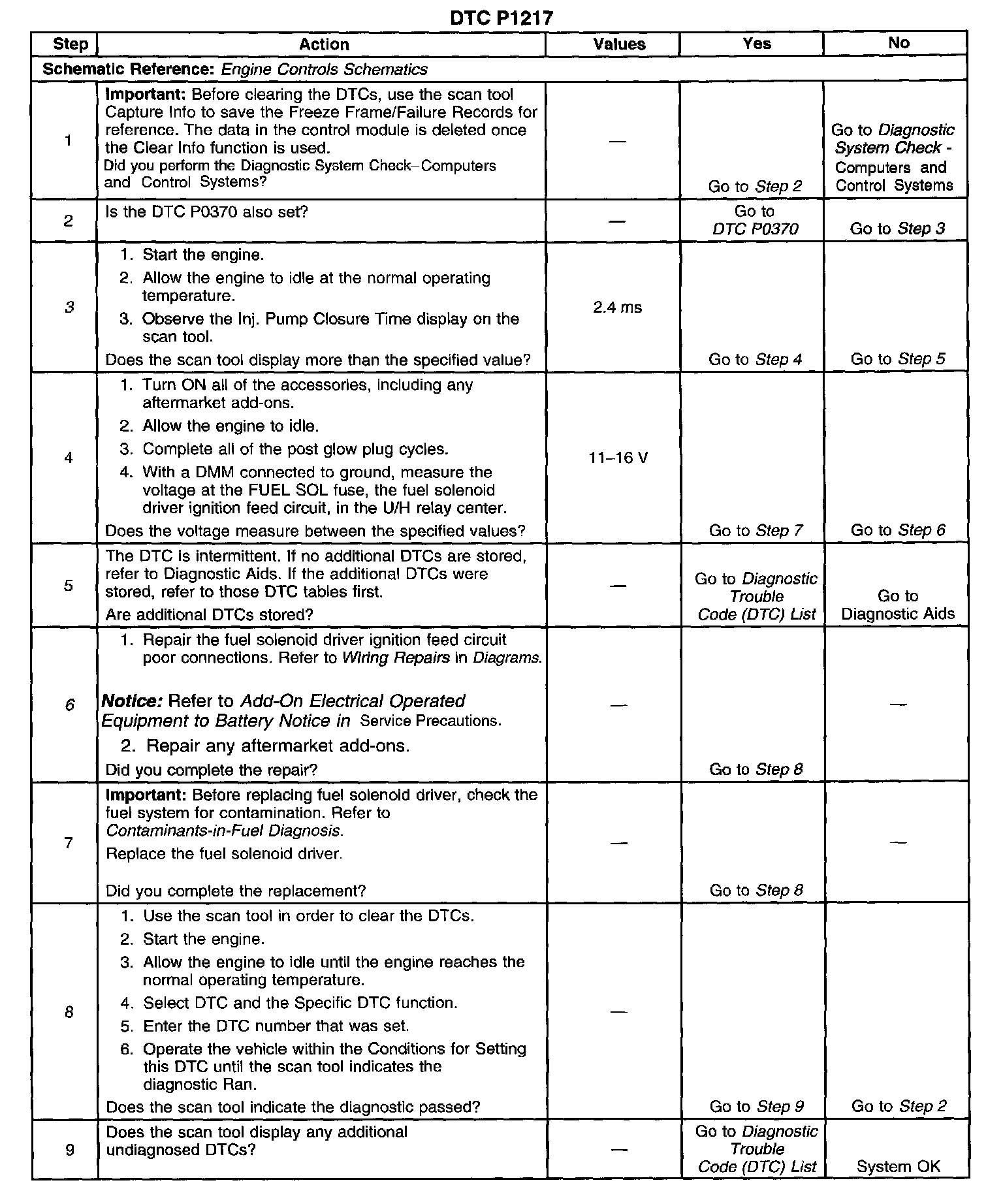

Steps 1-9:
The numbers below refer to the step numbers on the diagnostic table.
3. This step determines if DTC P1217 is a hard failure or an intermittent.
6. This step determines if the solenoid is malfunctioning, or if there is a problem with the PCM or wiring.
