Connecting Rod Replacement

Connecting Rod Replacement

- Tools Required
- J 24319-B Universal Steering Linkage Puller
- J 29193 Steering Linkage Installer (12 mm)

Removal Procedure

Important: Use the proper tool in order to separate the ball studs.





1. Raise the vehicle. Support the vehicle with suitable safety stands.
2. Remove the prevailing torque nut (1) from the relay rod (2) ball stud at the pitman arm.
Discard the prevailing torque nut (1).





3. Use the J 24319-B in order to remove the connecting rod from the relay rod.
4. Remove the prevailing torque nut from the connecting rod ball stud at the pitman arm.
Discard the prevailing torque nut.
5. Use the J 24319-B in order to remove the connecting rod from the pitman arm.
6. Remove the connecting rod from the vehicle.
7. Inspect the ball stud threads for damage.
8. Inspect the ball stud seals for excessive wear.
9. Clean the threads on the ball stud.

Installation Procedure





1. Install the connecting rod to the pitman arm.

Notice: Refer to Fastener Notice in Service Precautions.

2. Use the J 29193 in order to seat the connecting rod ball stud to the pitman arm.
Ensure that the seal is on the ball stud.
- Tighten the J 29193 to 54 Nm (40 ft. lbs.) in order to seat the tapers.
3. Remove the J 29193.

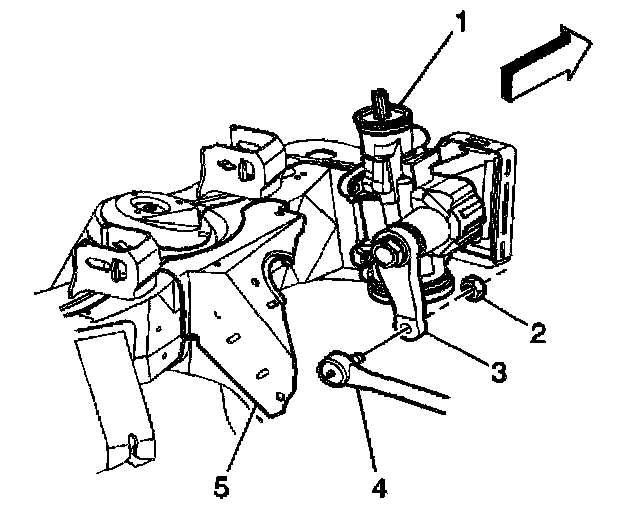

4. Install the new prevailing torque nut (2) to the connecting rod (4) ball stud at the pitman arm.
- Tighten the nut to 47 Nm (35 ft. lbs.).





5. Use the J 29193 in order to seat the tapers at the connecting rod ball stud to the relay rod.
Ensure that the seal is on the stud.
- Tighten the J 29193 to 54 Nm (40 ft. lbs.) in order to seat the tapers.
6. Remove the J 29193.





7. Install the new prevailing torque nut (3) to the ball stud.
- Tighten the nut to 47 Nm (35 ft. lbs.).
8. Install the grease fitting, if equipped.
Grease the steering linkage.
9. Remove the safety stands.
10. Lower the vehicle.
11. Check the wheel alignment.
