Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click

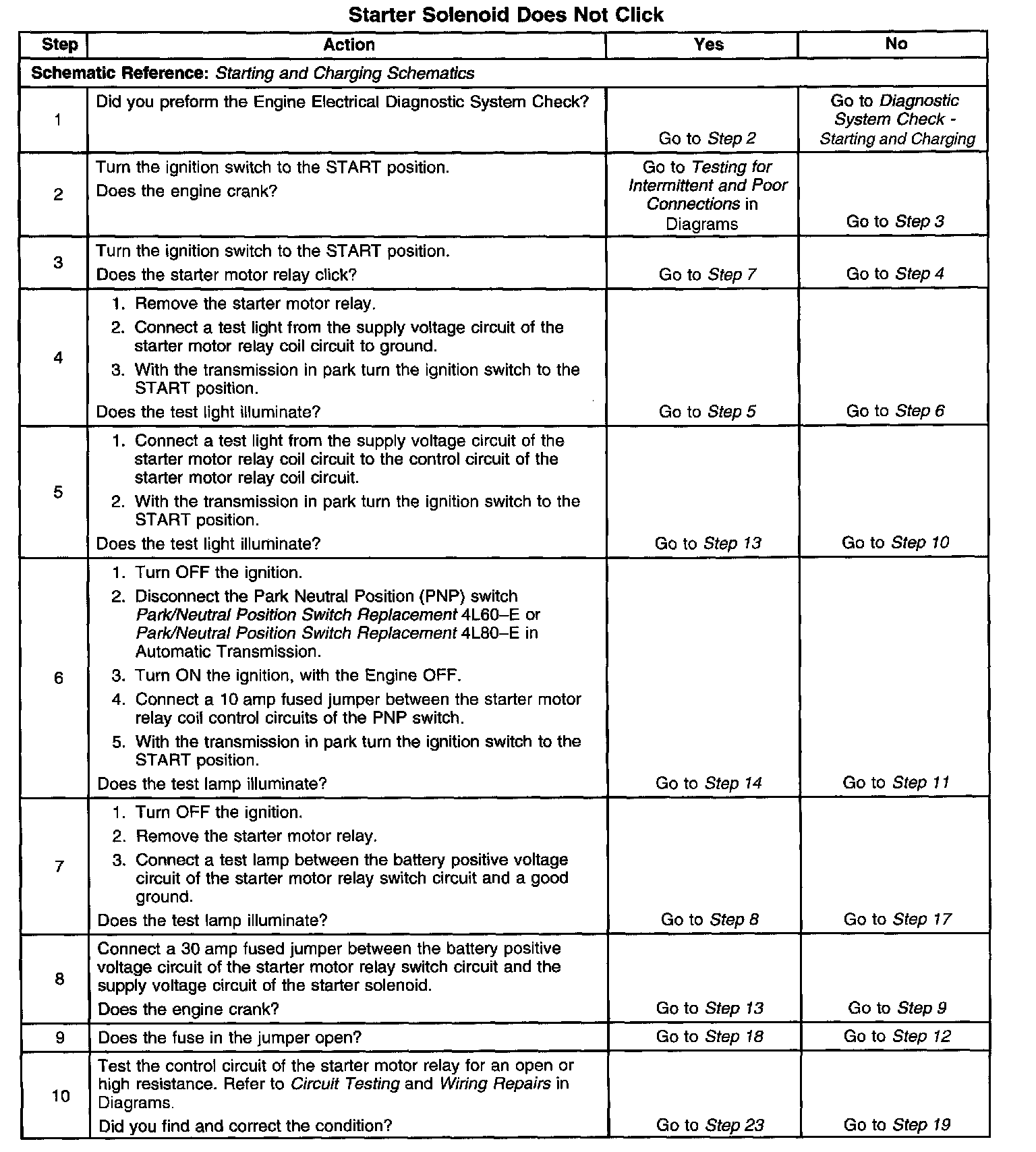

Steps 1-10:

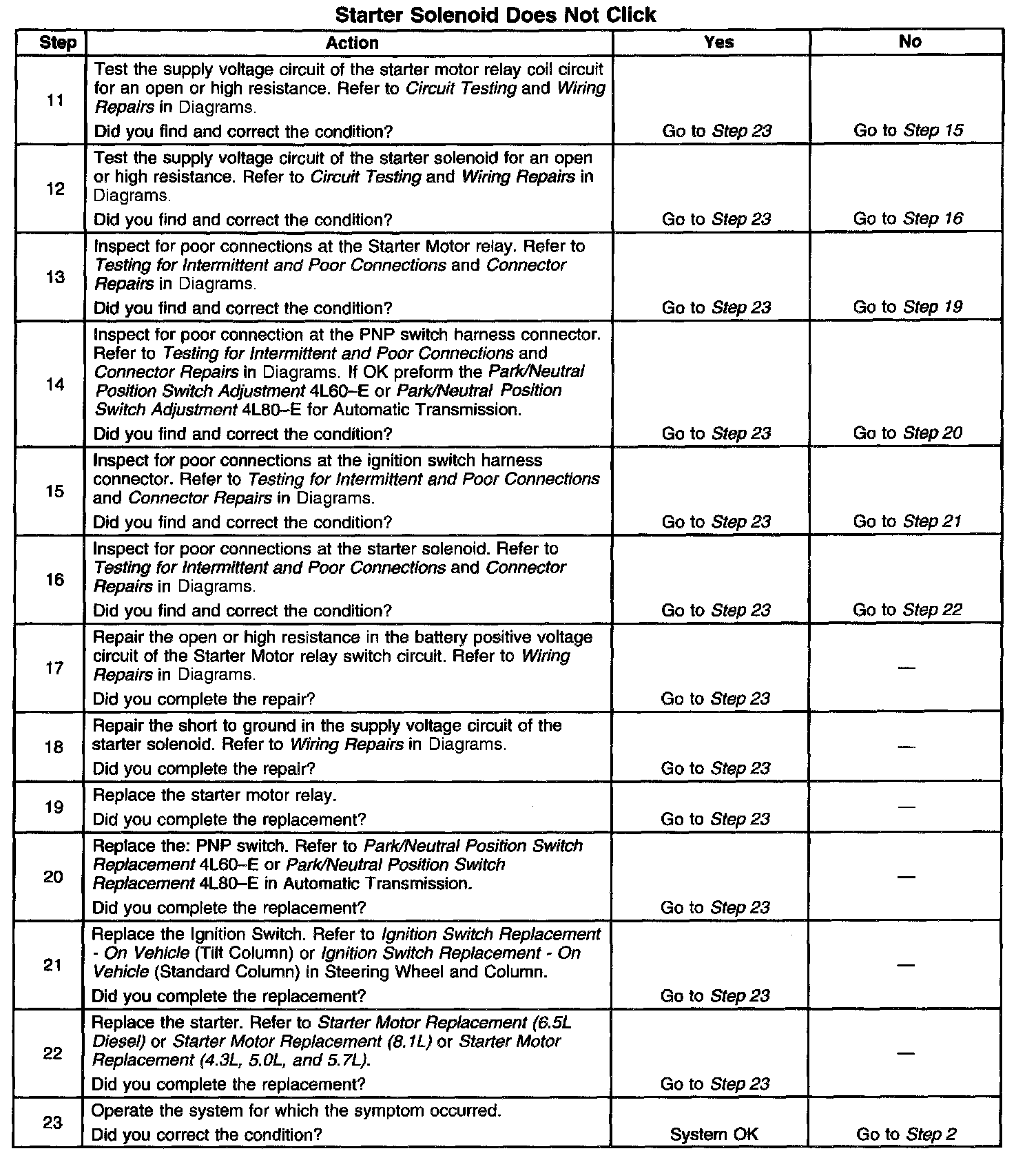

Steps 11-23:
