Fill Valve Access Cover Replacement

REMOVAL PROCEDURE

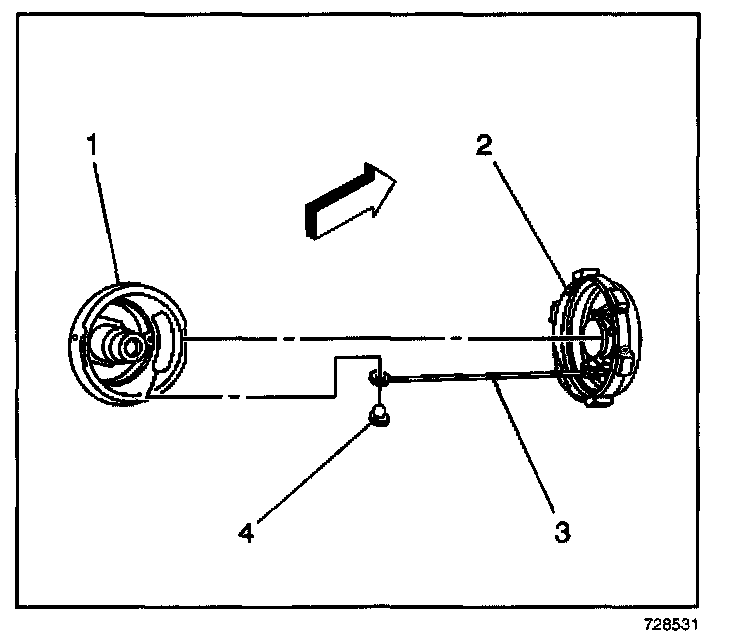

1. Remove fill valve cover (2) from the mounting cup (1).
2. Remove the fill valve cover tether (3) hold down pin (4) from the mounting cup (1).

INSTALLATION PROCEDURE




1. Install the fill valve cover tether (3) with the hold down pin (4) into the mounting cup (1).
2. Install the fill valve cover (2) to the mounting cup (1).
