Air Injection Pump: Diagrams

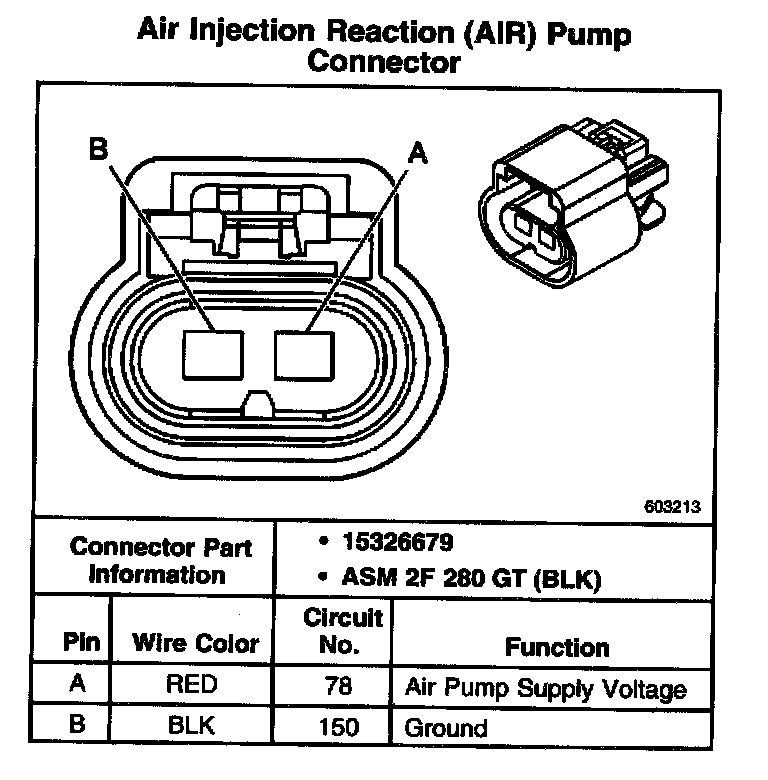

Air Injection Reaction (AIR) Pump Connector - Standard Models (Non-Alternative Fuels):
