Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Gages Inoperative - All - Standard Models (Non Alternative Fuels)

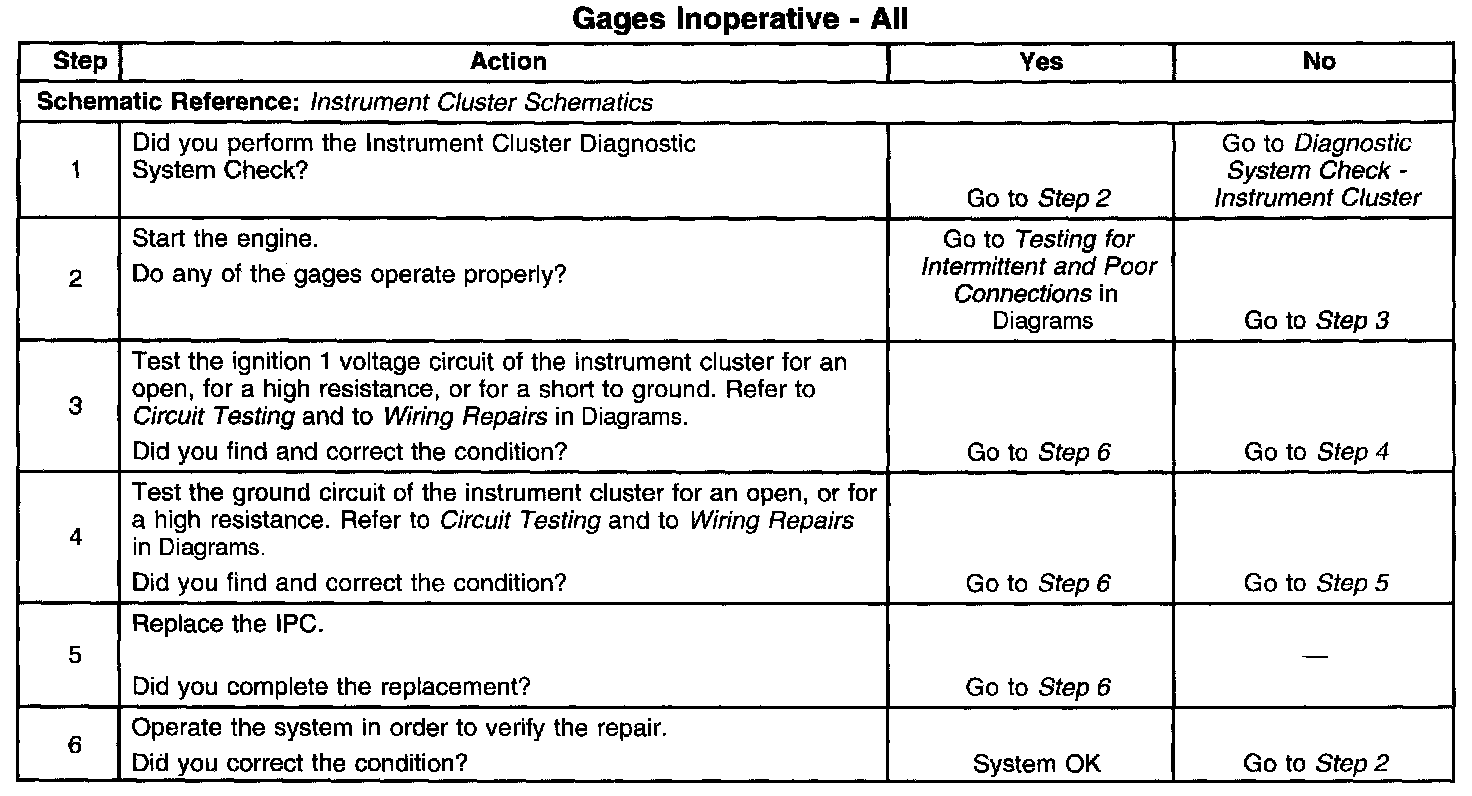

Gages Inoperative - All - Standard Models (Non Alternative Fuels)

Steps 1-6:
