Engine Coolant Temperature Gage Inaccurate or Inoperative - Standard Models (Non Alternative Fuels)
TEST DESCRIPTIONSteps 1-12:

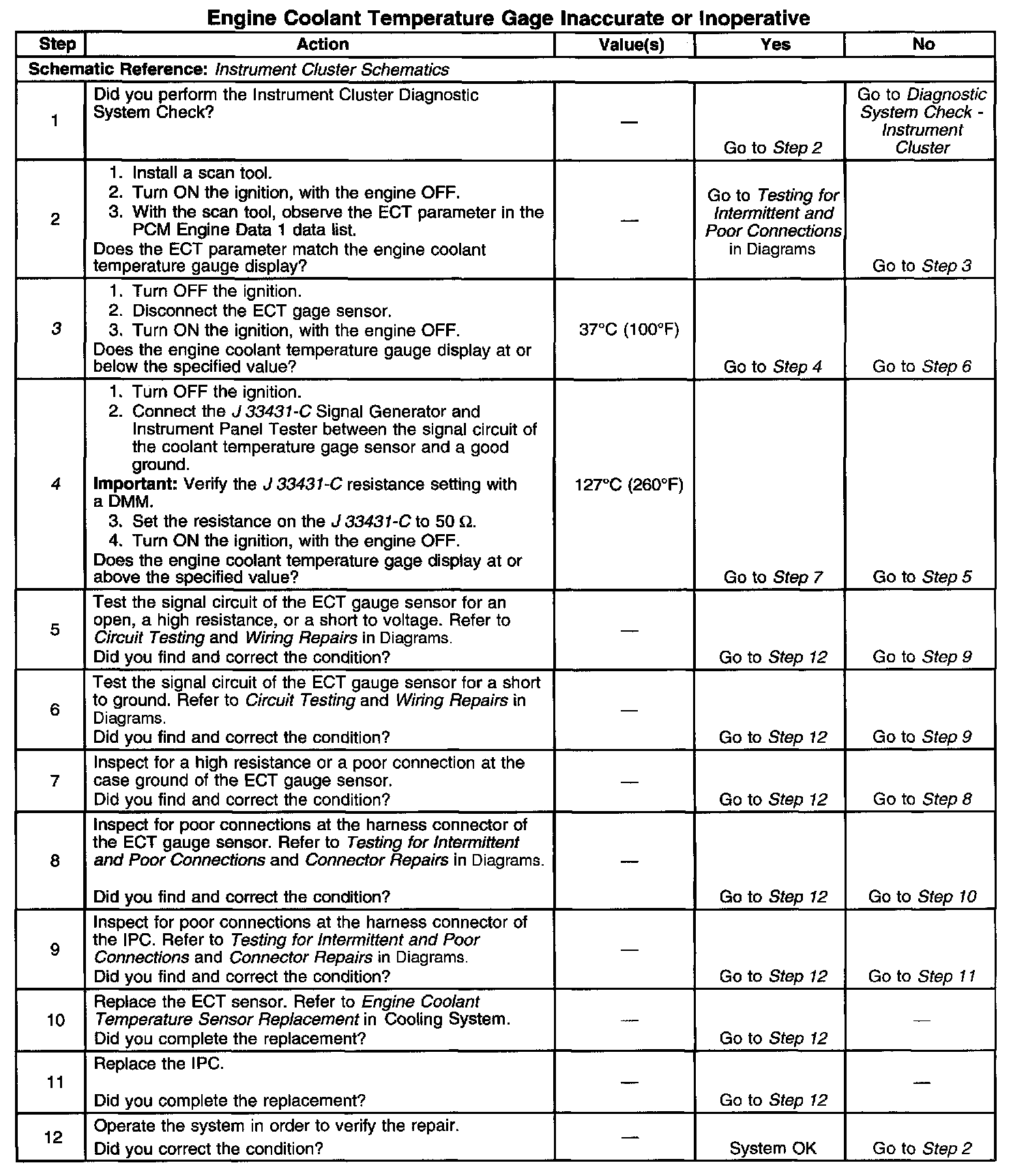

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a short to ground in the signal circuit.
4. This step tests for an open a high resistance, or a short to voltage in the signal circuit.
