Cylinder Head Replacement - Left

Cylinder Head Replacement - Left

- Tools Required
- J 36660-A Electronic Torque Angle Meter

Removal Procedure





1. Remove the drive belt.
2. Remove the A/C compressor from the power steering pump bracket, if equipped, and set aside.

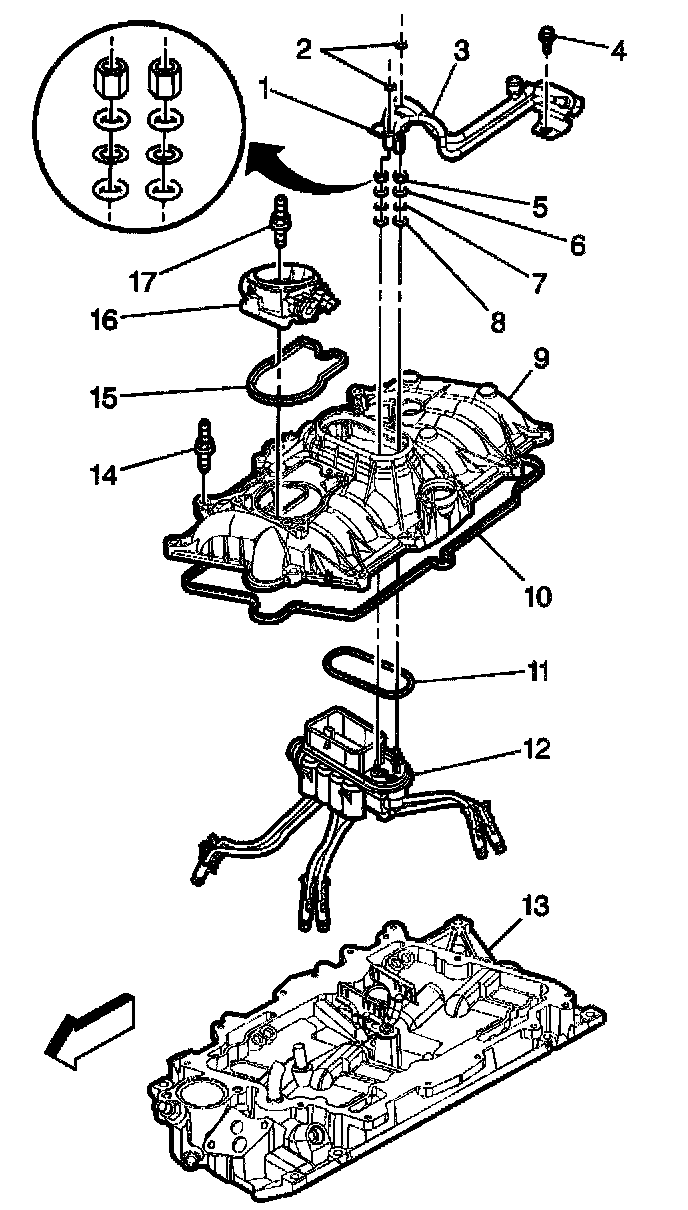

3. Remove the lower intake manifold.
4. Remove the exhaust manifold.
5. Remove the valve rocker arm cover.
6. Remove the valve rocker arms and valve push rods.
7. Remove the power steering pump pulley.
8. Remove the power steering pump mounting bracket.
9. Disconnect the wiring bracket (3) from the rear of the right cylinder head.
10. For the right side cylinder head, remove the following components:
10.1. Remove the generator.
10.2. Remove the generator and drive belt tensioner mounting bracket.
10.3. Remove the oil indicator tube.

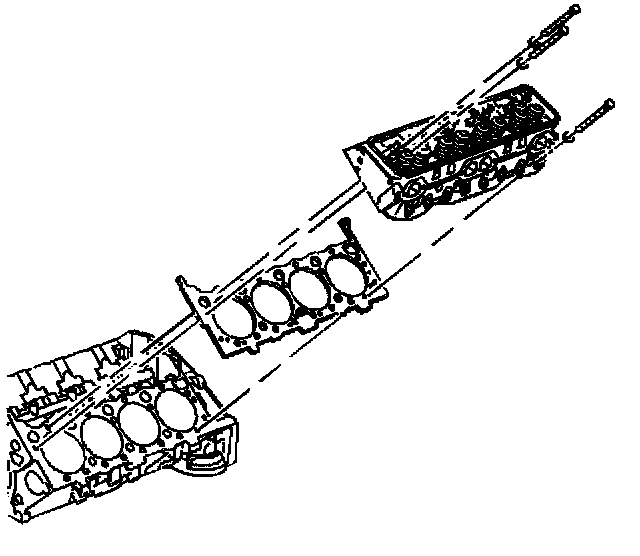

11. Remove the cylinder head and the gasket.
12. Clean all sealing surfaces.

Installation Procedure

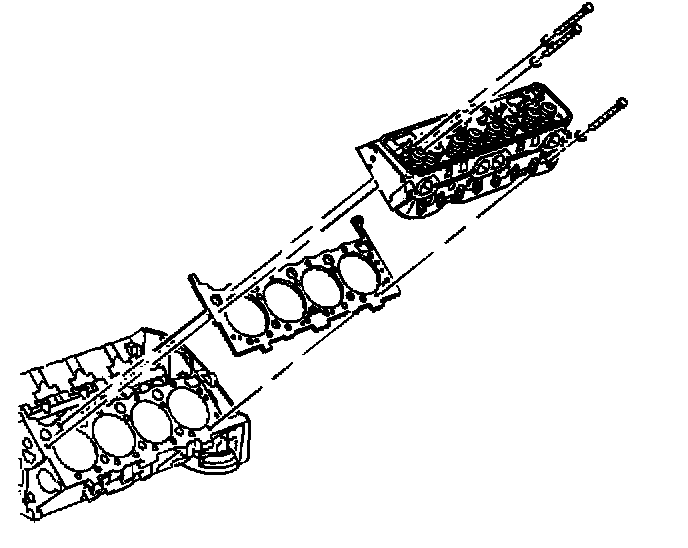

1. Install the cylinder head.
2. Install the valve rocker arms and the valve push rods.
3. For the left cylinder head, install the power steering pump mounting bracket.
4. Install the power steering pump pulley.
5. For the right cylinder head, install the generator and drive belt tensioner mounting bracket.
6. Install the exhaust manifold.
7. Install Oil Indicator Tube.
8. Install the lower intake manifold.
9. Install the valve rocker arm covers.
10. Install the A/C compressor, if equipped.
11. Install the drive belt.
