Steering Gear

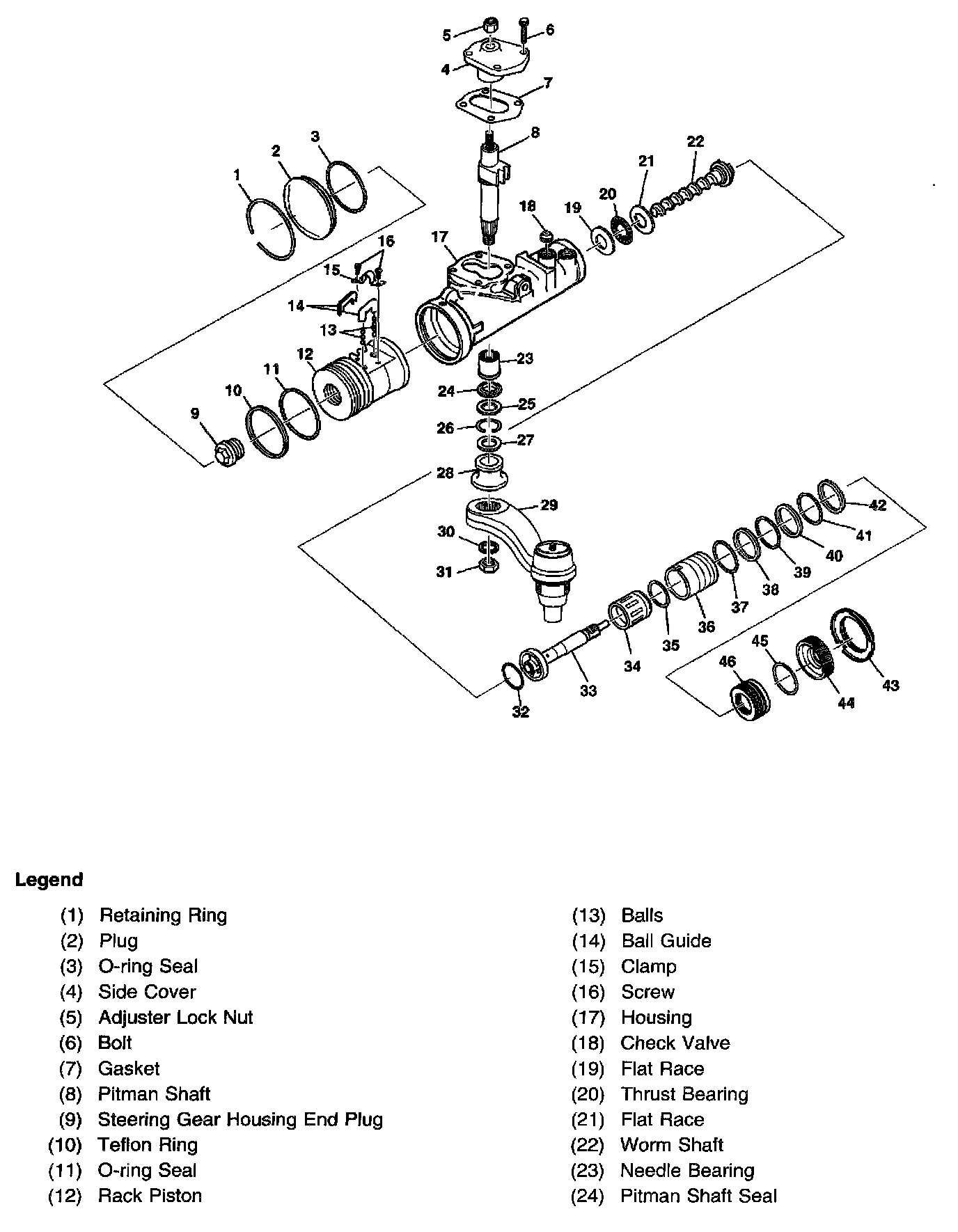

Power Steering Gear Disassembled View (700 Gear)





Part 1 of 3

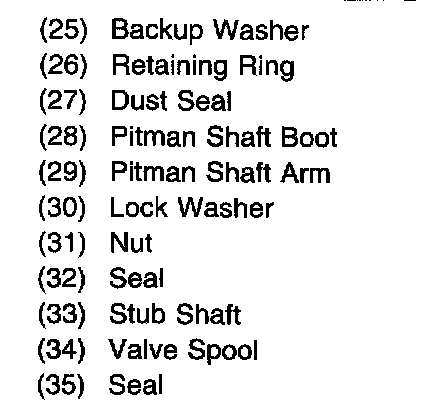

Part 2 of 3

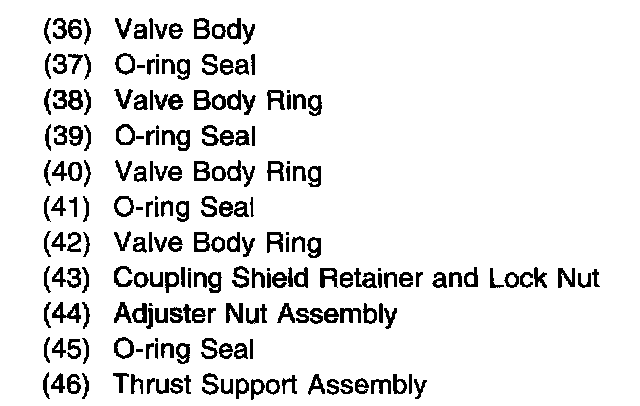

Part 3 of 3
