Fuel Controls, High Pressure Lock-Off Solenoids

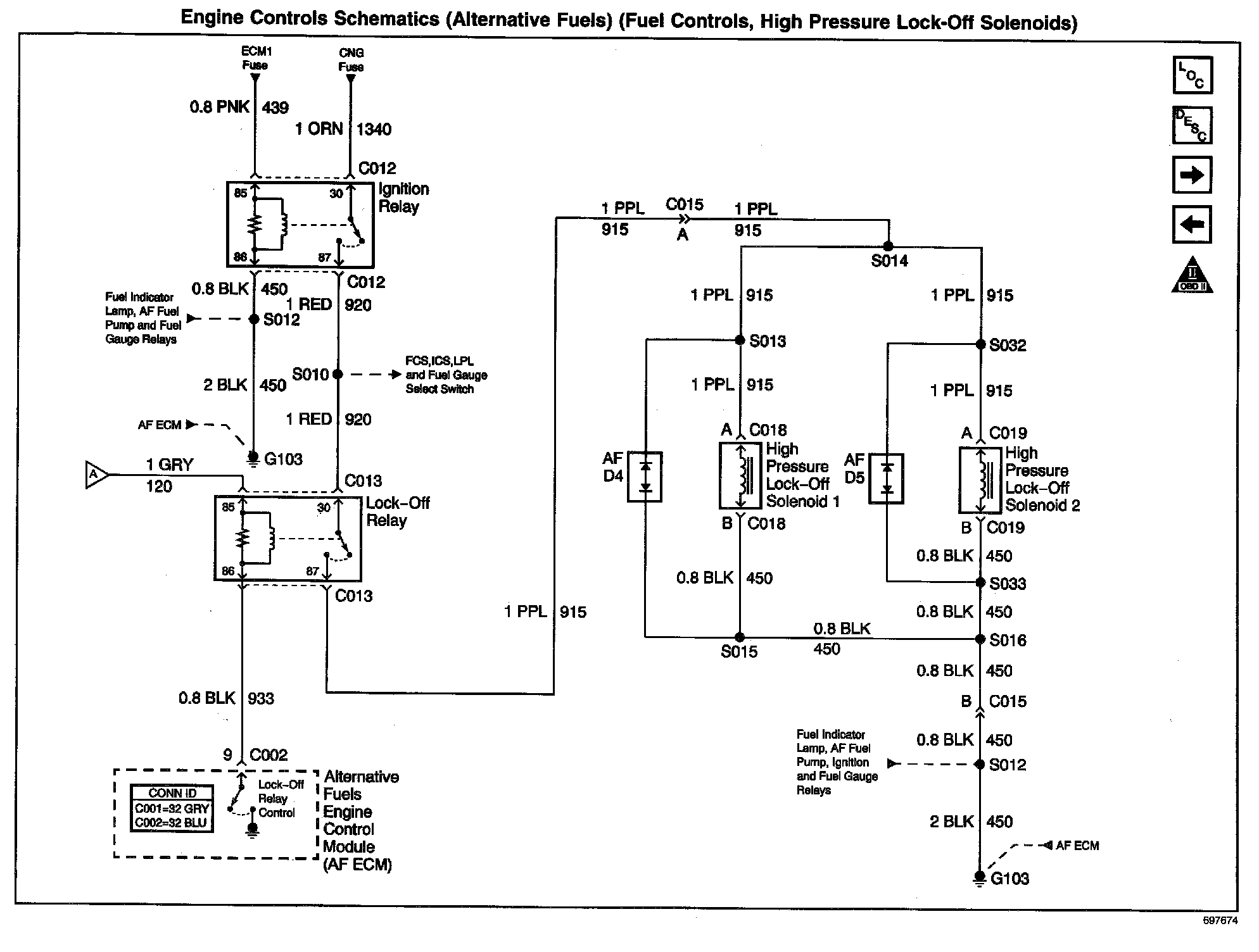

Engine Controls Schematics: Alternative Fuels (Fuel Controls, High Pressure Lock-Off Solenoids):
