Engine Data Sensors, ECT, IAT, TP And MAP
Engine Data Sensors, ECT, IAT, TP And MAP

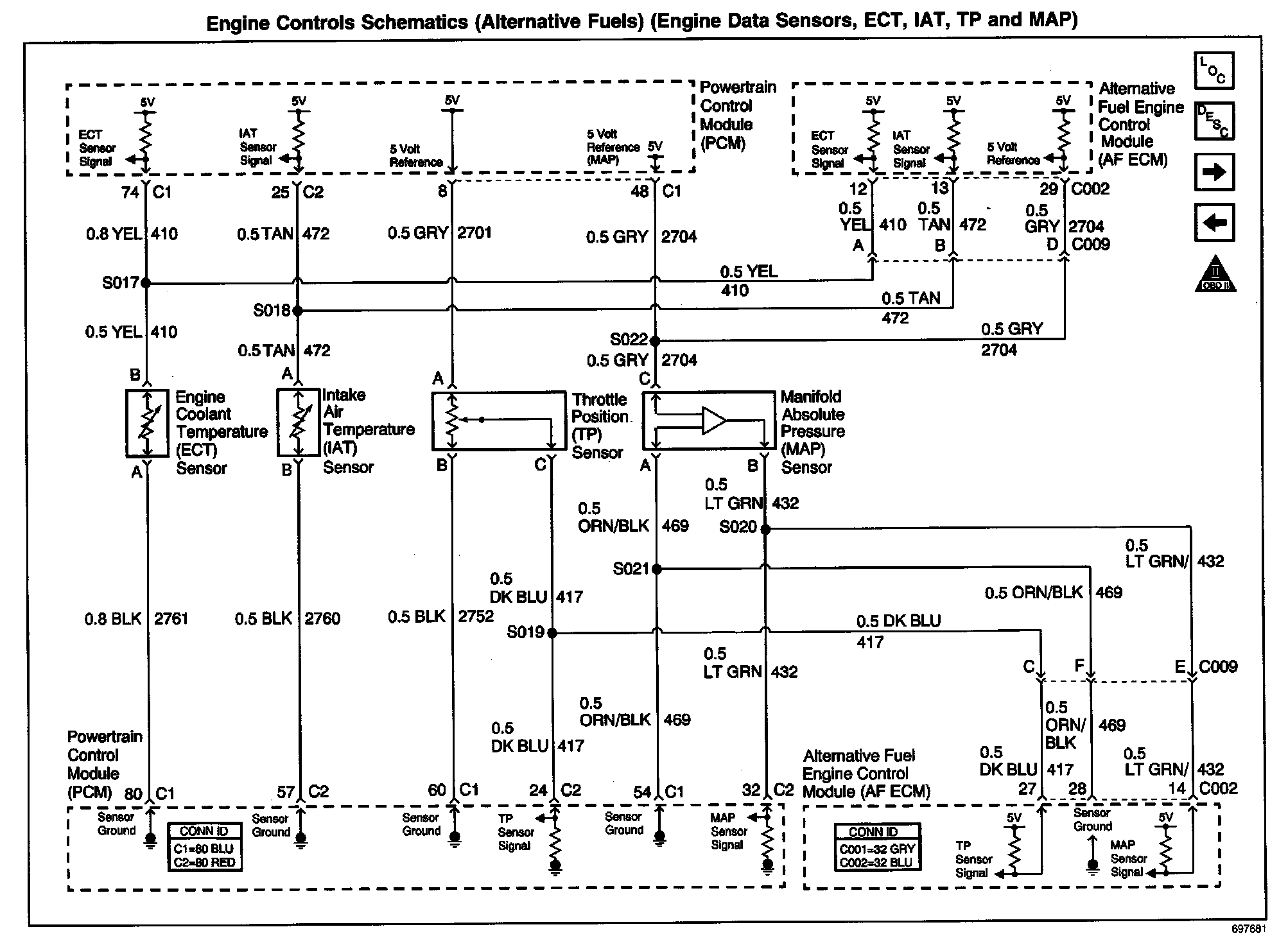

Engine Controls Schematics: Alternative Fuels (Engine Data Sensors, ECT, IAT, TP And MAP):
