Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Marker Lamp

Marker Lamp

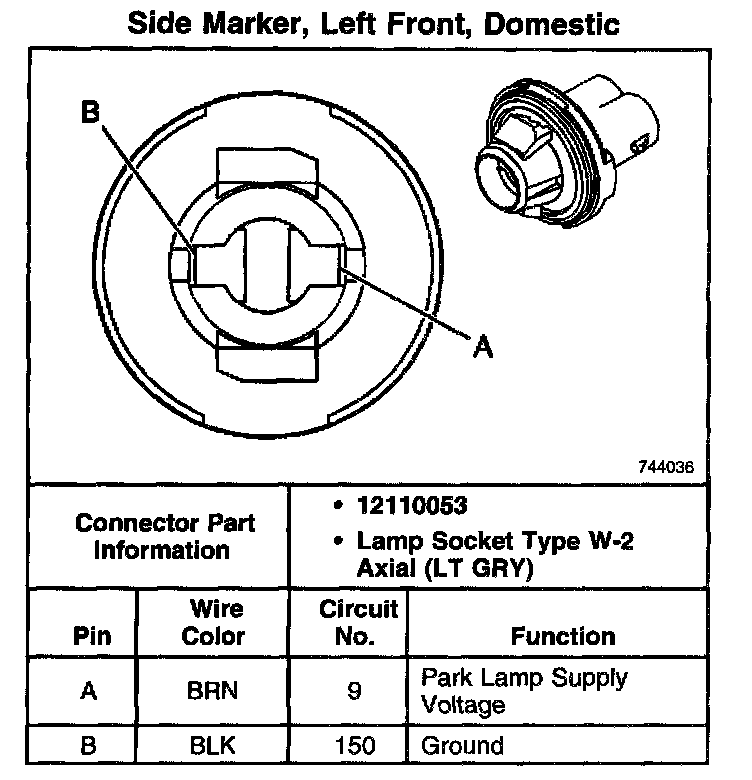

Side Marker, Left Front, Domestic:



Side Marker, Right Front, Domestic:
