C400 (W/O Keyless Entry)
C400 (W/O Keyless Entry)

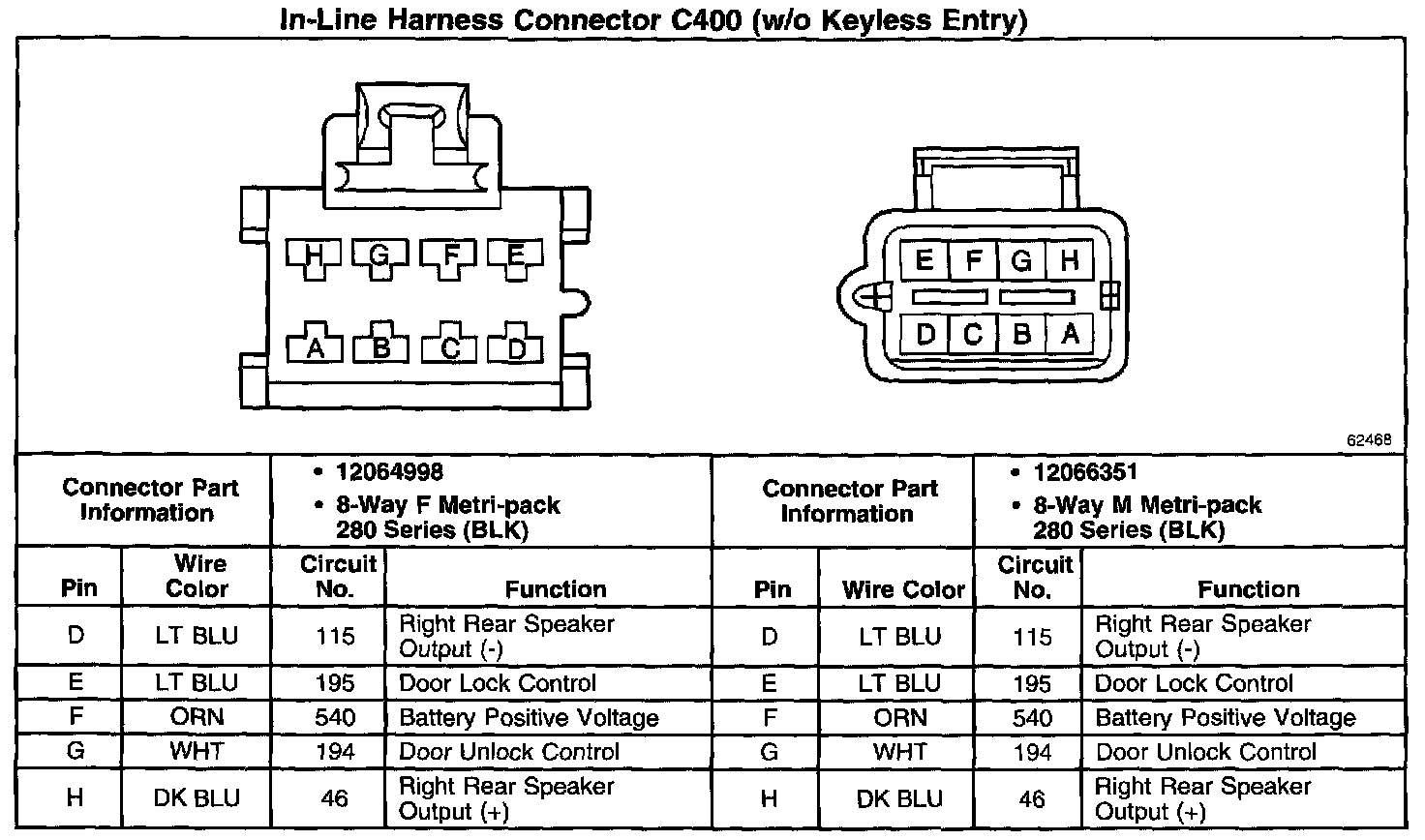

In-Line Harness Connector C400 (W/O Keyless Entry) (Part 1 Of 2):

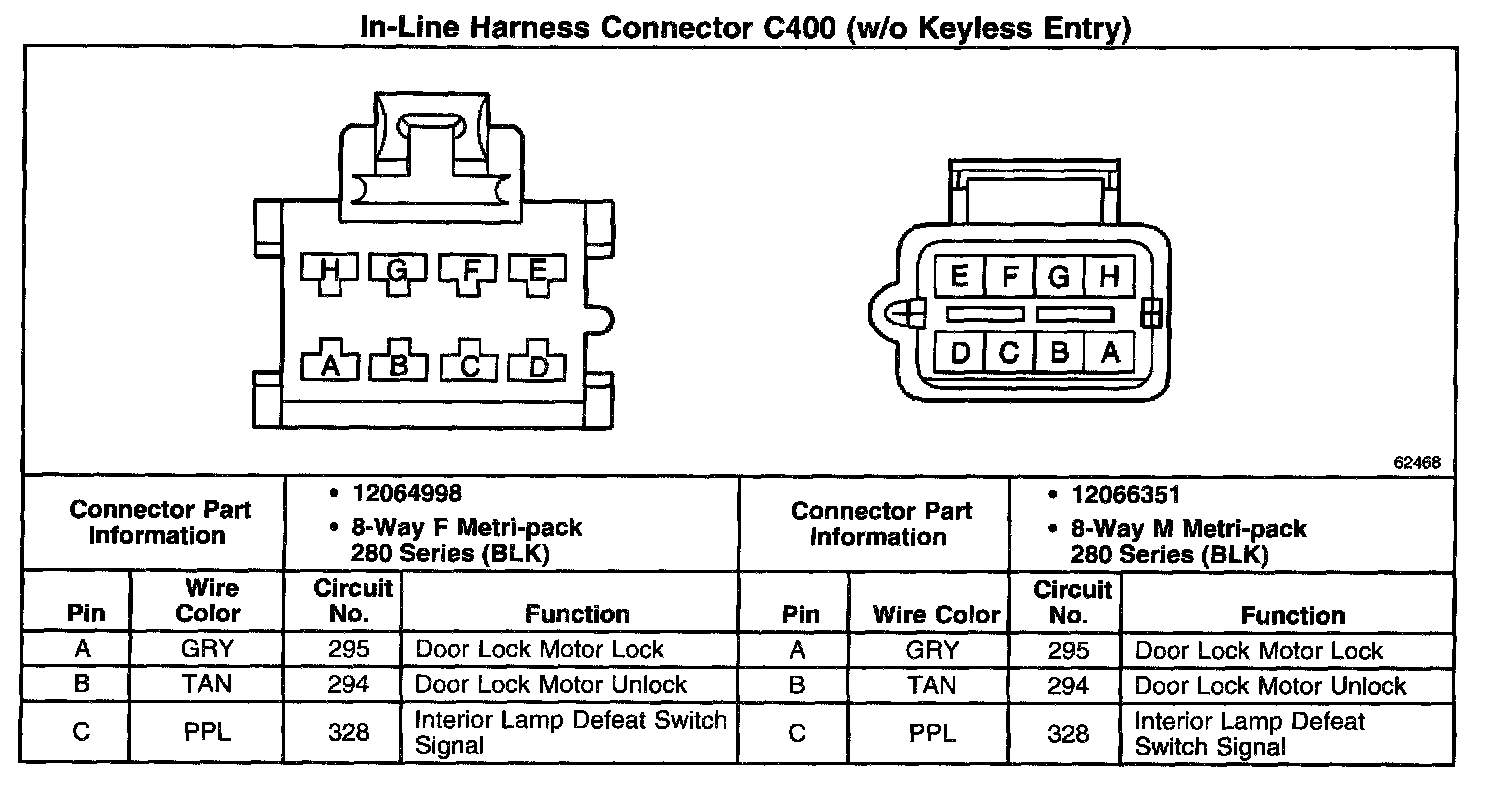

In-Line Harness Connector C400 (W/O Keyless Entry) (Part 2 Of 2):
