Headlights DRL, Interior Lights
Headlights DRL, Interior Lights

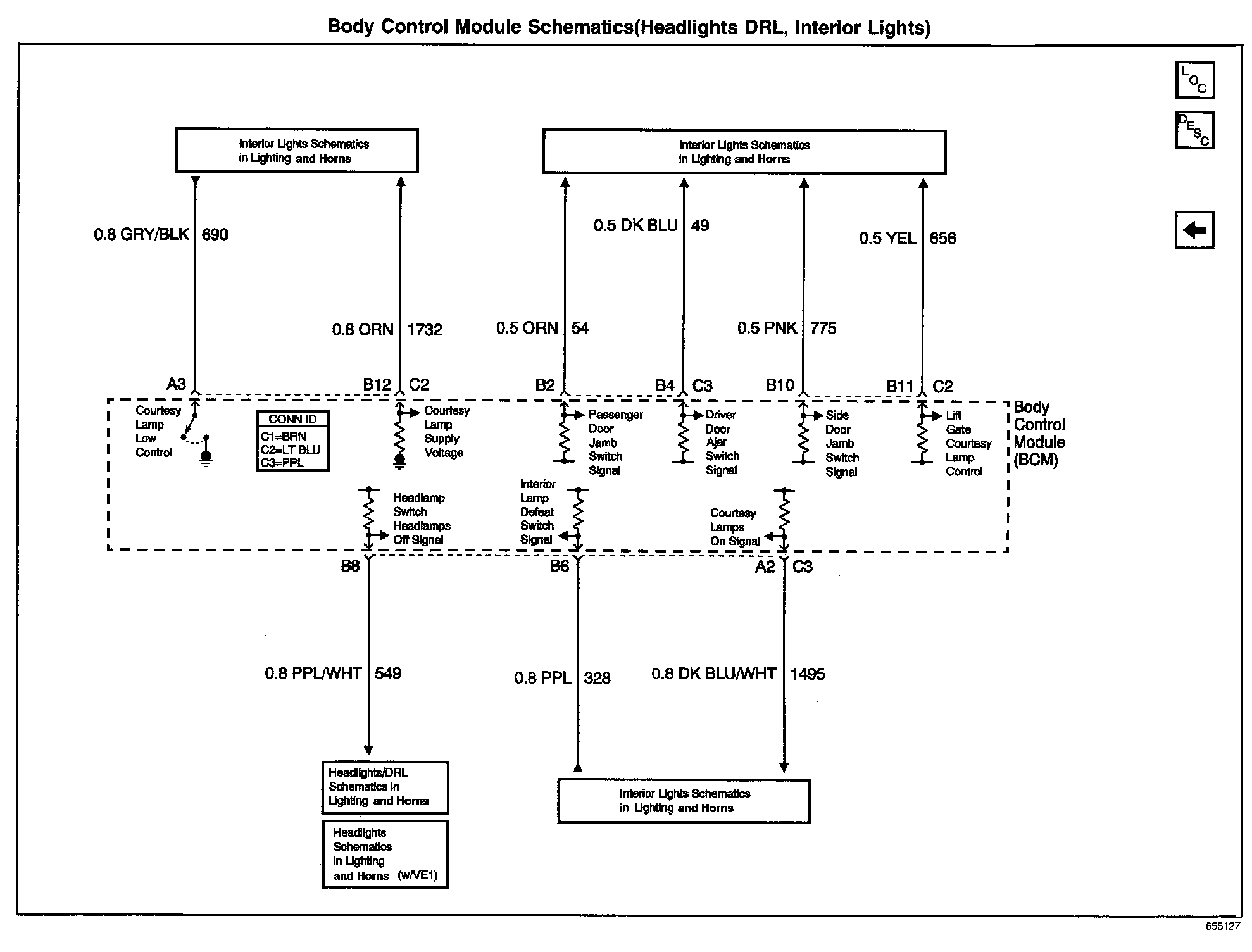

Body Control Module Schematics: Headlights DRL, Interior Lights:
